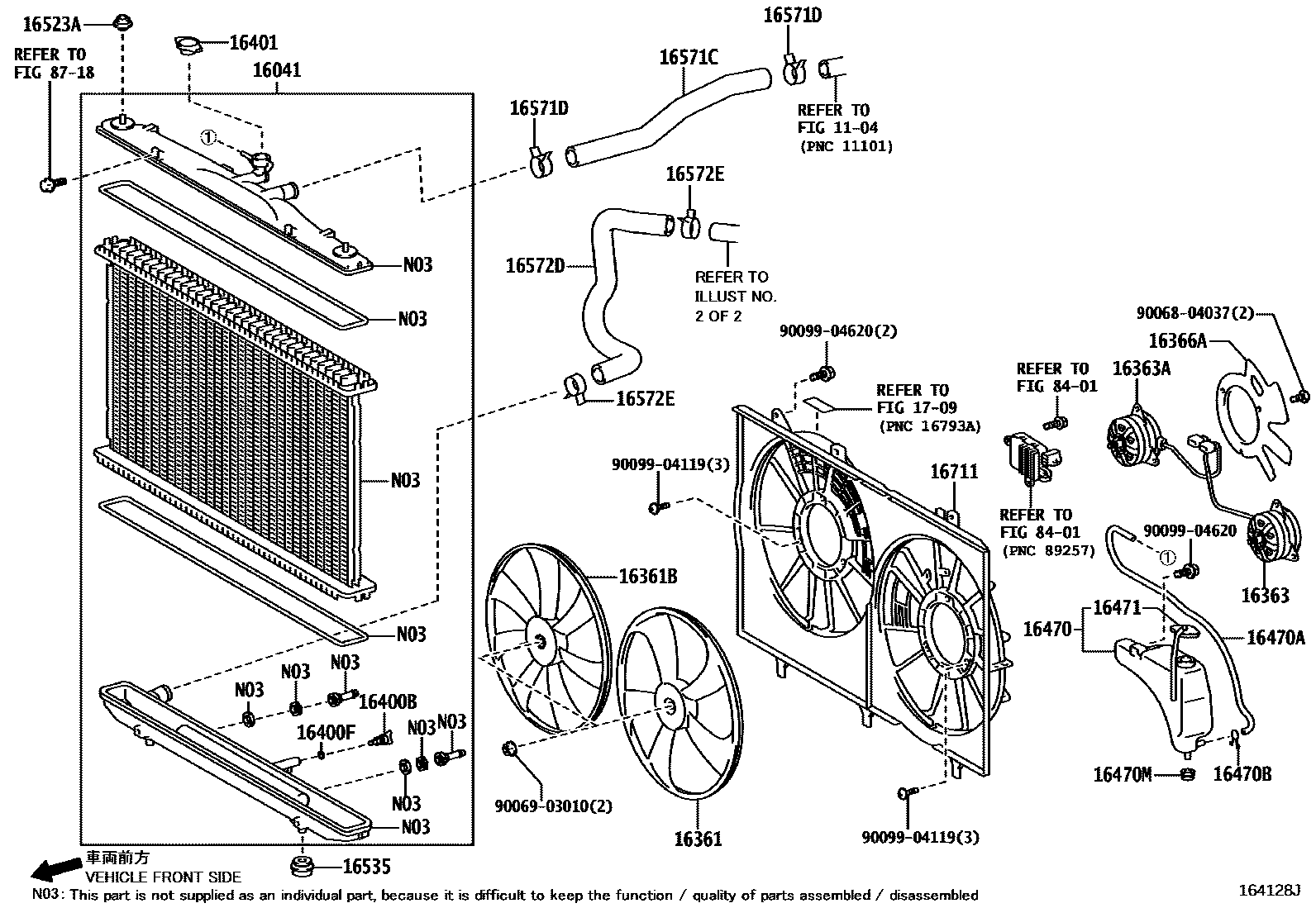

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1104

16041RADIATOR ASSY, NO.2

main16041-0P260i2GRFE..GSL3#201109-201409

main16041-0P280i2GRFKS..GSL3#201608-201711

16361FAN

main16361-0P150i1ARFE..ASL30201109-201308

16361BFAN, NO.2

main16361-0P160i2GRFE..GSL3#201409-201608

16363MOTOR, COOLING FAN

main16363-0P250i2GRFE..GSL3#201409-201608

sub16363-31330

main16363-0V120i1ARFE..ASL30201109-201308

16363AMOTOR, COOLING FAN, NO.2

main16363-0P100i2GRFE..GSL3#201409-201608

sub16363-31160

main16363-0V110i1ARFE..ASL30201109-201308

16366AINSULATOR, COOLING FAN MOTOR

main16366-0V100i1ARFE..ASL30201109-201308

16400RADIATOR ASSY

main16400-0P300i2GRFE..GSL3#201409-201608

main16400-0P370i2GRFKS..GSL3#201608-201711

main16400-0P371i2GRFKS..GSL3#201711-201807

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1ARFE..ASL30201109-201308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFE..GSL3#201109-201409

16401CAP SUB-ASSY, RADIATOR

main16401-31480i1ARFE..ASL30201109-201308

main16401-31830i2GRFKS..GSL3#201711-202009

16470TANK ASSY, RADIATOR RESERVE

main16470-0P040i1ARFE..ASL30201109-201308

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0P090i1ARFE..ASL30201109-201308

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90068-35004i2GRFKS..GSL3#201608-201711

16470MGROMMET

main90480-17028i1ARFE..ASL30201109-201308

16471CAP SUB-ASSY, RESERVE TANK

main16405-0P040i1ARFE..ASL30201109-201308

16523ACUSHION, RADIATOR SUPPORT

main16523-AD010×2i1ARFE..ASL30201109-201308

16535SUPPORT, RADIATOR, LOWER

main16535-20030×2i2GRFE..GSL3#201109-201409

main16535-28030×2i1ARFE..ASL30201109-201308

16571CHOSE, RADIATOR, NO.1

main16571-0P230i2GRFE..GSL3#201109-201409

main16571-0P400i2GRFKS..GSL3#201608-201711

main16571-0V050i1ARFE..ASL30201109-201308

16571DCLIP, RADIATOR HOSE, NO.1

main90466-A0020×2i1ARFE..ASL30201109-201308

16572DHOSE, RADIATOR, NO.2

main16572-0P240i2GRFE..GSL3#201109-201409

main16572-0P400i2GRFKS..GSL3#201608-201711

main16572-0V050i1ARFE..ASL30201109-201308

16572ECLIP, RADIATOR HOSE, NO.2

main90466-A0020×2i1ARFE..ASL30201109-201308

16711SHROUD, FAN

main16711-0P150i2GRFE..GSL3#201109-201409

main16711-0P400i2GRFKS..GSL3#201608-201711

main16711-0V090i1ARFE..ASL30201109-201308

1709

8401

8718

9006804037

main90068-04037

9006903010

main90069-03010

9009904119

main90099-04119

9009904620

main90099-04620

30 parts on this diagram · 7 diagrams in section
