WATER PUMP

0001 1 0002 1 0003 1

1603

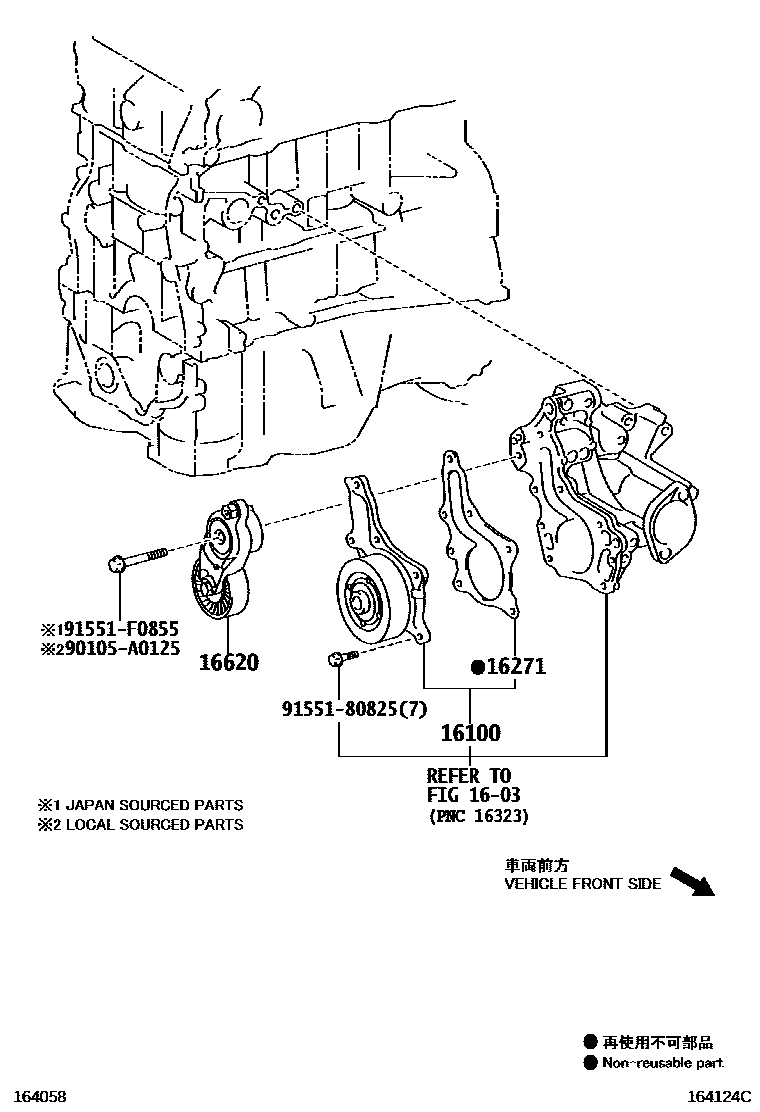

16100PUMP ASSY, ENGINE WATER

main16100-09441i2GRFE..GSL3#201109-201608

sub16100-09442

main16100-09515i1ARFE..ASL30201109-201308

(L),*212

main16100-09690i2GRFKS..GSL3#201608-202009

main16100-39515i1ARFE..ASL30201109-201308

*107,(J),*212

sub16100-39516

16271GASKET, WATER PUMP

main16271-0P010i2GRFE..GSL3#201109-201409

(L)

main16271-0P030i2GRFKS..GSL3#201608-202009

main16271-31030i2GRFE..GSL3#201312-201608

(J)

main16271-36010i1ARFE..ASL30201109-201308

*107,*212

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P010i2GRFKS..GSL3#201608-201707

main16620-0P030i2GRFKS..GSL3#201707-202009

main16620-0V020i1ARFE..ASL30201109-201305

(L),*212

sub16620-0V021

main16620-0V021i1ARFE..ASL30201305-201308

(L),*212

sub16620-0V022

main16620-31040i2GRFE..GSL3#201109-201608

main16620-36010i1ARFE..ASL30201109-201308

*107,(J),*212

sub16620-36011

90105A0125

main90105-A0125

9155180825

main91551-80825

91551F0855

main91551-F0855

7 parts on this diagram · 3 diagrams in section
