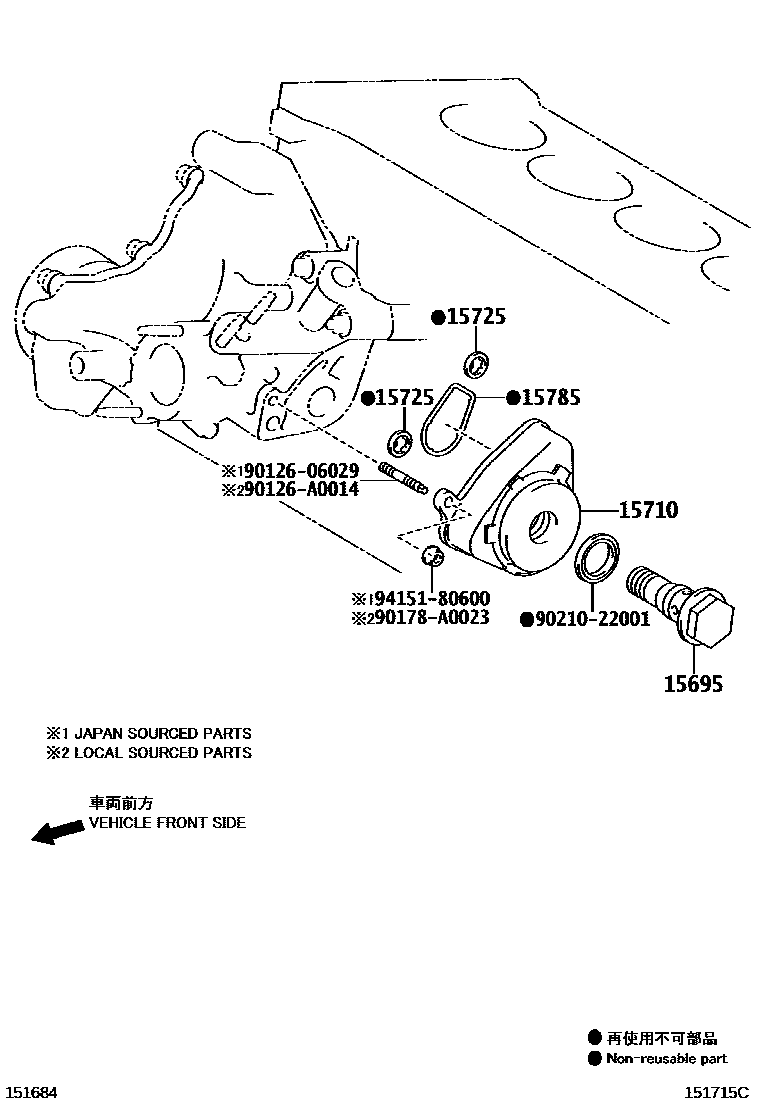

ENGINE OIL COOLER

0001 1 0002 1

15695BOLT, OIL COOLER UNION

main15695-62030i1ARFE..ASL30¥1,170201109-201308

*107,*212

15710COOLER ASSY, OIL

main15710-36010i1ARFE..ASL30¥32,900201109-201308

*107,*212

15725GASKET, OIL COOLER COVER

main15725-36010i1ARFE..ASL30¥380201109-201308

*107,*212

15785GASKET, OIL COOLER

main15785-36010i1ARFE..ASL30¥380201109-201308

*107,*212

9012606029

main90126-06029¥60

90126A0014

main90126-A0014

90178A0023

main90178-A0023

9021022001

main90210-22001

9415180600

main94151-80600¥60

9 parts on this diagram · 2 diagrams in section
