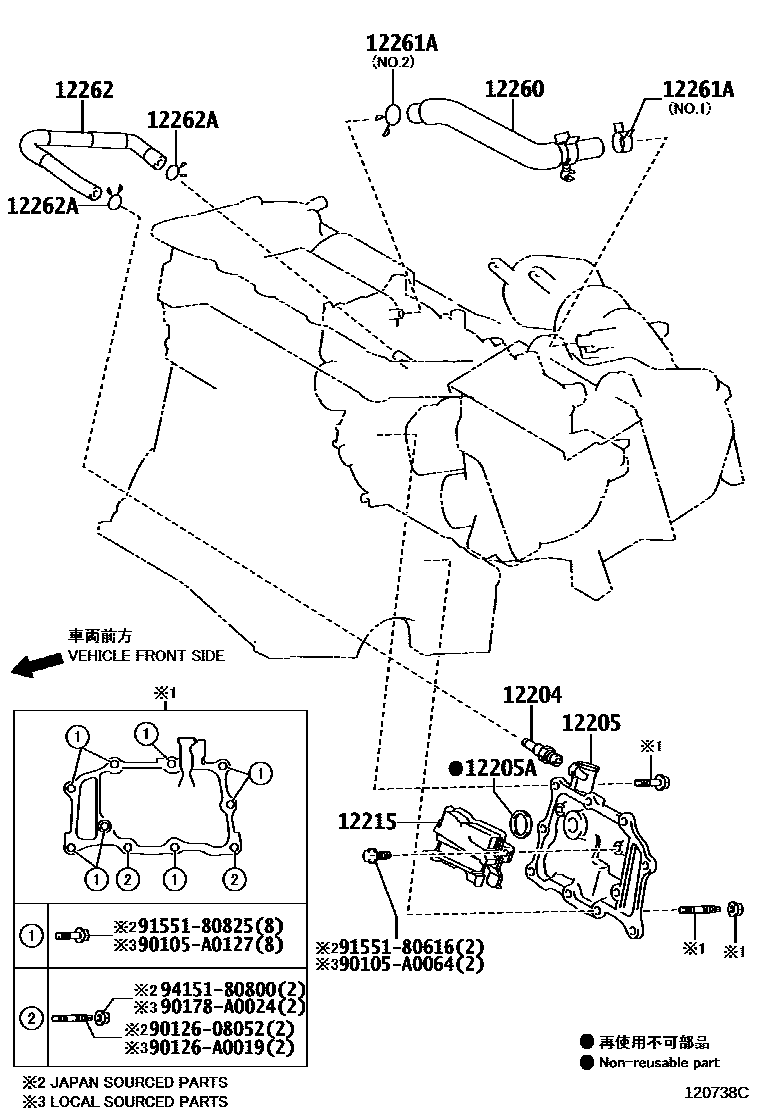

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
*107,*212
12205CASE SUB-ASSY, VENTILATION
*212
*107
12205ARING, O(FOR VENTILATION CASE)
*107,*212
12215SEPARATOR, CASE
*212
*107
12260HOSE ASSY, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1
NO.2
NO.2
NO.1:REFER ILLUST.
12262HOSE, VENTILATION, NO.2
*107,*212
12262ACLIP(FOR VENTILATION HOSE NO.2)
*107,*212
90105A0064
main90105-A0064
90105A0127
main90105-A0127
9012608052
main90126-08052
90126A0019
main90126-A0019
90178A0024
main90178-A0024
9155180616
main91551-80616
9155180825
main91551-80825
9415180800
main94151-80800
17 parts on this diagram · 3 diagrams in section
