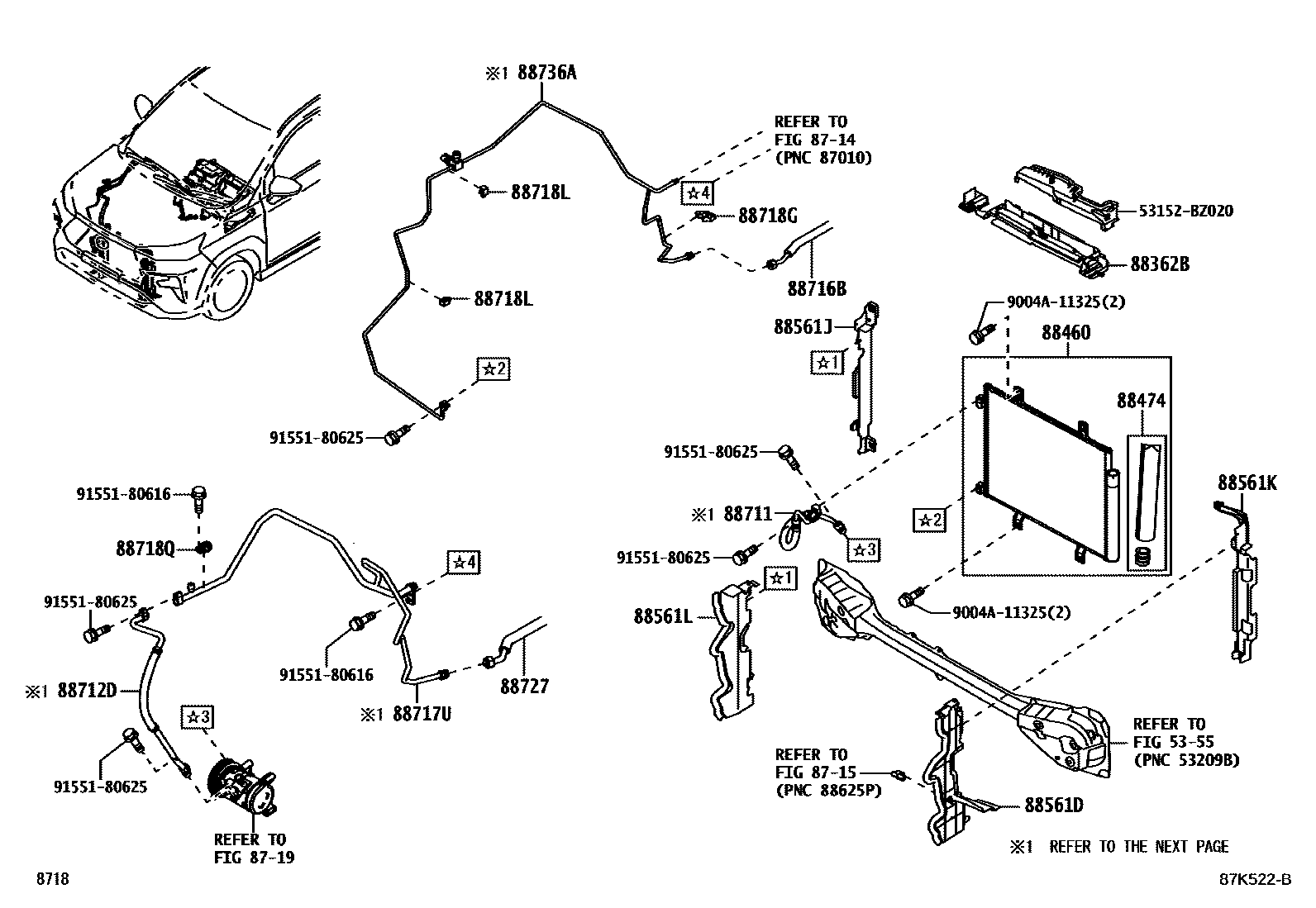

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1TUBE ASSY 0003 1REAR

5355

8714

8715

8719

88362BPLATE, SEAL

main88561-BZ430iW151202206

88460CONDENSER ASSY, COOLER

main88460-BZ340iW151202206

88474DRYER, COOLER

main88474-B2010iW151202206

88561DGRILLE, AIR INLET NO.3

main88561-BZ850iW151202206

88561JGRILLE, AIR INLET NO.1

main88561-BZ760iW151202206

88561KGRILLE, AIR INLET NO.2

main88561-BZ780iW151202206

88561LGRILLE, AIR INLET NO.4

main88561-BZ820iW151202206

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ830iW151202206

88712DHOSE, SUCTION

main88712-BZA00iW151202206

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-BZG60iW151202206

88717UTUBE, SUCTION, NO.1

main88717-BZ540iW151202206

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-BZ880iW151202206

88718LCLAMP, PIPING

main88718-13060iW151202206

88718QCLAMP, PIPING

main88718-BZ860iW151202206

88727TUBE, SUCTION, NO.2

main88717-BZ550iW151202206

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-BZG50iW151202206

53152BZ020HINGE, RADIATOR COVER SUPPORT

main53152-BZ020

9004A11325

main9004A-11325

9155180616

main91551-80616

9155180625

main91551-80625

24 parts on this diagram · 3 diagrams in section
