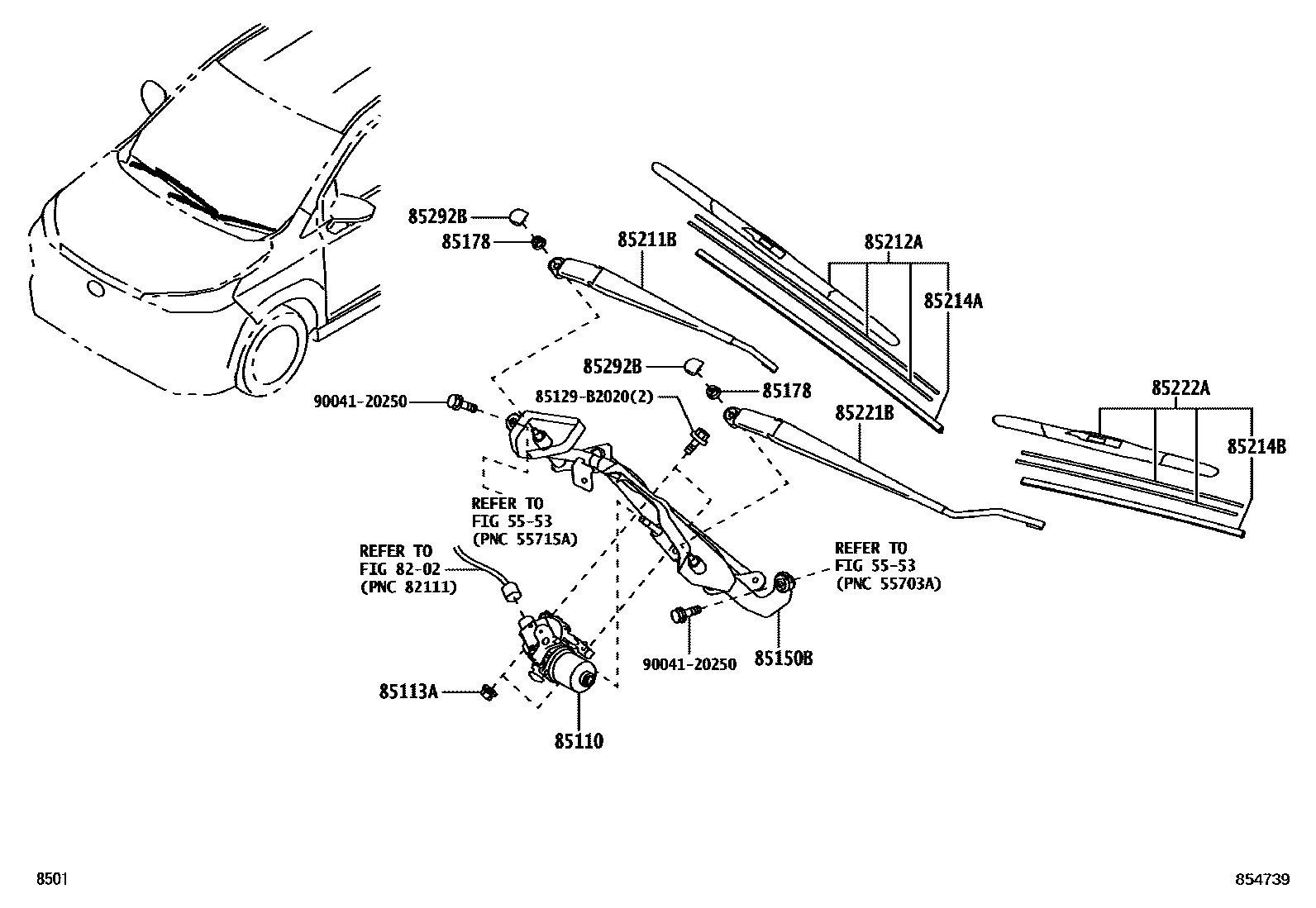

WINDSHIELD WIPER

5553

8202

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ300iW151202206

85113ANUT, FR WIPER

main85113-B2010iW151202206

85150BLINK ASSY, WIPER

main85150-BZ340iW151202206

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iW151202206-202306

main90041-79379iW151202307

85211BARM, FRONT WIPER, RH

main85211-BZ360iW151202206

85212ABLADE, FR WIPER, RH

main85212-BZ350iW151202206

85214ARUBBER, WIPER, RH

main85214-BZ460iW151202206

85214BRUBBER, WIPER, LH

main85214-B1070iW151202206

85221BARM, FRONT WIPER, LH

main85221-BZ360iW151202206

85222ABLADE, FR WIPER, LH

main85222-BZ360iW151202206

85292BCAP, FRONT WIPER ARM HEAD

main85292-BZ020iW151202206

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

9004120250

main90041-20250

15 parts on this diagram · 1 diagram in section
