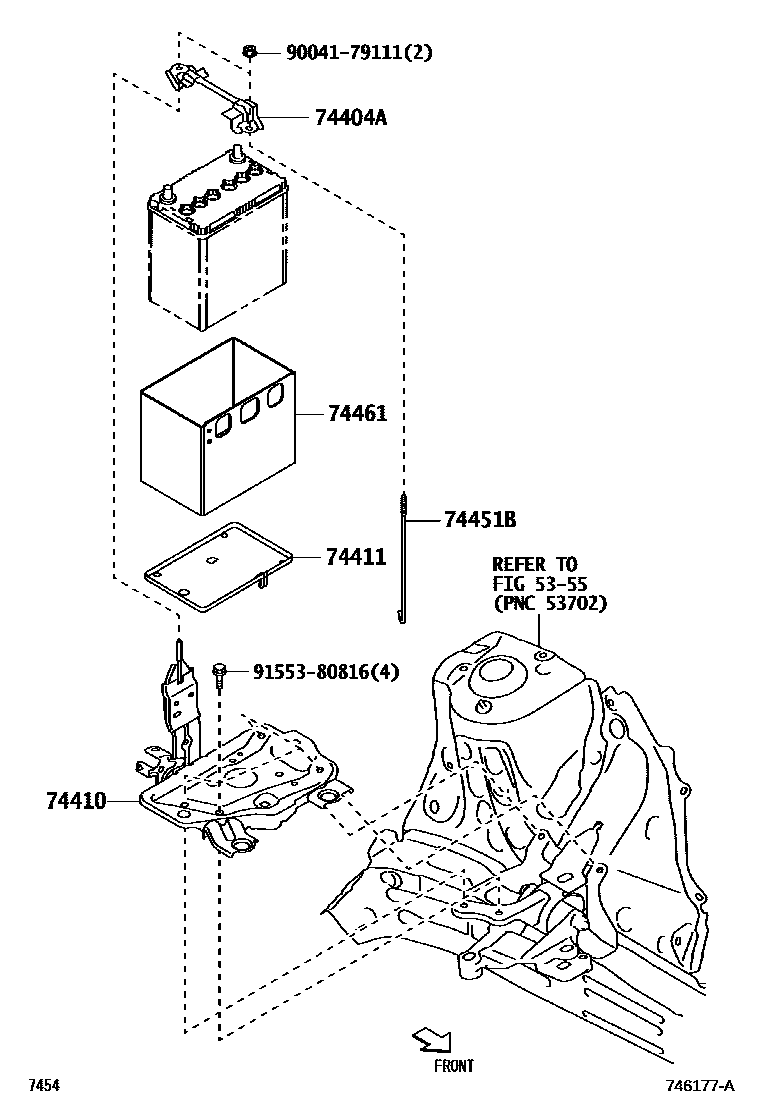

BATTERY CARRIER

5355

74404ACLAMP SUB-ASSY, BATTERY

main74404-BZ190iW151202206

74410CARRIER ASSY, BATTERY

main74410-BZ080iW151202206

74411CARRIER, BATTERY

main74411-BZ160iW151202206

74451BBOLT, BATTERY CLAMP

main74451-BZ150iW151202206

74461COVER, BATTERY

main74405-BZ100iW151202206

9004179111

main90041-79111

9155380816

main91553-80816

8 parts on this diagram · 1 diagram in section
