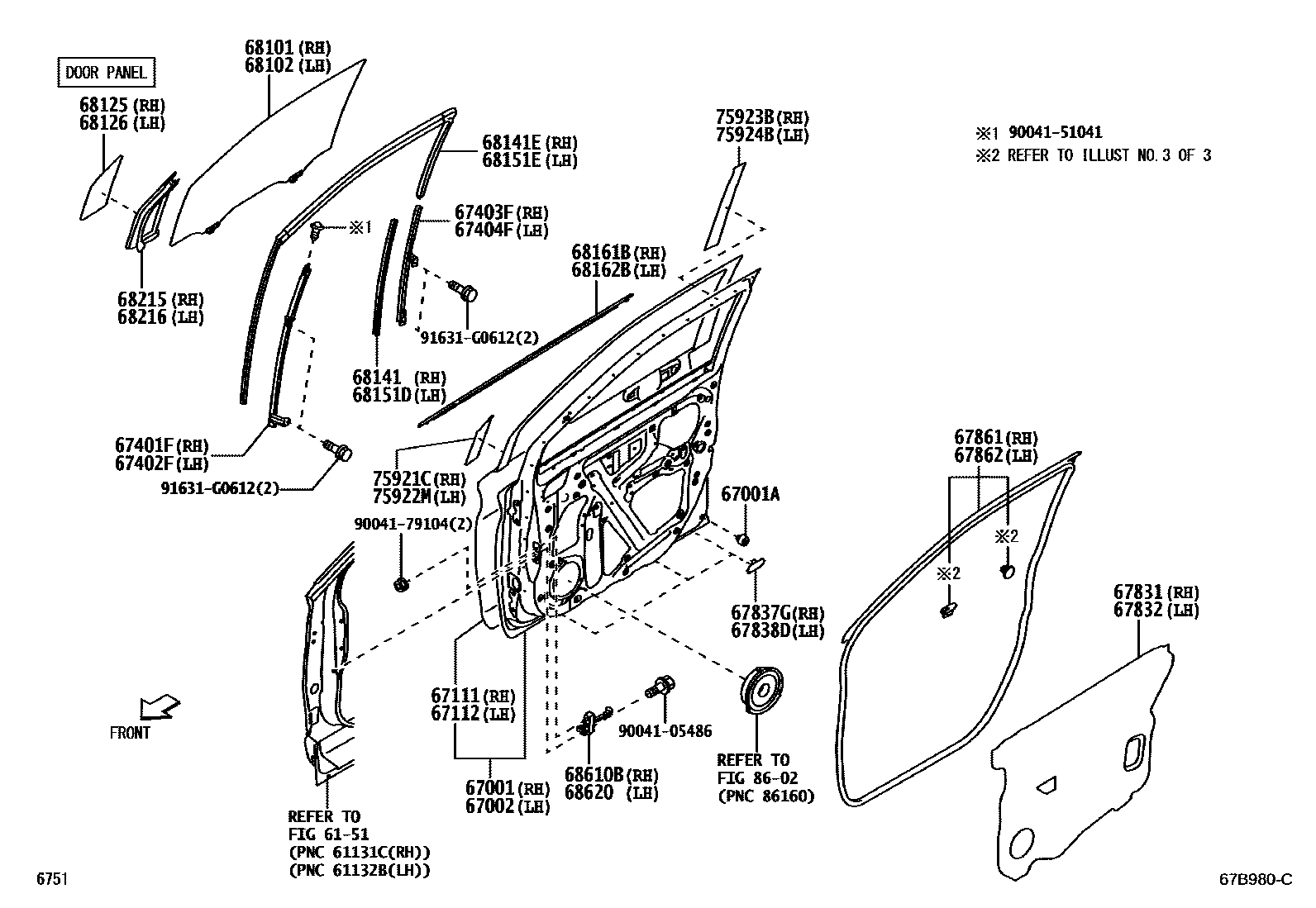

FRONT DOOR PANEL & GLASS
6151
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837GSEAL, FRONT DOOR VENT, RH
67838DSEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141RUN, FRONT DOOR GLASS
68151DRUN, FRONT DOOR GLASS, LH
68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
75922MTAPE, BLACK OUT, NO.1 LH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
75923BTAPE, BLACK OUT, NO.2 RH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
75924BTAPE, BLACK OUT, NO.2 LH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
8602
9004105486
main90041-05486
9004151041
main90041-51041
9004179104
main90041-79104
91631G0612
main91631-G0612
39 parts on this diagram · 3 diagrams in section
