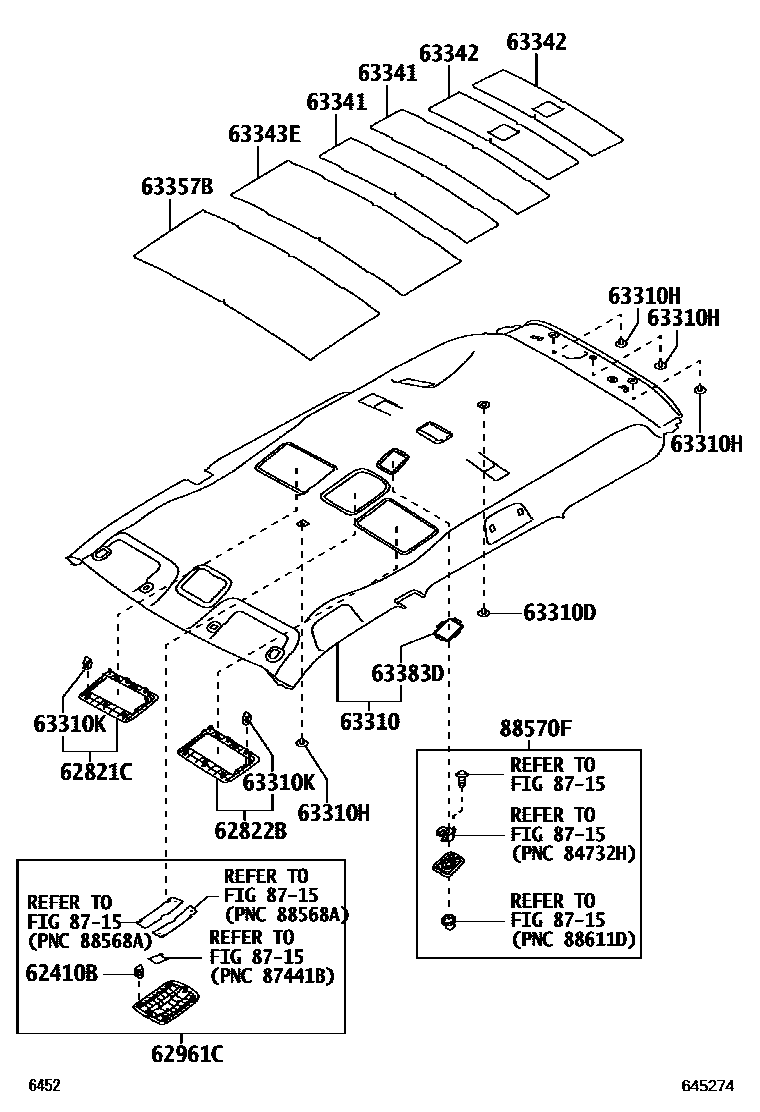

ROOF HEADLINING & SILENCER PAD
62410BCLIP
62821CGRILLE, ROOM VENTILATION, RH
LT.GRAY,TRIM2#
62822BGRILLE, ROOM VENTILATION, LH
LT.GRAY,TRIM2#
62961CGRILLE, ROOM VENT
LT.GRAY,TRIM2#
63310HEADLINING ASSY, ROOF
LIGHT GRAY,TRIM2#
63310DCLIP, ROOF HEADLINING
63310HCLIP(FOR ROOF HEADLINING)
LT.GRAY,TRIM2#
63310KCLIP
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343EPAD, ROOF SILENCER, NO.3
63357BSILENCER, ROOF
63383DRETAINER, ROOF HEADLINING, REAR
8715
88570FGRILLE ASSY, AIR OUTLET
LT.GRAY,TRIM2#
15 parts on this diagram · 1 diagram in section
