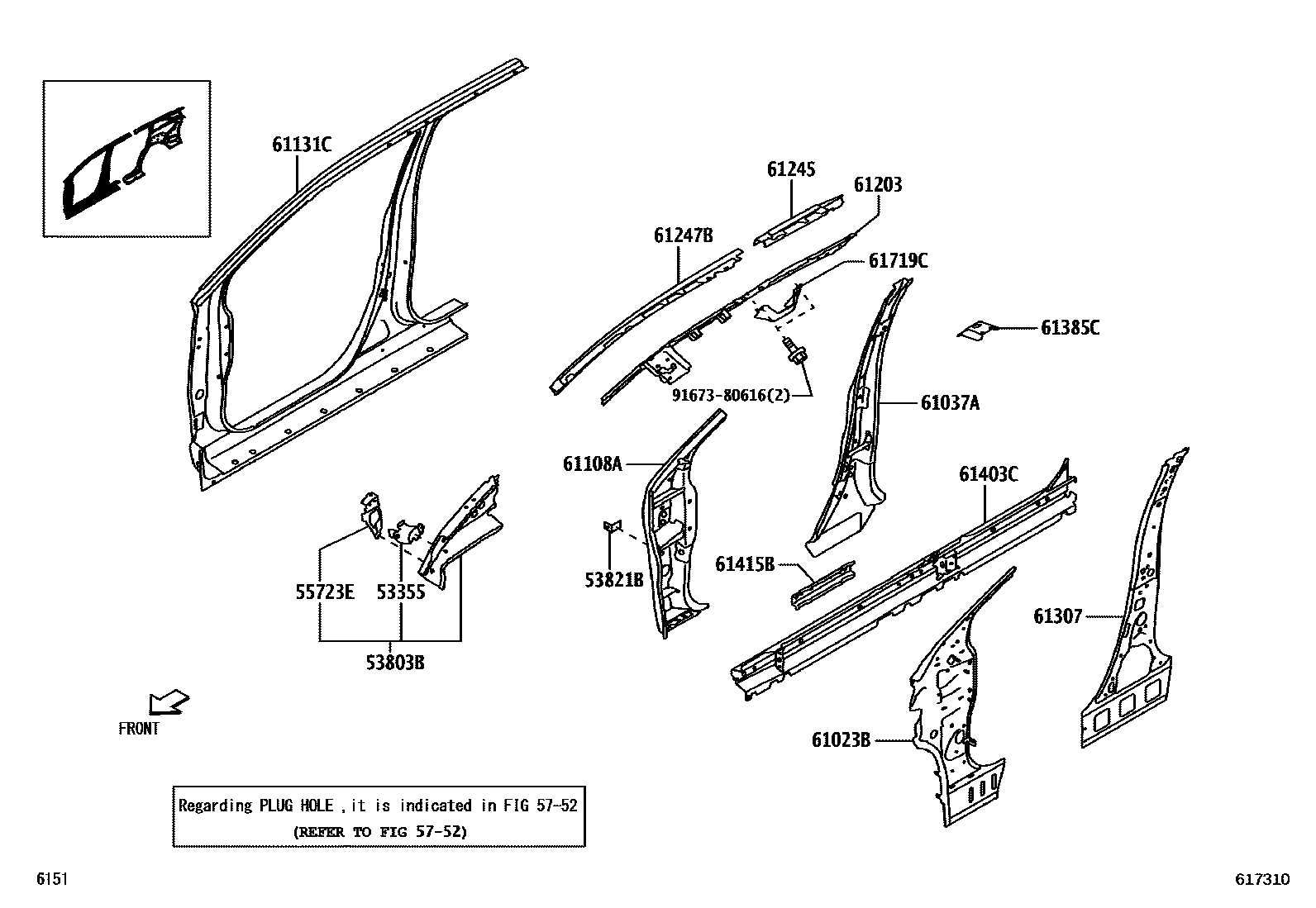

SIDE MEMBER

0001 1FRONT,RH 0002 1REAR,RH 0003 1FRONT,LH 0004 1REAR,LH 0005 1CUT DIMENSIONS

53355GUSSET, HOOD REINFORCEMENT, RH

main53415-BZ060iW151202206

53803BBRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-BZ130iW151202206

53821BBRACKET, FRONT FENDER, REAR RH

main58139-BZ070iW151202206

55723EGUSSET, FRONT PANEL, RH

main53717-BZ200iW151202206

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ460iW151202206

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ410iW151202206

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-BZ240iW151202206

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ590iW151202206

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-BZ130iW151202206

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-BZ060iW151202206

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-BZ140iW151202206

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-BZ130iW151202206

61385CEXTENSION, CENTER BODY PILLAR, UPPER RH

main61385-BZ060iW151202206

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-BZ160iW151202206

61415BEXTENSION, ROCKER, OUTER RH

main61415-BZ040iW151202206

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-BZ070iW151202206

9167380616

main91673-80616¥60

18 parts on this diagram · 5 diagrams in section
