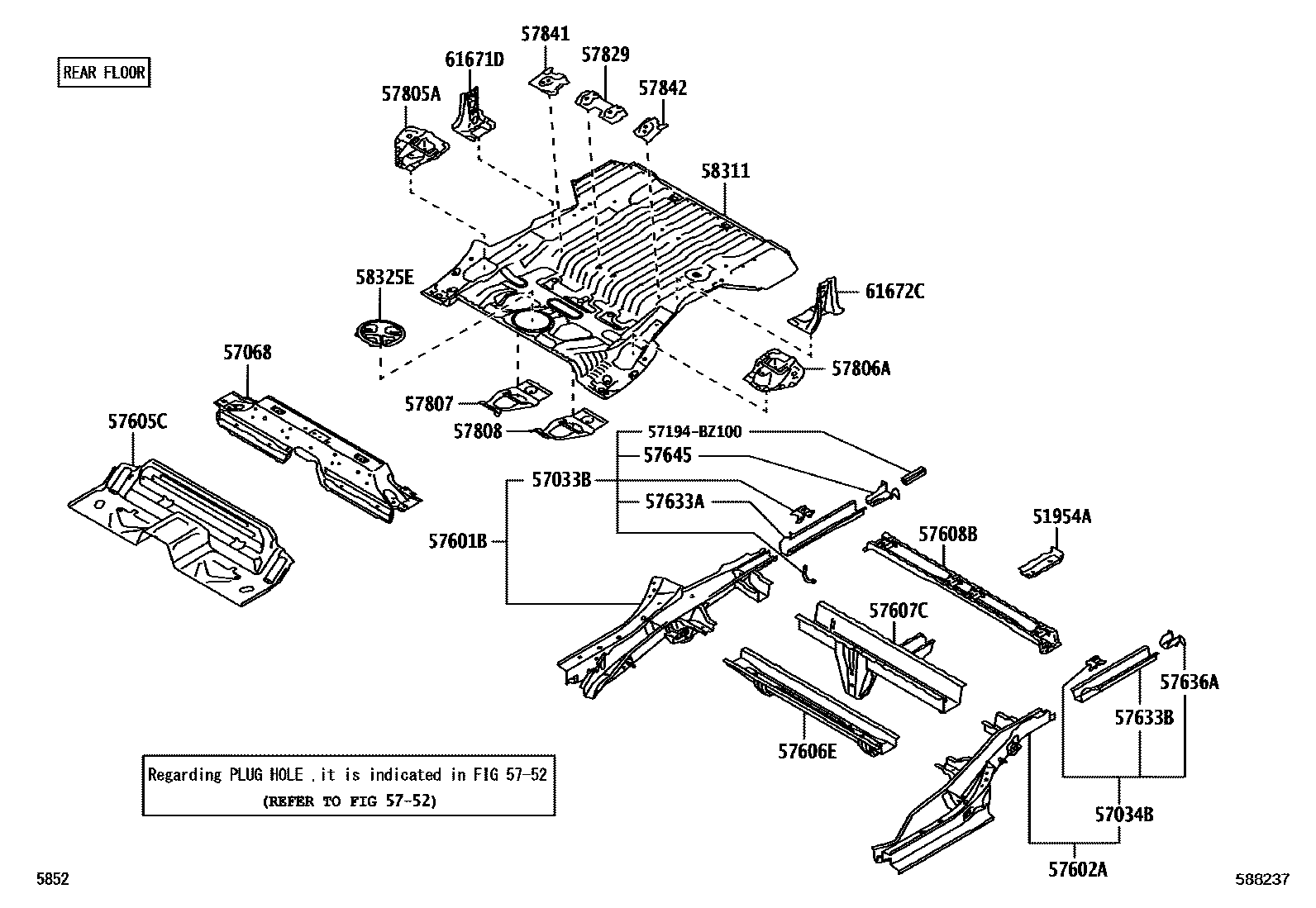

REAR FLOOR PANEL & REAR FLOOR MEMBER

51954ARETAINER, SPARE WHEEL CARRIER

main51989-BZ010i202206

57033BBRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 RH

main57033-BZ070i202206

57034BBRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 LH

main57034-BZ050i202206

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-BZ140i202206

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-BZ580i202206

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-BZ540i202206

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-BZ210i202206

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-BZ270i202206

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-BZ100i202206

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-BZ220i202206

57633AEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH

main57633-BZ080i202206

57633BEXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57634-BZ070i202206

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57646-BZ100i202206

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-BZ150i202206

57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-BZ110i202206

57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2

main57806-BZ080i202206

57807REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.3

main57807-BZ060i202206

57808REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.4

main57808-BZ020i202206

57829REINFORCEMENT, SEAT LEG

main57829-BZ010i202206

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-BZ090i202206

57842REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH

main57842-BZ010i202206

58311PAN, REAR FLOOR

main58311-BZ440i202206

sub58311-BZ630

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-BZ110i202206

61671DREINFORCEMENT, QUARTER WHEEL HOUSE, RH

main61673-BZ020i202206

61672CREINFORCEMENT, QUARTER WHEEL HOUSE, LH

main61674-BZ020i202206

57194BZ100EXTENSION, FRONT SIDE MEMBER, FRONT INNER LH

main57194-BZ100

27 parts on this diagram · 2 diagrams in section
