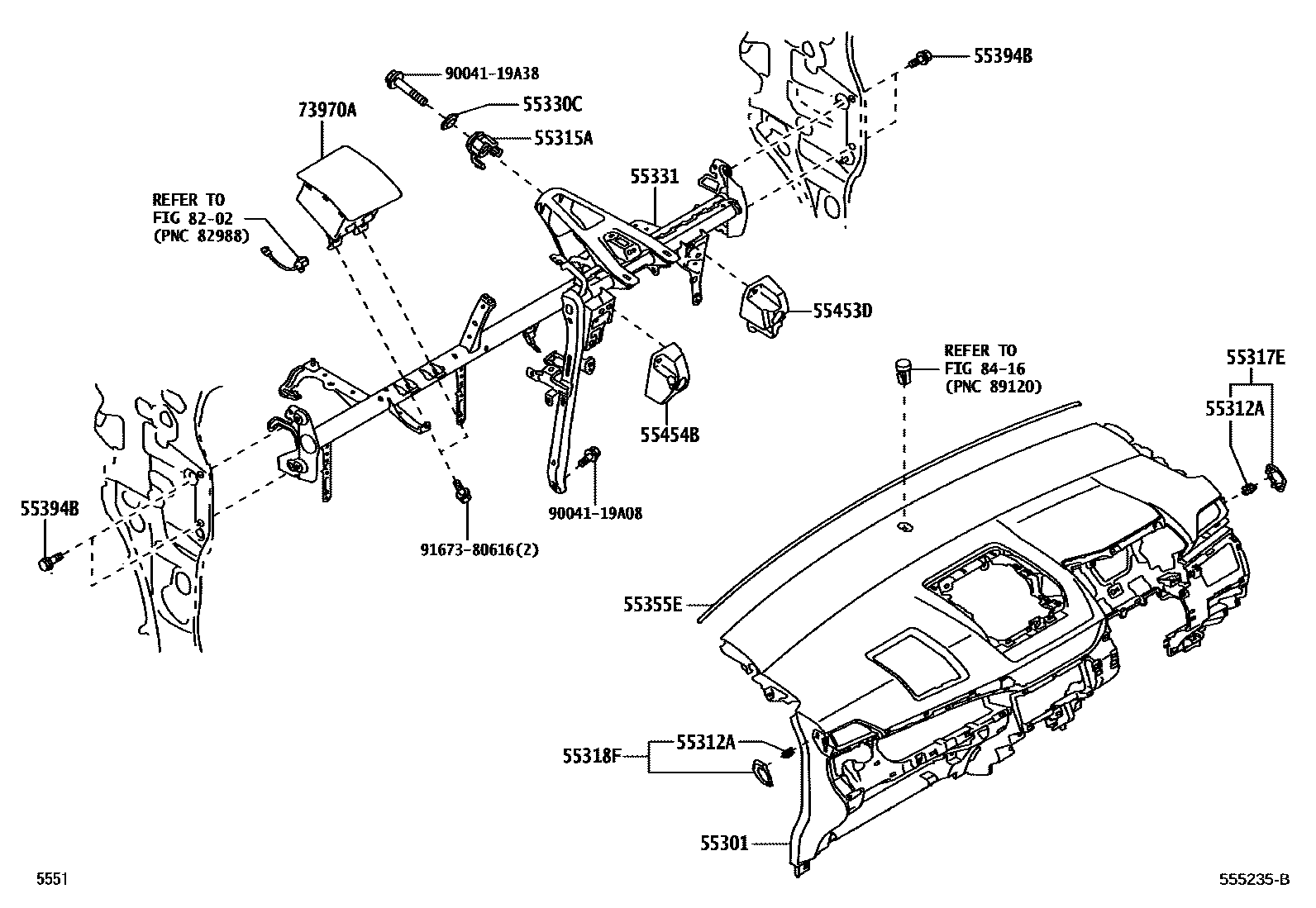

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZD50-C0iW151202206

BLACK,TRIM2#

55312ACLIP, INSTRUMENT PANEL

main90467-05171iW151¥60202206

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iW151¥420202206

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-BZ010-C0iW151202206

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-BZ020-C0iW151202206

BLACK,TRIM2#

55330CPLUG, HOLE(FOR INSTRUMENT PANEL)

main90048-71319iW151¥110202206

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZC00iW151202206

55355ECUSHION, INSTRUMENT PANEL

main55355-BZ190iW151202206

55394BBOLT, INSTRUMENT PANEL

main90041-19A09iW151¥170202206

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ140iW151202206

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ150iW151202206

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ360-C0iW151202206

BLACK,TRIM2#

8202

8416

9004119A08

main90041-19A08¥110

9004119A38

main90041-19A38¥210

9167380616

main91673-80616¥60

17 parts on this diagram · 5 diagrams in section
