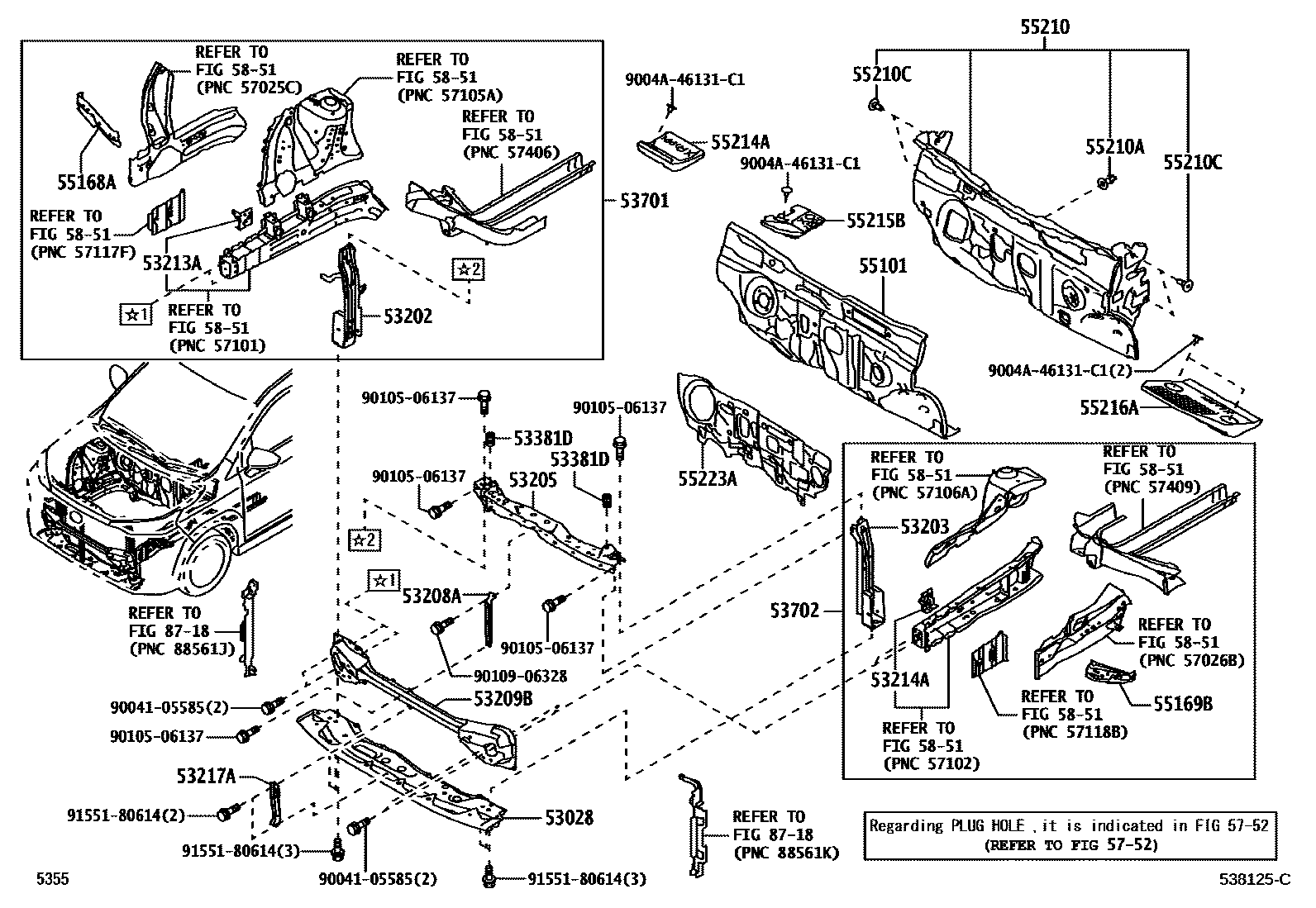

FRONT FENDER APRON & DASH PANEL
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
sub53205-BZ290
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53217ABRACE, HOOD LOCK SUPPORT
53381DBUMPER, HOOD TO FRONT SHROUD
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55210CCLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
5752
5851
8718
9004105585
main90041-05585
9004A46131C1
main9004A-46131C1
9010506137
main90105-06137
9010906328
main90109-06328
9155180614
main91551-80614
30 parts on this diagram · 1 diagram in section
