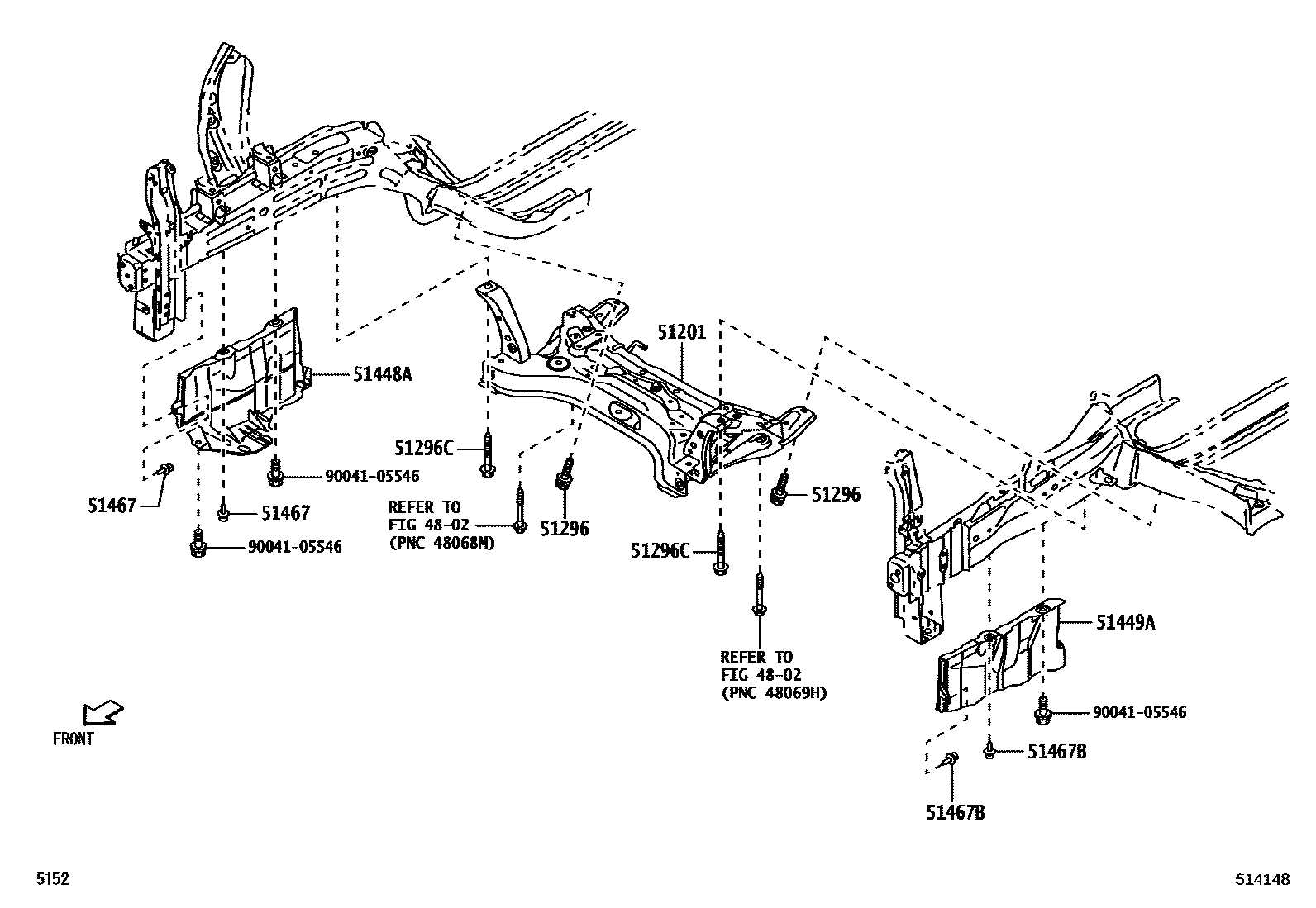

SUSPENSION CROSSMEMBER & UNDER COVER

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-BZ161iW151202206

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main91673-A1025iW151202206

M10,L=31

51296CBOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-05594iW151202206

M12,L=91

51448ACOVER, ENGINE SIDE UNDER, RH

main51441-BZ340iW151202206

51449ACOVER, ENGINE SIDE UNDER, LH

main51442-BZ150iW151202206

51467RETAINER, ENGINE UNDER COVER

main90044-68378iW151202206

51467BRETAINER, ENGINE UNDER COVER

main90044-68378iW151202206

9004105546

main90041-05546

9 parts on this diagram · 1 diagram in section
