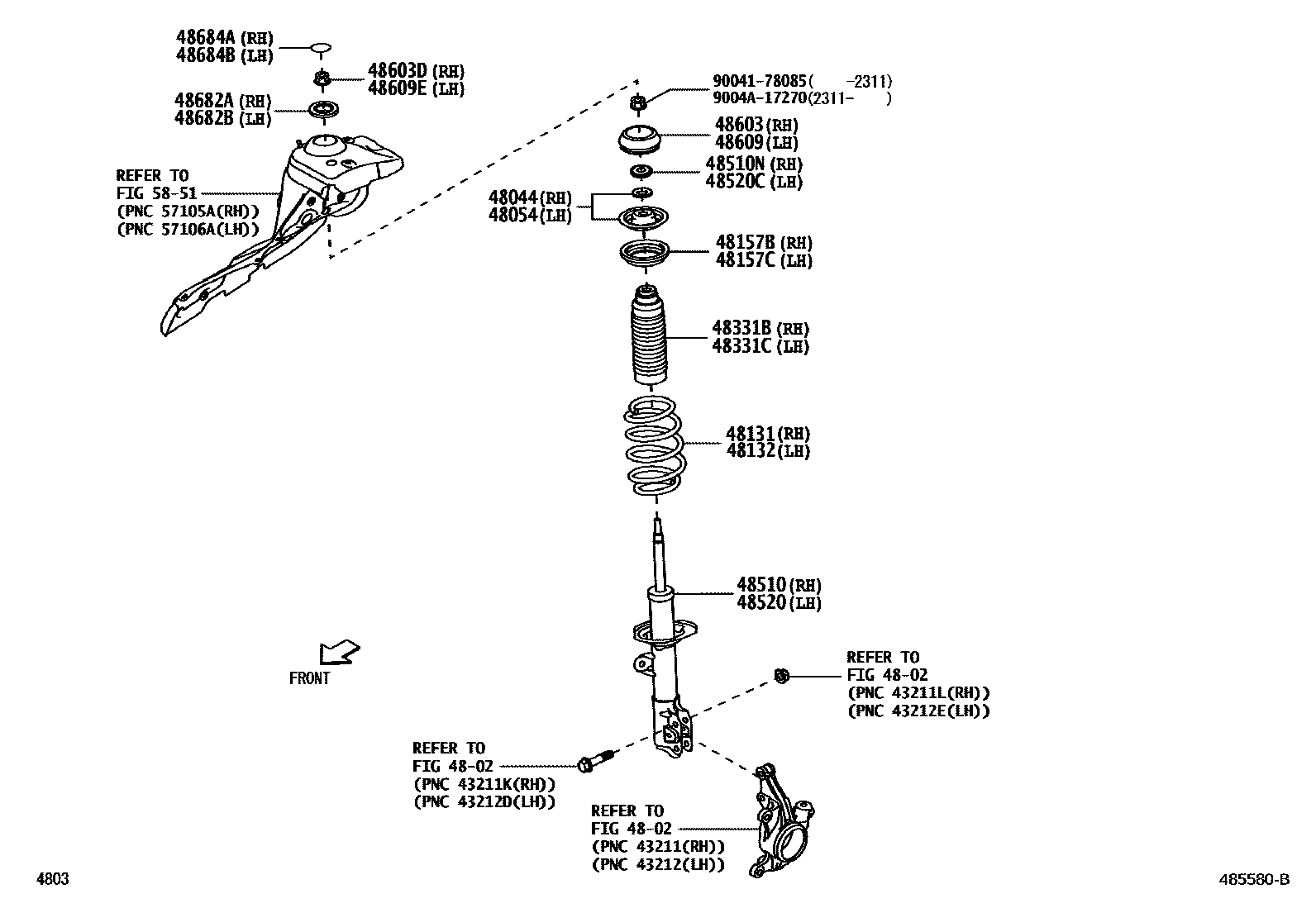

FRONT SPRING & SHOCK ABSORBER

0001 1SHOCK ABSORBER 0002 1STABILIZER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-BZ140iW151202206

48054SEAT SUB-ASSY, FRONT SPRING, NO.2

main48044-BZ140iW151202206

48131SPRING, FRONT COIL, RH

main48131-BZC00iW151202206

48132SPRING, FRONT COIL, LH

main48131-BZC00iW151202206

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-BZ080iW151202206

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-BZ080iW151202206

48331BBUMPER, FRONT SPRING, RH

main48331-BZ220iW151202206

48331CBUMPER, FRONT SPRING, LH

main48331-BZ220iW151202206

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-BZE70iW151202206

MARK 48510-BZE70

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90043-89155iW151202206

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-BZB00iW151202206

MARK 48520-BZB00

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90043-89155iW151202206

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-BZ170iW151202206

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90041-78085iW151202206-202311

main9004A-17270iW151202311

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-BZ170iW151202206

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90041-78085iW151202206-202311

main9004A-17270iW151202311

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-BZ010iW151202206

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-BZ010iW151202206

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-BZ070iW151202206

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-BZ070iW151202206

5851

9004178085

main90041-78085

9004A17270

main9004A-17270

24 parts on this diagram · 2 diagrams in section
