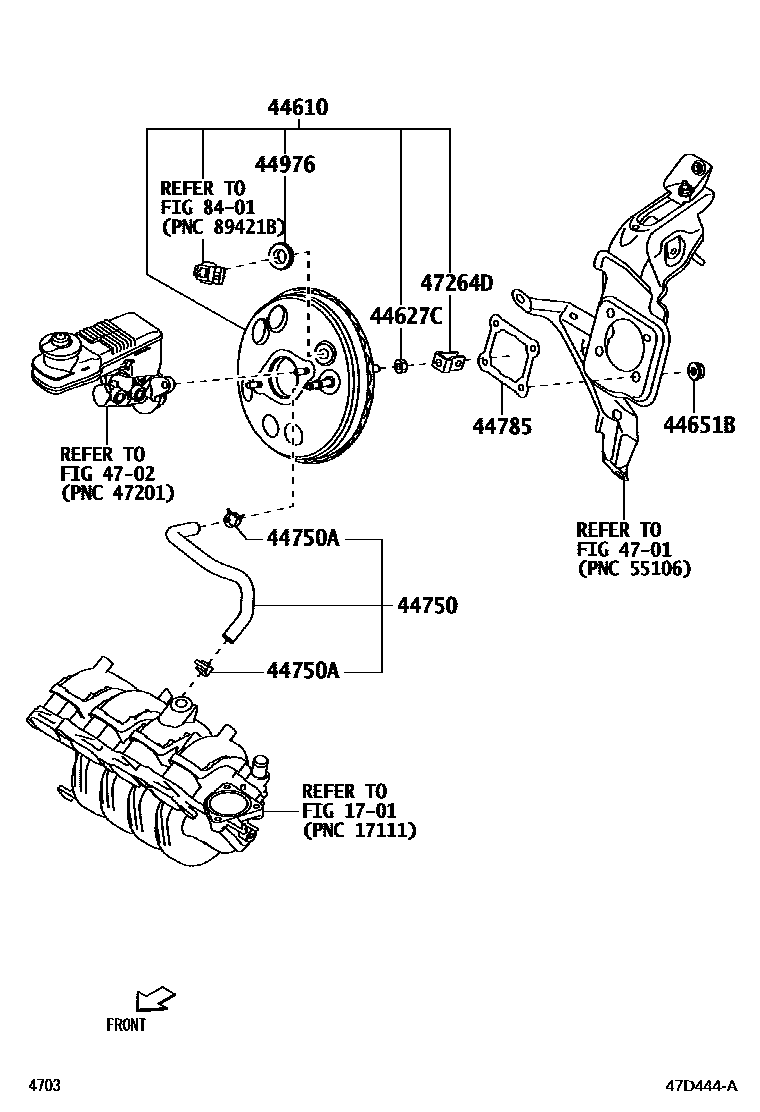

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-BZ730iW151202206

44627CNUT, BOOSTER SLEEVE CYLINDER

main9004A-17229iW151202206

44651BNUT, BOOSTER

main90041-79300iW151202206

44750HOSE ASSY, VACUUM

main44750-BZ510iW151202206

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iW151202206

44785GASKET, BRAKE BOOSTER

main47278-87Z01iW151202206

44976SEAL, BOOSTER

main44685-B2010iW151202206

4701

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ110iW151202206

8401

12 parts on this diagram · 1 diagram in section
