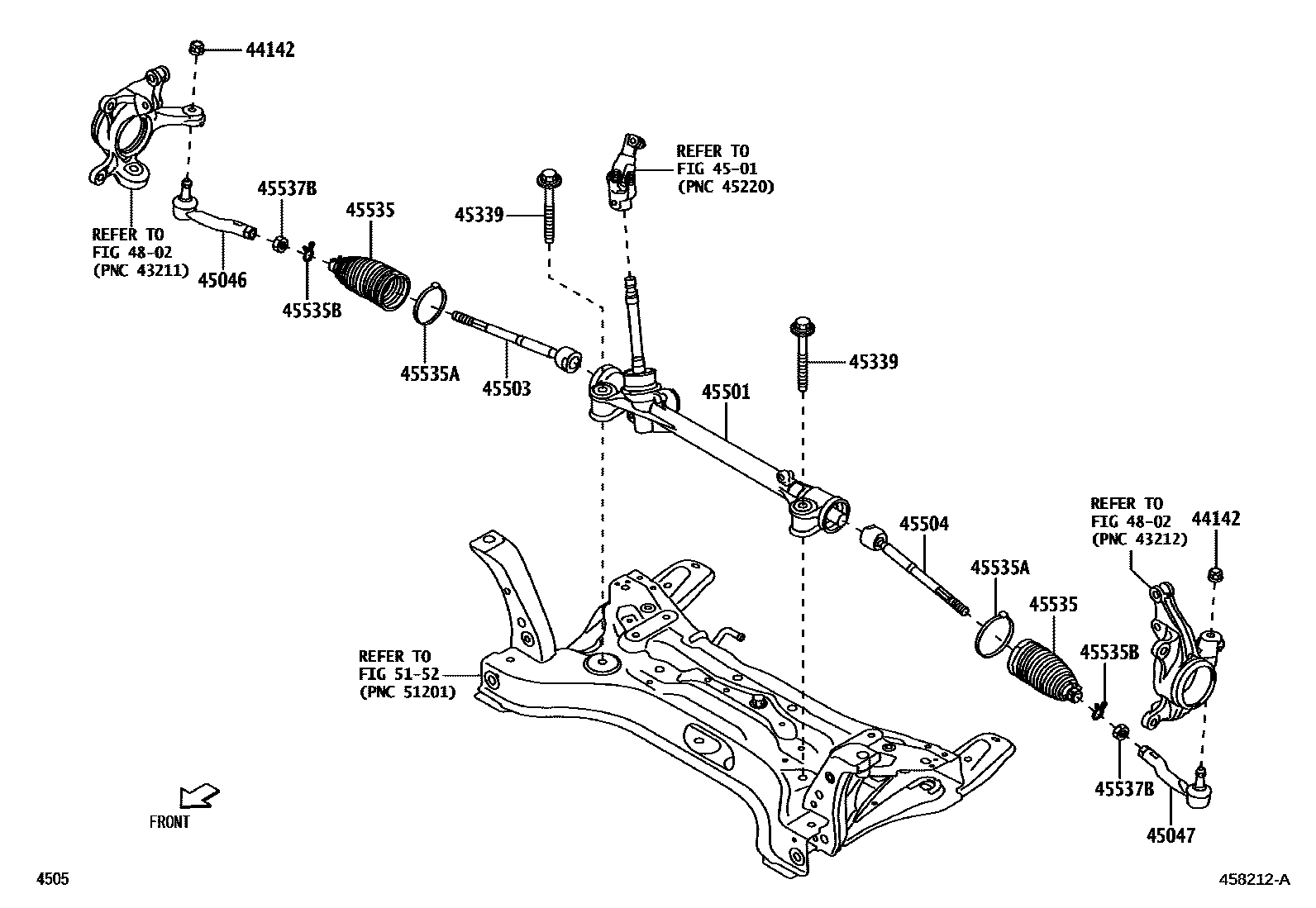

FRONT STEERING GEAR & LINK

44142NUT, LOCK

main90041-77011iW151202206

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ270iW151202206

45047END SUB-ASSY, TIE ROD, LH

main45047-BZ160iW151202206

45339BOLT, STEERING GEAR HOUSING

main90041-19A33iW151202206

45501HOUSING SUB-ASSY, STEERING RACK

main45501-BZ110iW151202206

45503END SUB-ASSY, STEERING RACK

main45503-BZ260iW151202206

RH

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-BZ260iW151202206

LH

45535BOOT, STEERING RACK, NO.1

main45535-BZ200iW151202206

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-BZ080iW151202206

45535BCLIP(FOR STEERING RACK BOOT)

main45537-BZ050iW151202206

45537BNUT, RACK END LOCK

main9004A-17145iW151202206

4802

5152

14 parts on this diagram · 1 diagram in section
