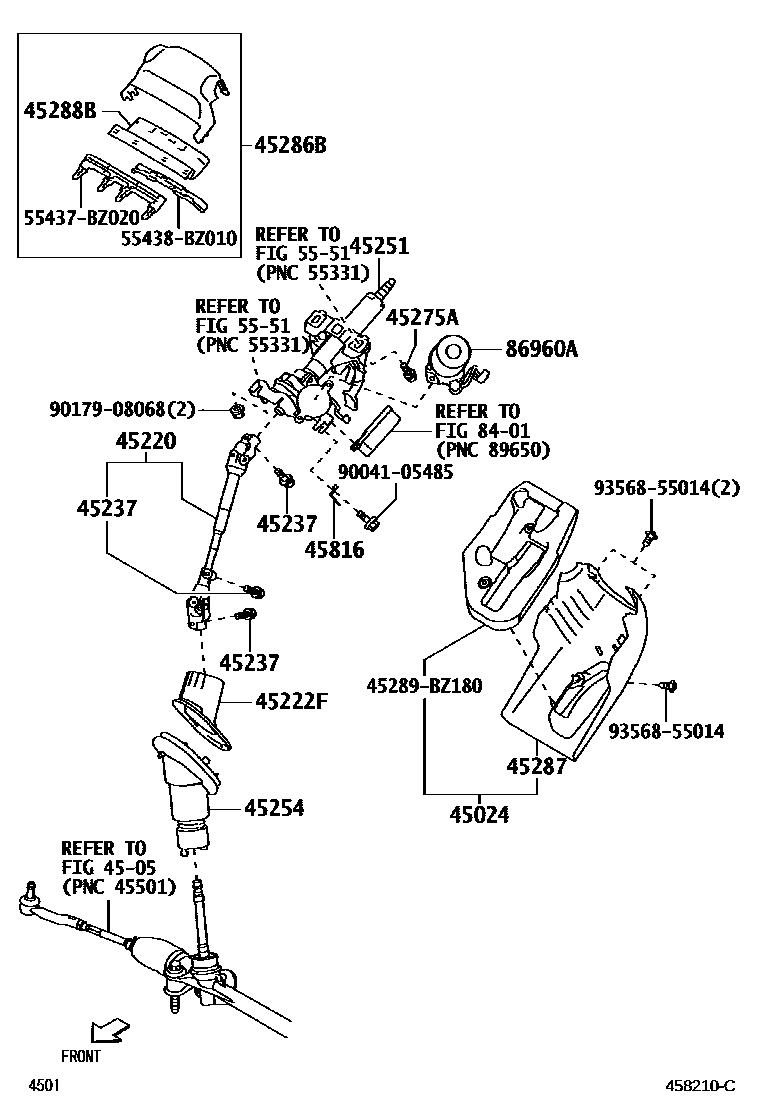

STEERING COLUMN & SHAFT

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-BZ200-C0iW151202206

BLACK,TRIM2#

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ450iW151202206

45222FCOVER, DUST

main45222-BZ210iW151202206

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main90041-19747iW151202206

45251TUBE SET, STEERING COLUMN

main45251-B9290iW151202206

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ270iW151202206

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main90041-20097iW151202206

45286BCOVER, STEERING COLUMN, UPR

main45023-BZ010-C0iW151202206

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-BZ560-C0iW151202206

BLACK,TRIM2#

45288BCOVER, STEERING COLUMN, UPPER

main45288-BZ100iW151202206

45816BRACKET, WIRE HARNESS

main82715-BZE80iW151202206

5551

8401

86960AMOTOR SET, POWER STEERING

main80960-B9191iW151202206

45289BZ180RING, STEERING COLUMN COVER

main45289-BZ180

55437BZ020PROTECTOR, INSTRUMENT PANEL EDGE

main55437-BZ020

55438BZ010PACKING, INSTRUMENT WARNING LAMP SHADE

main55438-BZ010

9004105485

main90041-05485

9017908068

main90179-08068

9356855014

main93568-55014

21 parts on this diagram · 1 diagram in section
