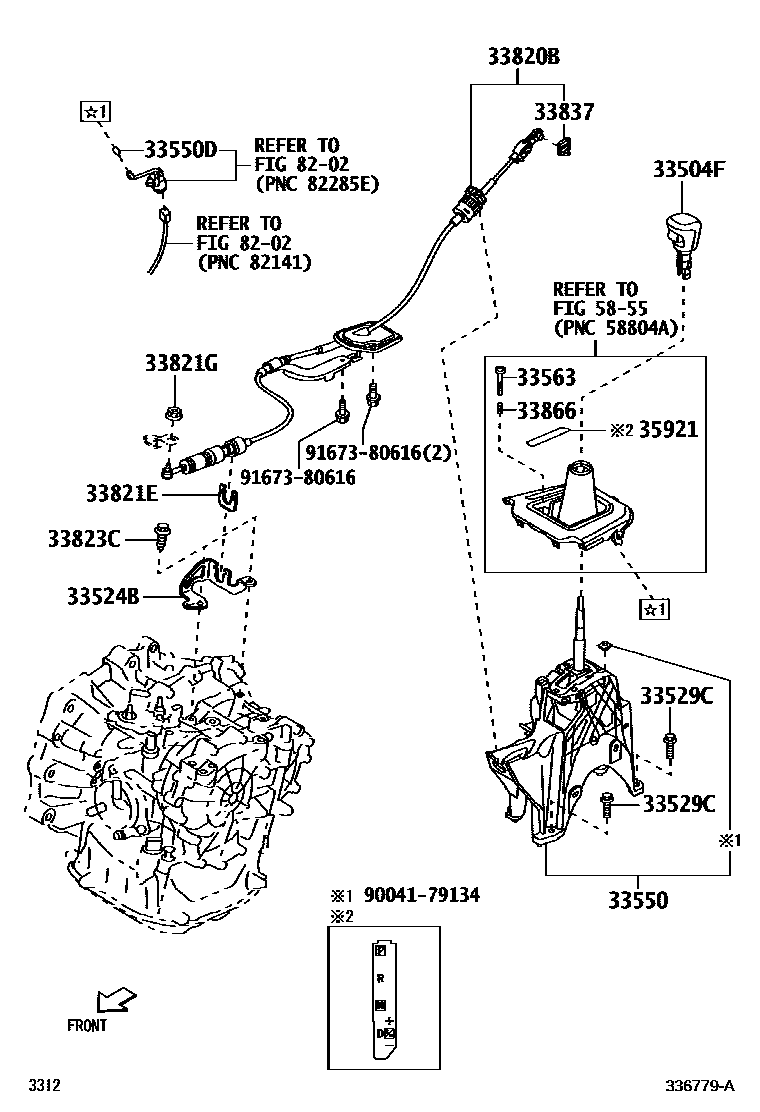

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-BZ331-C1iW151202206-202211

SILVER,TRIM2#

sub33504-BZ333

main33504-BZ332iW151202212-202301

sub33504-BZ333

main33504-BZ333-C1iW151202302-202304

SILVER,TRIM2#

sub33504-BZ334

main33504-BZ334-C1iW151202305

SILVER,TRIM2#

33524BBRACKET, CONTROL CABLE

main33524-BZ050iW151202206

33529CBOLT, SHIFT LEVER

main90041-20099iW151202206

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ631-C0iW151202206

BLACK,TRIM2#

33550DBULB, POSITION INDICATOR LAMP

main35955-BZ030iW151202206

33563BUTTON, SHIFT LOCK RELEASE

main33563-BZ040-C0iW151202206

BLACK,TRIM2#

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ460iW151202206

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-BZ010iW151202206

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274iW151202206

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91551-80820iW151202206

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010iW151202206

33866SPRING, SHIFT LOCK RELEASE

main33866-BZ010iW151202206

35921PLATE, CONTROL POSITION INDICATOR

main35921-BZ110iW151202206

5855

8202

9004179134

main90041-79134

9167380616

main91673-80616

17 parts on this diagram · 1 diagram in section
