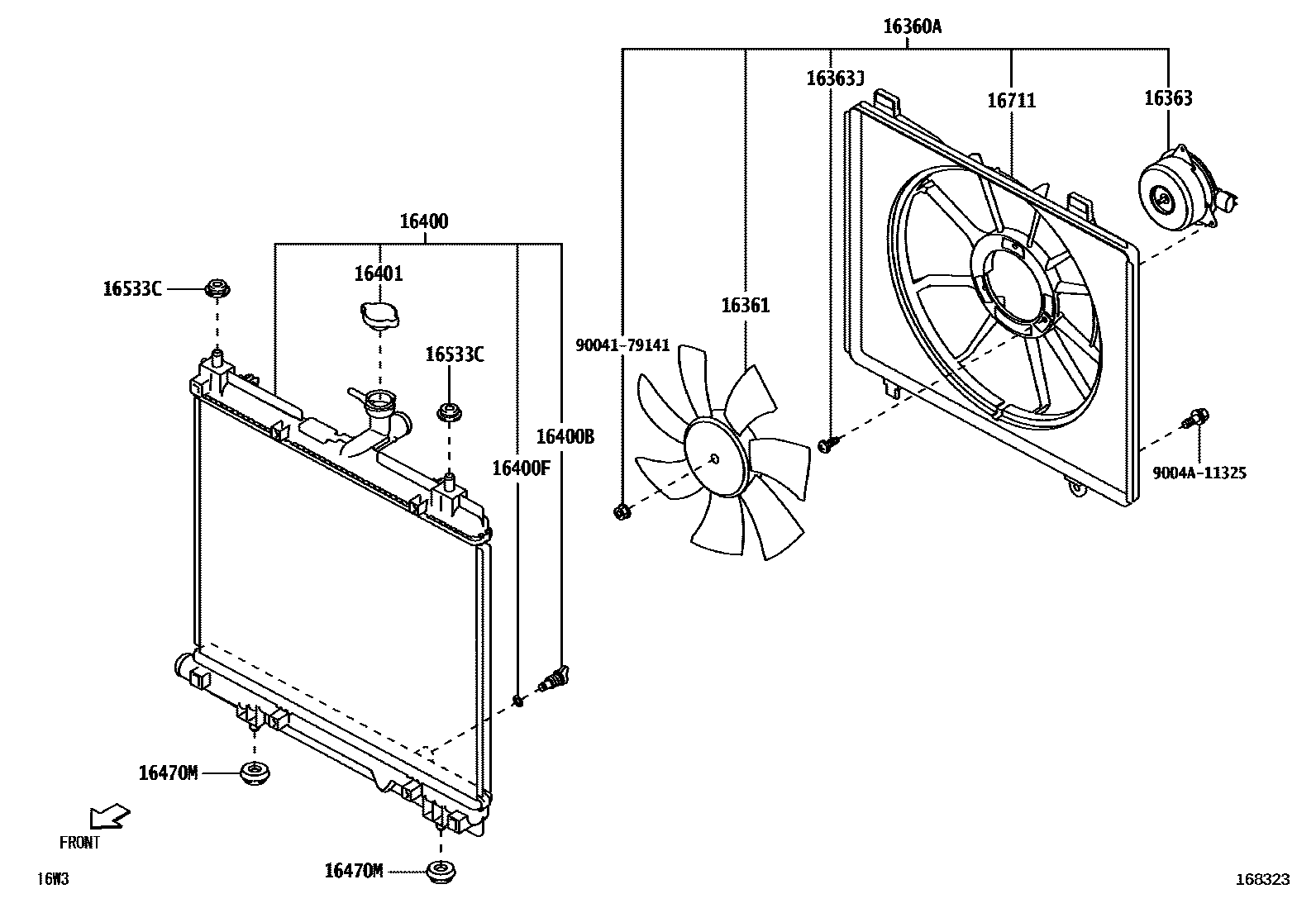

RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1HOSE, RESERVE TANK

16360AFAN ASSY, W/MOTOR

main16360-BZ400i2NRVE..W151202206

16361FAN

main16361-BZ140i2NRVE..W151202206

16363MOTOR, COOLING FAN

main16363-BZ200i2NRVE..W151202206

16363JBOLT(FOR COOLING FAN MOTOR)

main16672-87201i2NRVE..W151202206

16400RADIATOR ASSY

main16400-BZB40i2NRVE..W151202206

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i2NRVE..W151202206

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-87503i2NRVE..W151202206

16401CAP SUB-ASSY, RADIATOR

main16401-BZ160i2NRVE..W151202206

16470TANK ASSY, RADIATOR RESERVE

main16470-BZ330i2NRVE..W151202206

16470MGROMMET

main9004A-48033i2NRVE..W151202206

16533CGROMMET(FOR RADIATOR SUPPORT)

main9004A-48017i2NRVE..W151202206

16711SHROUD, FAN

main16711-BZ210i2NRVE..W151202206

9004179141

main90041-79141

9004A11325

main9004A-11325

14 parts on this diagram · 2 diagrams in section
