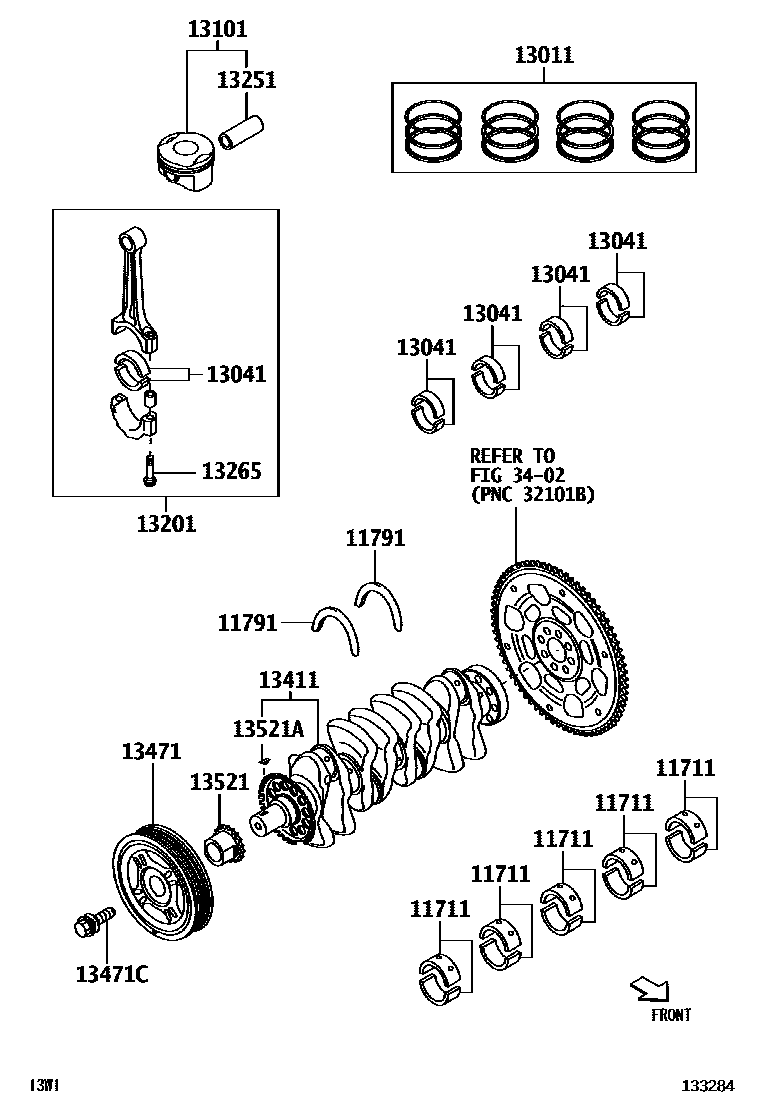

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-0Y030-02i2NRVE..W151202206

MARK2

main11701-0Y030-03i2NRVE..W151202206

MARK3

main11701-0Y030-04i2NRVE..W151202206

MARK4

main11701-0Y030-05i2NRVE..W151202206

MARK5

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B0010i2NRVE..W151202206

STD

13011RING SET, PISTON

main13011-0Y030i2NRVE..W151202206

STD

13041BEARING, CONNECTING ROD

main13041-0Y040-01i2NRVE..W151202206

MARK1

main13041-0Y040-02i2NRVE..W151202206

MARK2

main13041-0Y040-03i2NRVE..W151202206

MARK3

13101PISTON SUB-ASSY, W/PIN

main13101-0Y120i2NRVE..W151202206

STD

13201ROD SUB-ASSY, CONNECTING

main13201-B9095i2NRVE..W151202206

13251PIN, PISTON

main13251-0Y060i2NRVE..W151202206

13265BOLT, CONNECTING ROD

main13265-0Y020i2NRVE..W151202206

13411CRANKSHAFT

main13401-BZ100i2NRVE..W151202206

13471PULLEY, CRANKSHAFT

main13470-0Y020i2NRVE..W151202206

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-T0444i2NRVE..W151202206

sub90119-T0529

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-BZ040i2NRVE..W151202206

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04001i2NRVE..W151202206

3402

14 parts on this diagram · 1 diagram in section
