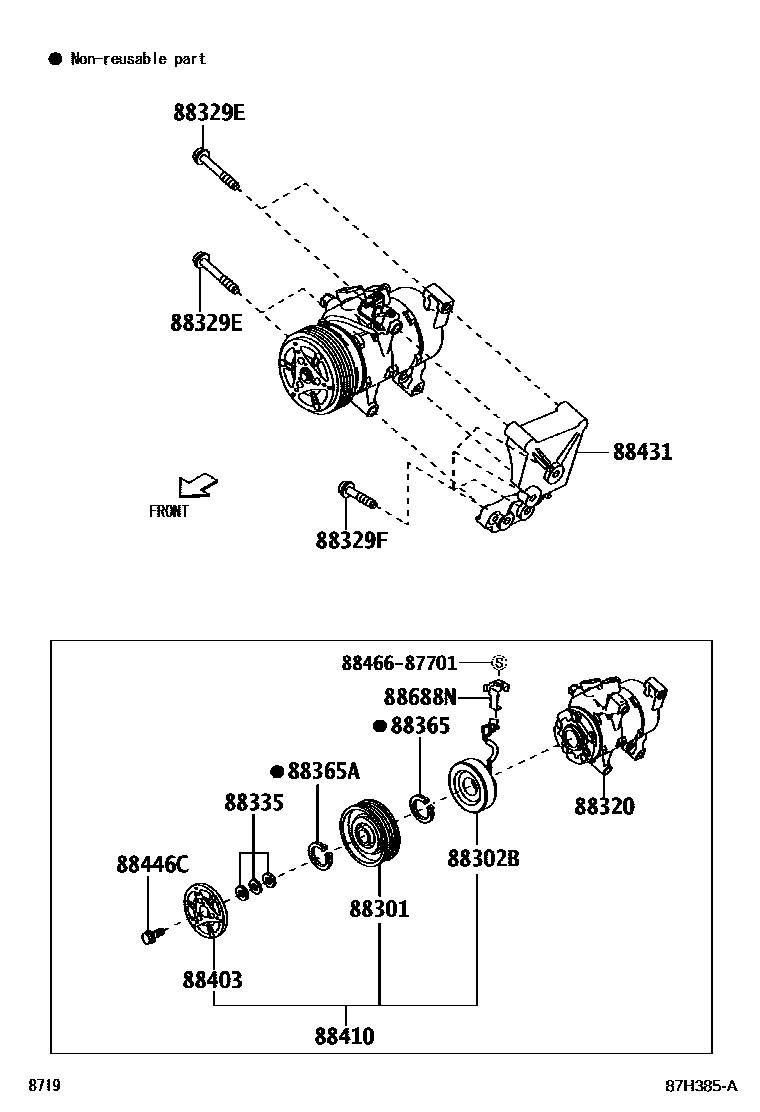

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ110iF850201812-202310

88302BSTATOR, MAGNET CLUTCH

main88411-BZ190iF850201812-202310

88320COMPRESSOR ASSY, COOLER

main88320-BZ290iF850201812-202310

88329EBOLT, COMPRESSOR, NO.1

main9004A-10144iF850201812-202310

88329FBOLT, COMPRESSOR, NO.2

main9004A-10146iF850201812-202310

88335GASKET KIT, OVERHAUL

main88335-14020iF850201812-202310

88365RING, SNAP

main90099-07125iF850201812-202310

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iF850201812-202310

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-BZ080iF850201812-202310

88410CLUTCH ASSY, MAGNET

main88410-BZ300iF850201812-202310

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-BZ130iF850201812-202310

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iF850201812-202310

88688NBRACKET, COOLER

main88688-BZ200iF850201812-202310

8846687701

main88466-87701

14 parts on this diagram · 1 diagram in section
