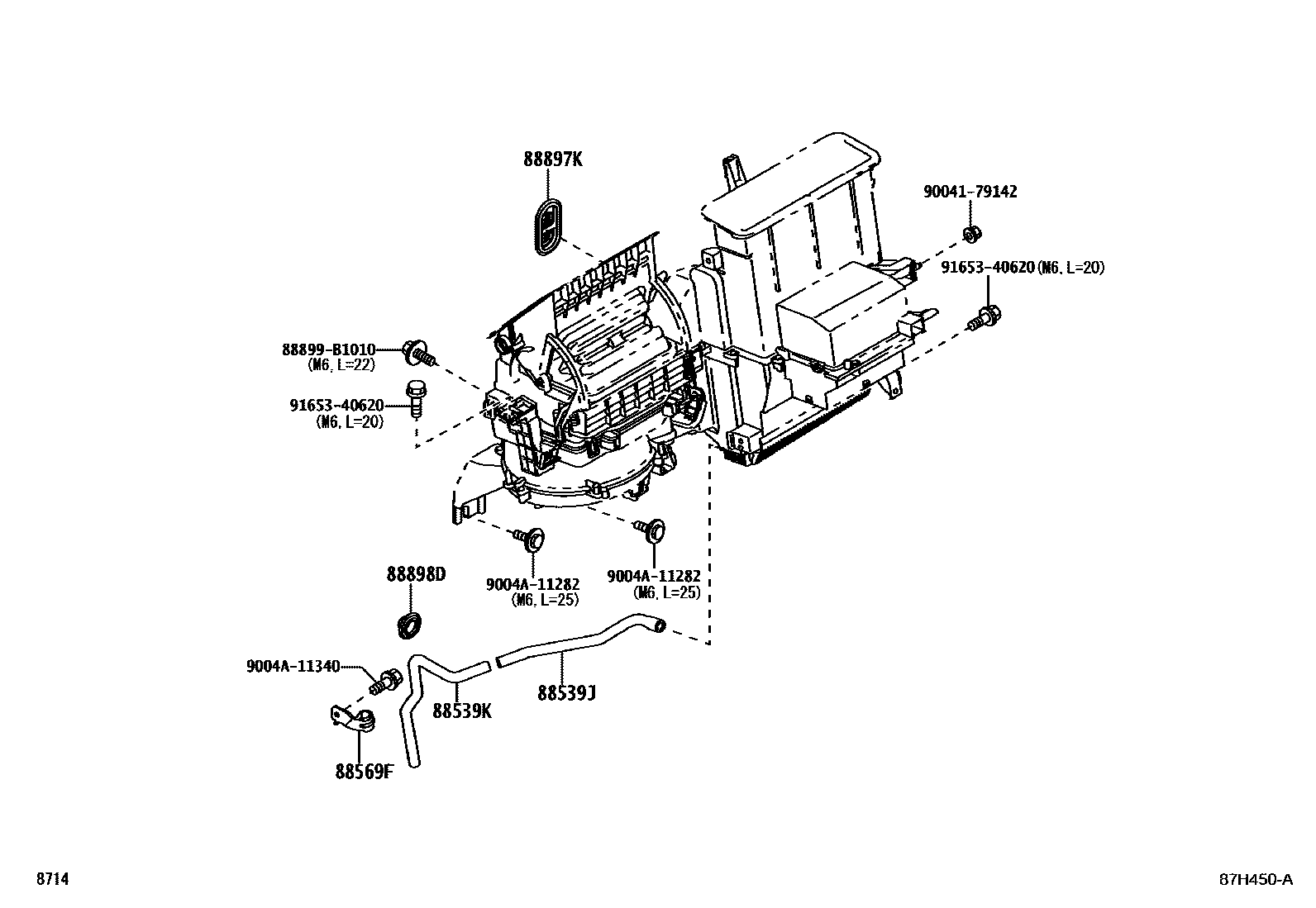

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-BZ380iF850201812-202310

88539JHOSE, DRAIN COOLER

main88539-BZ400iF850201812-202310

88539KHOSE, DRAIN COOLER

main88839-BZ011iF850201812-202310

88569FCLAMP

main88718-BZ731iF850201812-202310

88897KGROMMET, (FOR COOLER PIPE)

main88897-BZ250iF850201812-202310

88898DGROMMET

main88897-87Z13iF850201812-202310

88899B1010COVER, EVAPORATOR

main88899-B1010

9004179142

main90041-79142

9004A11282

main9004A-11282

9004A11340

main9004A-11340

9165340620

main91653-40620

11 parts on this diagram · 3 diagrams in section
