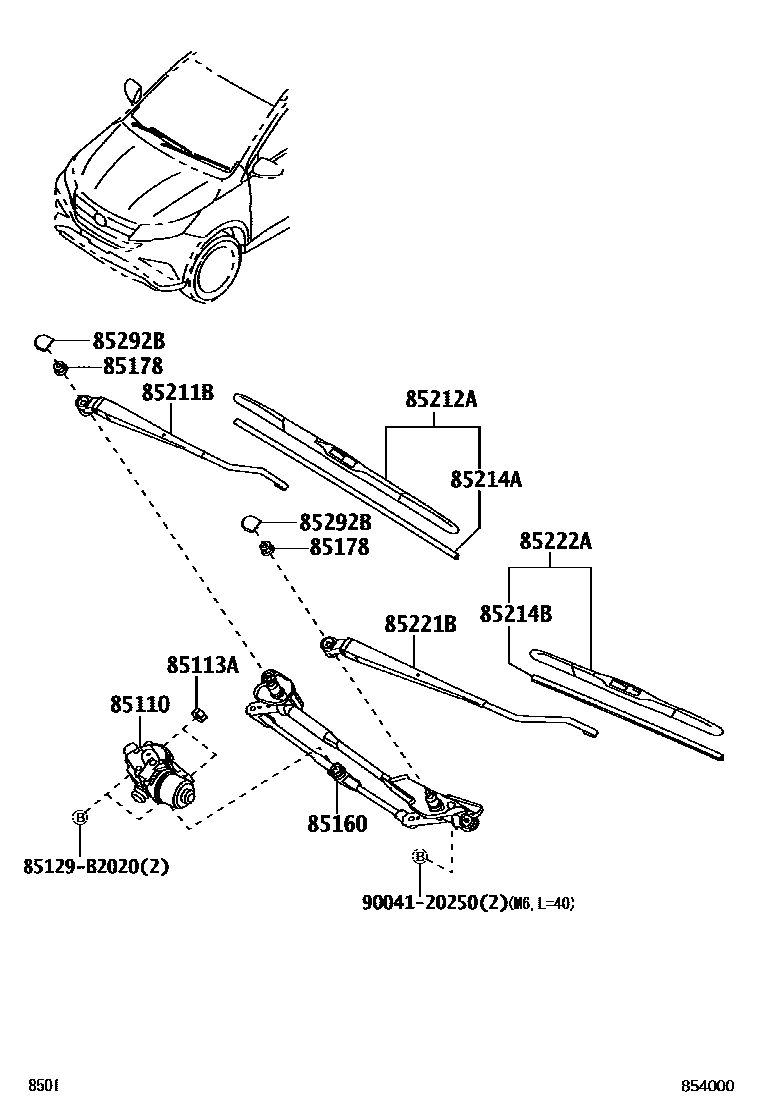

WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85113ANUT, FR WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD
main85129-B2020
9004120250
main90041-20250
13 parts on this diagram · 1 diagram in section
