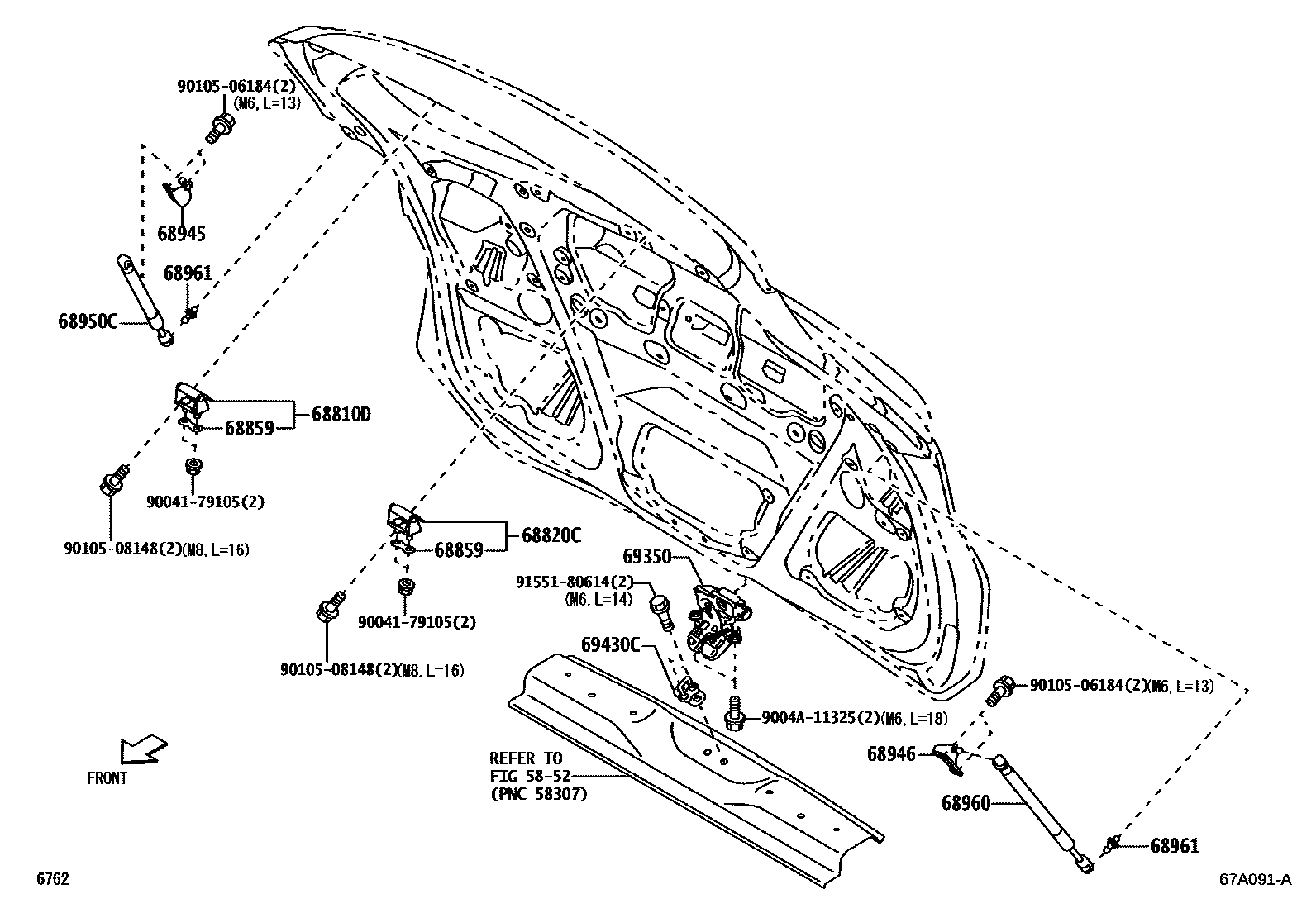

BACK DOOR LOCK & HINGE
5852
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68859PACKING, BACK DOOR HINGE
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
9004179105
main90041-79105
9004A11325
main9004A-11325
9010506184
main90105-06184
9010508148
main90105-08148
9155180614
main91551-80614
16 parts on this diagram · 1 diagram in section
