INSIDE TRIM BOARD
61729BBRACKET, ROOF SIDE RAIL, LH
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
BLACK,TRIM1#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
BLACK,TRIM1#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM1#
62211TCLIP(FOR FRONT PILLAR GARNISH)
RH
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM1#
62217GCLIP, FRONT PILLAR GARNISH
LH
62217HCLIP, CENTER PILLER GARNISH
RH
62217JCLIP, CENTER PILLER GARNISH
LH
62225AGARNISH, FRONT PILLAR, LOWER RH
LT.GRAY,TRIM1#
62226GARNISH, FRONT PILLAR, LOWER LH
LT.GRAY,TRIM1#
62313DTRIM, FRONT DOOR OPENING, RH
62314DTRIM, FRONT DOOR OPENING, LH
62333ATRIM, REAR DOOR OPENING, RH
62334ATRIM, REAR DOOR OPENING, LH
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM1#
62471MCLIP
RH
62472AGARNISH, ROOF SIDE, INNER LH
LT.GRAY,TRIM1#
62489ACLIP, ROOF SIDE INNER GARNISH
RH
62489BCLIP, ROOF SIDE INNER GARNISH
LH
62597DCLIP
LH
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#
67918DPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#
75577CBRACKET, ROOF SIDE GARNISH
61719BZ060
main61719-BZ060
61729BZ070REINFORCEMENT, QUARTER PANEL, FRONT LH
main61729-BZ070
9004A46302
main9004A-46302
9167380616
main91673-80616

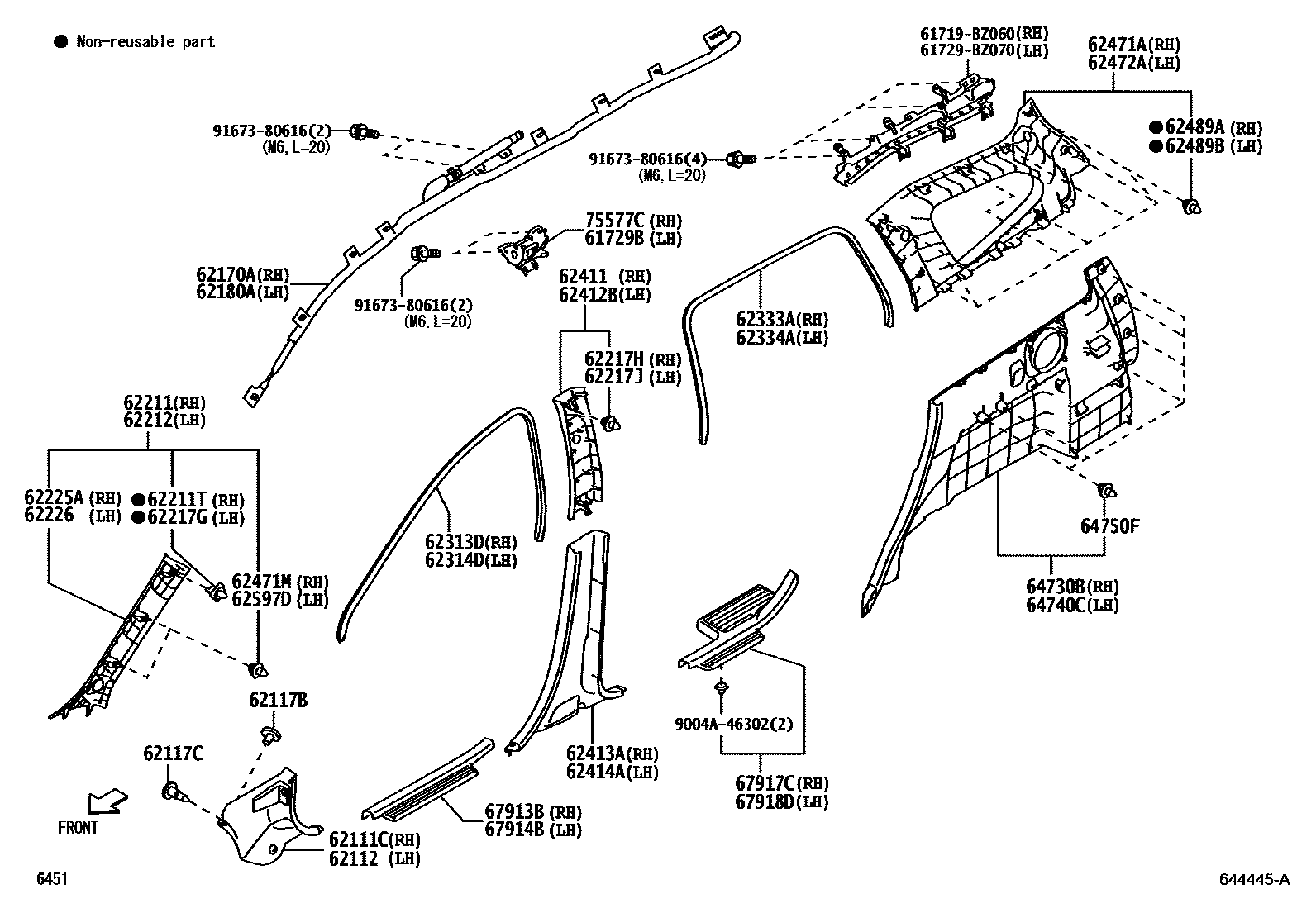

41 parts on this diagram · 1 diagram in section
