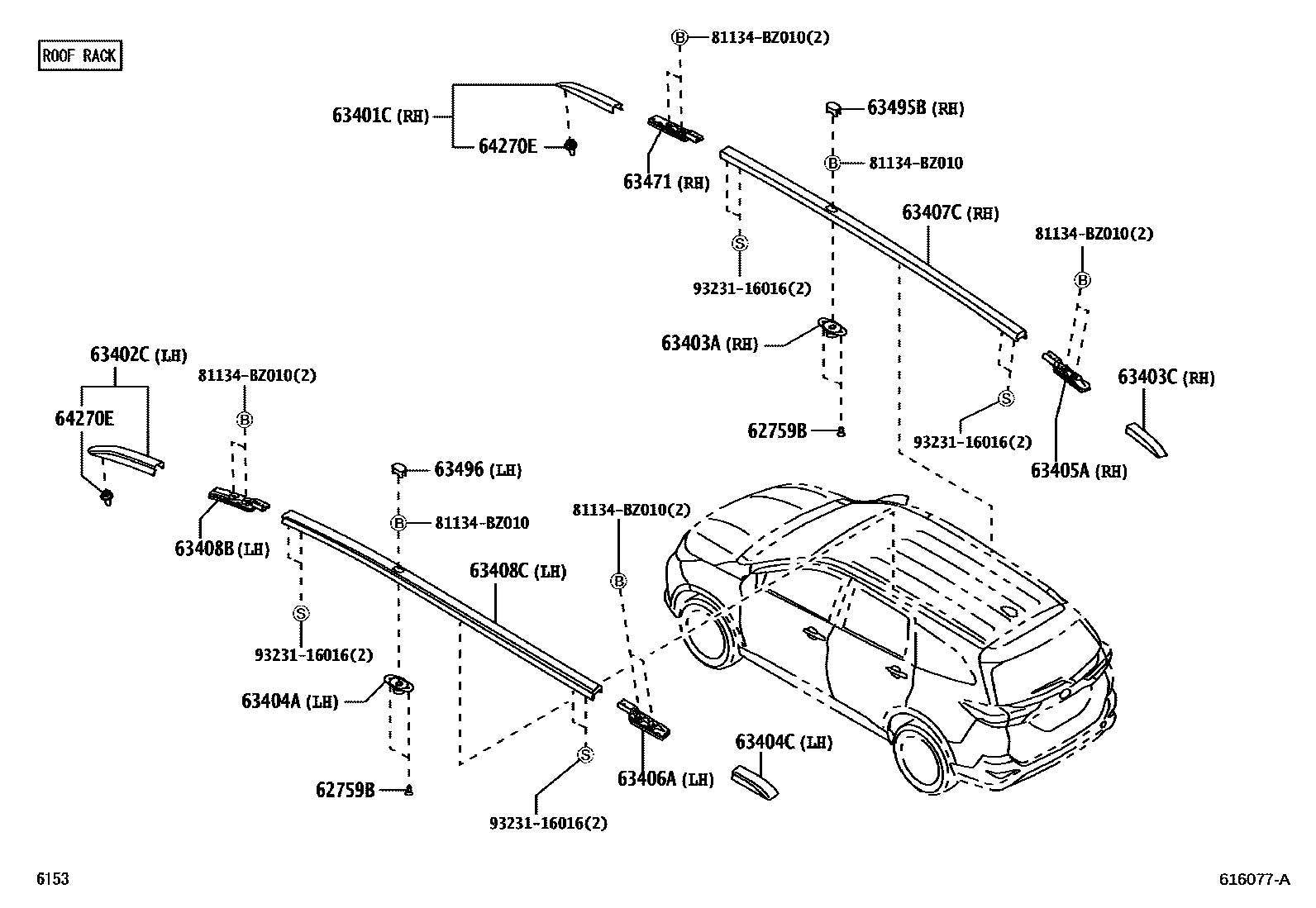

ROOF PANEL & BACK PANEL

0001 1 0002 1

62759BCLIP, ROOF RACK

main90044-67517×4iF850201812-202310

63401CCOVER SUB-ASSY, ROOF RACK, FRONT RH

main63401-BZ010iF850201812-202310

63402CCOVER SUB-ASSY, ROOF RACK, FRONT LH

main63402-BZ020iF850201812-202310

63403ASUPPORT SUB-ASSY, ROOF RACK, CENTER RH

main63403-BZ040iF850201812-202310

63403CCOVER SUB-ASSY, ROOF RACK, REAR RH

main63403-BZ020iF850201812-202310

63404ASUPPORT SUB-ASSY, ROOF RACK, CENTER LH

main63404-BZ040iF850201812-202310

63404CCOVER SUB-ASSY, ROOF RACK, REAR LH

main63404-BZ020iF850201812-202310

63405ASUPPORT SUB-ASSY, ROOF RACK, REAR

main63405-BZ020iF850201812-202310

63406ASUPPORT SUB-ASSY, ROOF RACK, REAR LH

main63406-BZ020iF850201812-202310

63407CCARRIER SUB-ASSY, ROOF, RH

main63407-B0010iF850201812-202304

main63407-BZ100iF850202305-202310

63408BSUPPORT SUB-ASSY, ROOF RACK, FRONT LH

main63408-BZ030iF850201812-202310

63408CCARRIER SUB-ASSY, ROOF, LH

main63408-B0010iF850201812-202304

main63408-BZ100iF850202305-202310

63471SUPPORT, ROOF RACK, FRONT

main63407-BZ030iF850201812-202310

63495BCOVER, ROOF RACK LEG, CENTER RH

main63495-BZ040iF850201812-202310

63496COVER, ROOF RACK LEG, CENTER LH

main63496-BZ040iF850201812-202310

64270ECLIP

main90044-67500×2iF850201812-202310

81134BZ010GASKET, HEADLAMP

main81134-BZ010

9323116016

main93231-16016

18 parts on this diagram · 2 diagrams in section
