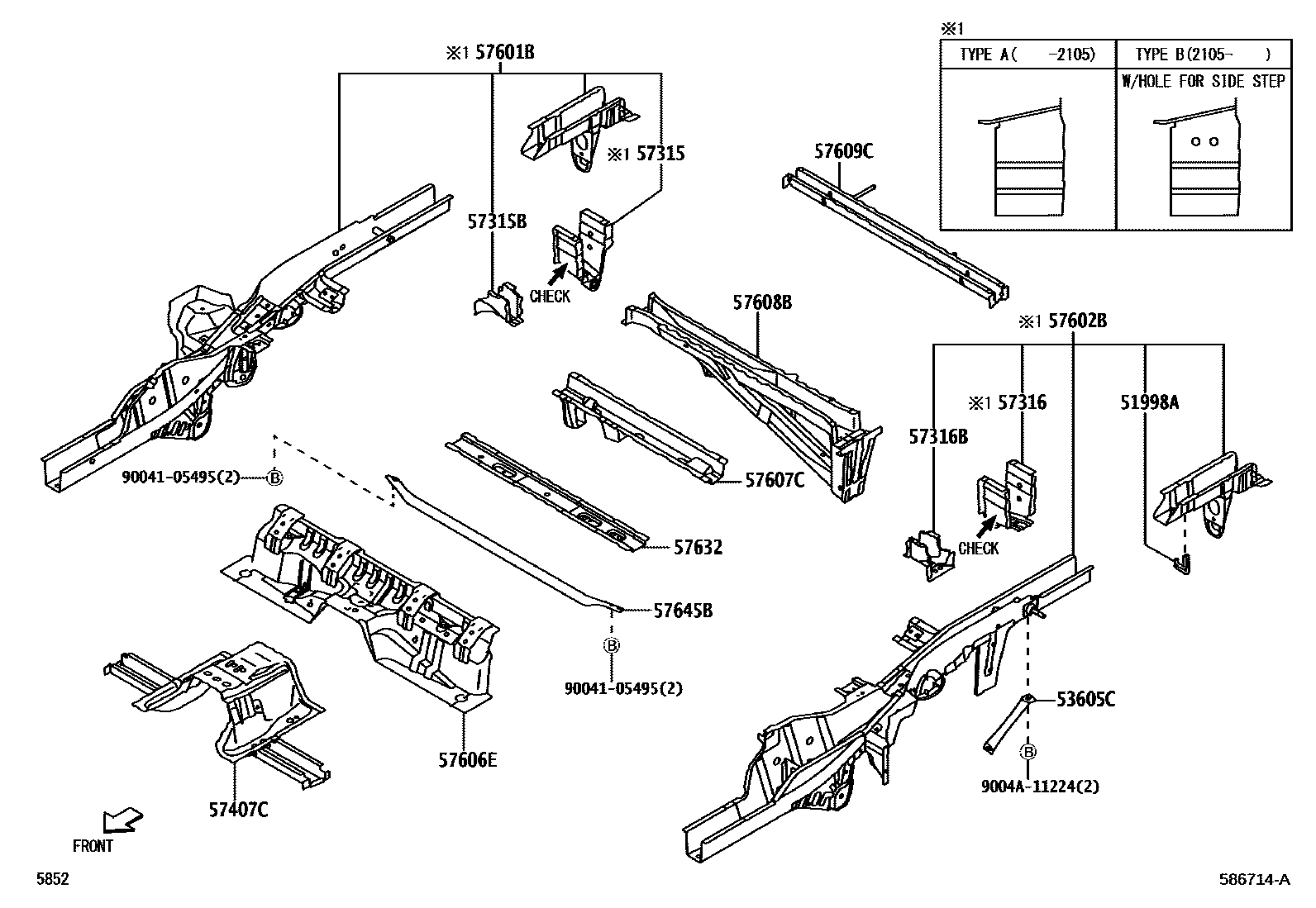

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51998AHANGER, EXHAUST PIPE SUPPORT, NO.6

main51906-BZ040iF850201812-202310

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53651-BZ020iF850201812-202310

57315OUTRIGGER, NO.3 RH

main57315-BZ170iF850201812-202105

TYPE A

main57315-BZ180iF850202105-202310

TYPE B

57315BOUTRIGGER SUB-ASSY, NO.3 RH

main57305-BZ010iF850201812-202310

57316OUTRIGGER, NO.3 LH

main57316-BZ160iF850201812-202105

TYPE A

main57316-BZ170iF850202105-202310

TYPE B

57316BOUTRIGGER SUB-ASSY, NO.3 LH

main57306-BZ010iF850201812-202310

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-BZ060iF850201812-202310

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-BZ470iF850201812-202105

TYPE A

main57601-BZ710iF850202105-202310

TYPE B

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-BZ450iF850201812-202105

TYPE A

main57602-BZ680iF850202105-202310

TYPE B

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-BZ200iF850201812-202310

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-BZ010iF850201812-202310

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-BZ310iF850201812-202310

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-BZ040iF850201812-202310

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-BZ010iF850201812-202310

57645BREINFORCEMENT, REAR SIDE MEMBER

main57645-BZ140iF850201812-202310

9004105495

main90041-05495

9004A11224

main9004A-11224

17 parts on this diagram · 2 diagrams in section
