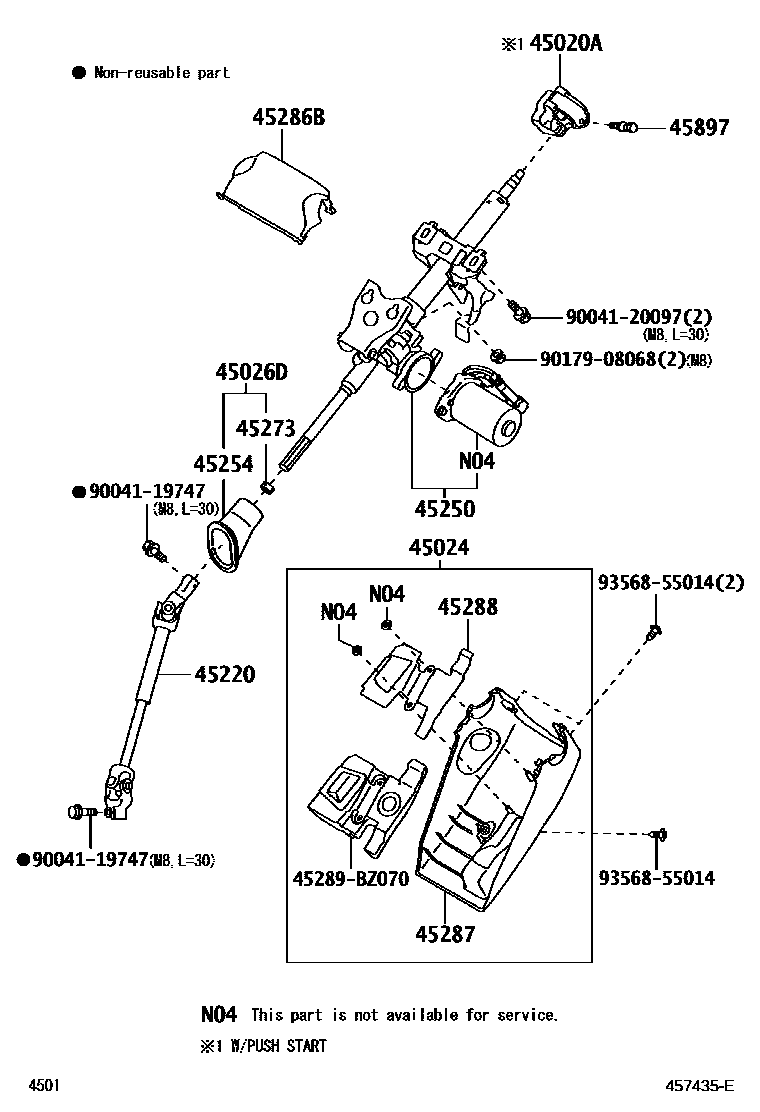

STEERING COLUMN & SHAFT

45020AACTUATOR ASSY, STEERING LOCK

main45020-BZ370iF850201812-202004

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-BZ090-C0iF850201812-202310

BLACK,TRIM1#

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-BZ010iF850201812-202310

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ170iF850201812-201909

sub45220-BZ171

main45220-BZ171iF850201910-202310

45250COLUMN ASSY, STEERING

main45250-BZ420iF850201812-202310

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ120iF850201812-202310

45273BUSH, STEERING MAIN SHAFT

main45273-B0010iF850201812-202310

45286BCOVER, STEERING COLUMN, UPR

main45286-BZ190-C0iF850201812-202310

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-BZ350-C0iF850201812-202310

BLACK,TRIM1#

45288PLATE, STEERING COLUMN COVER

main45288-BZ050iF850201812-202310

45897BOLT, STEERING LOCK SET

main45897-B2010iF850201812-202310

45289BZ070RING, STEERING COLUMN COVER

main45289-BZ070

9004119747

main90041-19747

9004120097

main90041-20097

9017908068

main90179-08068

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
