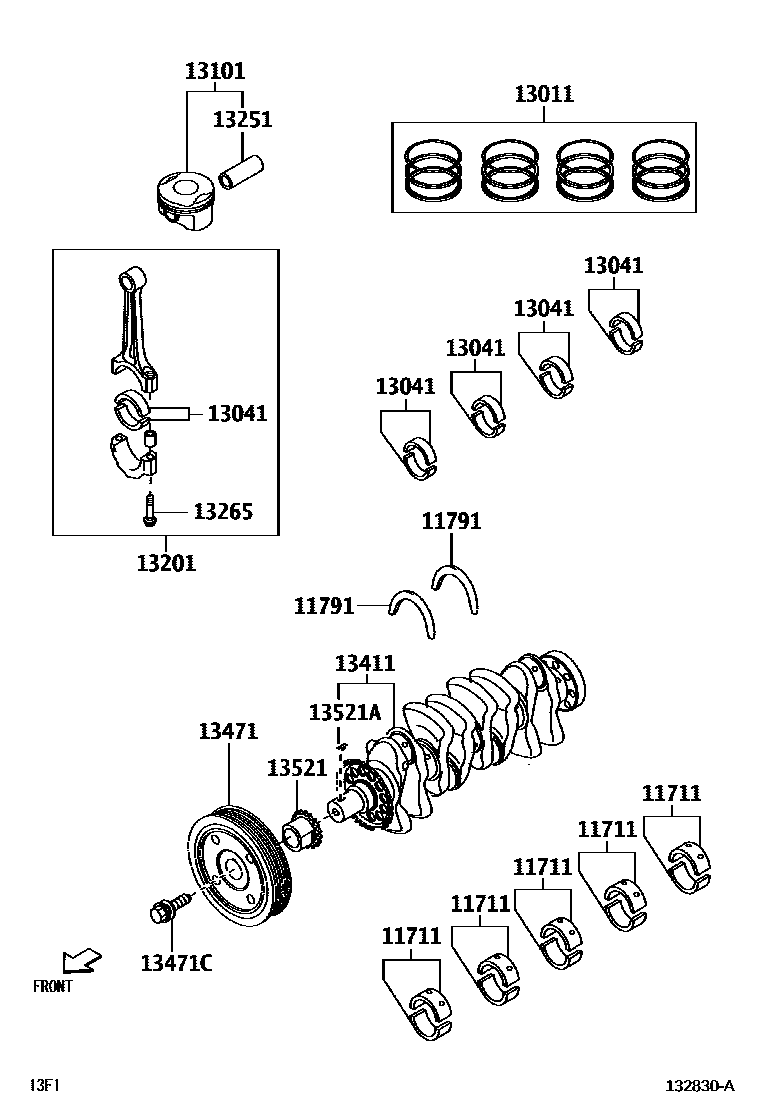

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
13201ROD SUB-ASSY, CONNECTING
13251PIN, PISTON
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13 parts on this diagram · 1 diagram in section
