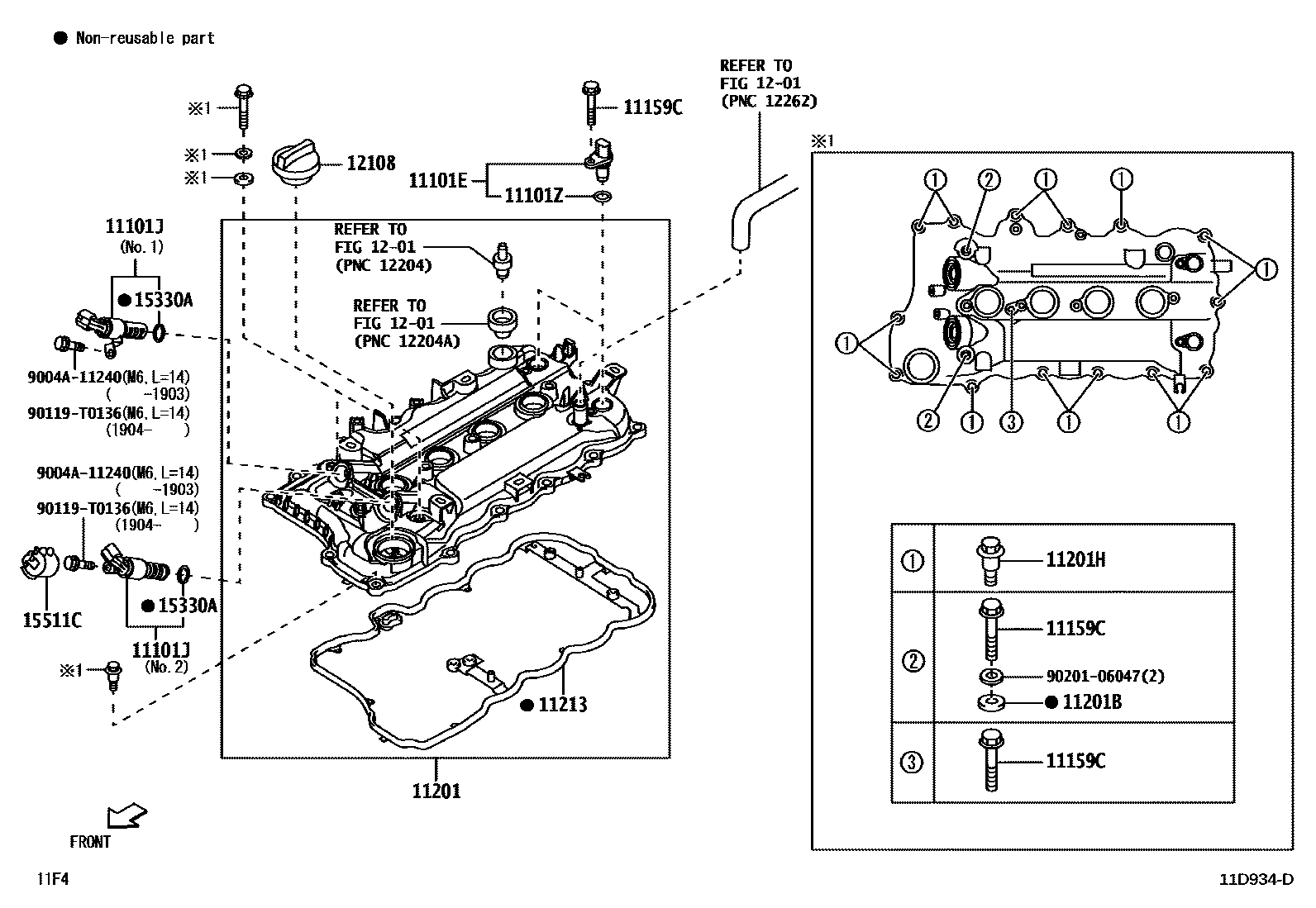

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1
NO.2
11101ZO RING, CAM POSITION SENSOR
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
M6,L=35
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
M6,L=23.5
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15511CCOVER, OIL CONTROL VALVE
9004A11240
main9004A-11240
90119T0136
main90119-T0136
9020106047
main90201-06047
16 parts on this diagram · 2 diagrams in section
