HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR

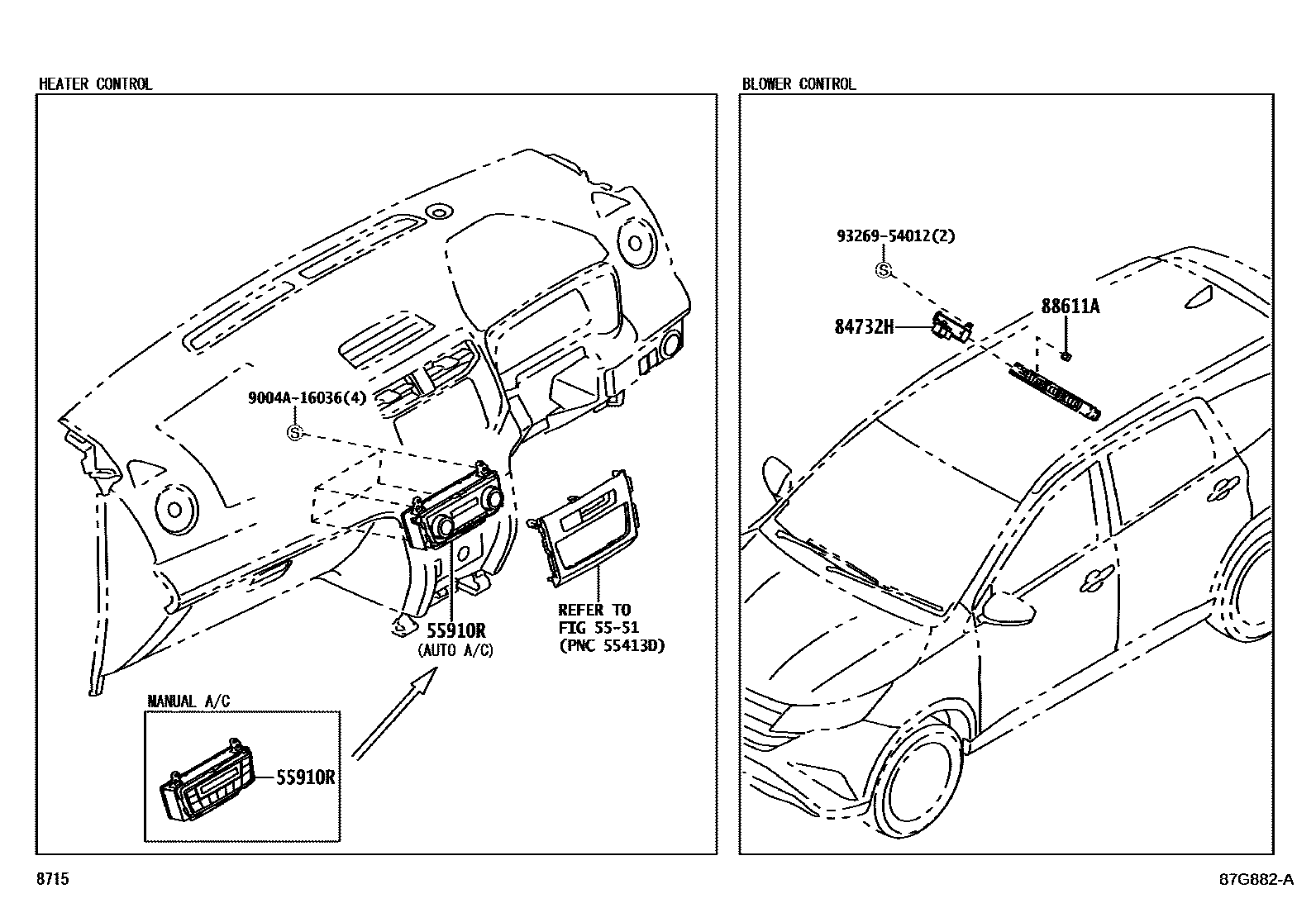

5551

55910RCONTROL ASSY, HEATER

main55910-B0010iF800..HI..PH201712-202107

main55910-B0030iF800..GCC,GEN,VN201804

main55910-B0050iF800..HI..IDN202108

main55910-BZ550iF800..MID..PH201712-202305

84732HSWITCH, HEATER BLOWER

main88470-BZ050iF800201712

88611AKNOB, COOLER CONTROL SWITCH

main88611-BZ080iF800201712-201801

main88611-BZ080-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201801-202403

LT.GRAY,TRIM1#

main88611-BZ080-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main88611-BZ080-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

9004A16036

main9004A-16036

9326954012

main93269-54012

6 parts on this diagram · 5 diagrams in section
