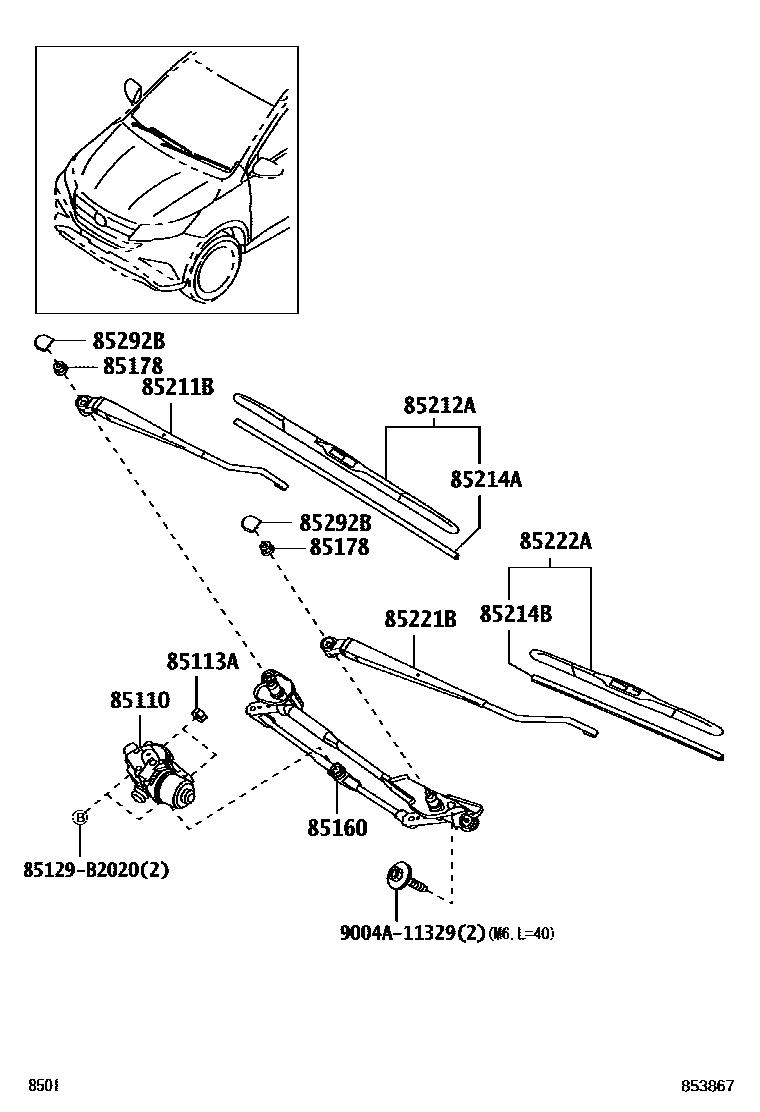

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ230iF800..RHD201712

main85110-BZ240iF800..MID..PH201804-202305

85113ANUT, FR WIPER

main85113-B2010iF800..MID..PH201712-202305

85160LINK ASSY, WINDSHIELD WIPER

main85150-BZ290iF800..RHD201712

main85150-BZ300iF800..HI..PH;F800..LHD..(GCC,GEN,VN)201804-202305

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iF800201712-202208

main90041-79379iF800..MID..PH202209-202305

85211BARM, FRONT WIPER, RH

main85211-BZ300iF800..RHD201712

main85221-BZ310iF800..MID..PH201804-202305

85212ABLADE, FR WIPER, RH

main85212-B0010iF800..RHD201712

main85222-B0020iF800..HI..PH;F800..LHD..(GCC,GEN,VN)201804-202305

85214ARUBBER, WIPER, RH

main85214-B1070iF800..HI..PH;F800..LHD..(GCC,GEN,VN)201804-202305

main85214-B2290iF800..RHD201712

85214BRUBBER, WIPER, LH

main85214-B1070iF800..RHD201712

main85214-B2290iF800..MID..PH201804-202305

85221BARM, FRONT WIPER, LH

main85211-BZ310iF800..MID..PH201804-202305

main85221-BZ300iF800..RHD201712

85222ABLADE, FR WIPER, LH

main85212-B0020iF800..MID..PH201804-202305

main85222-B0010iF800..RHD201712

85292BCAP, FRONT WIPER ARM HEAD

main85292-BZ110iF800..HI..PH;F800..GCC,GEN,IDN,VN201712-202305

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

9004A11329

main9004A-11329

13 parts on this diagram · 2 diagrams in section
