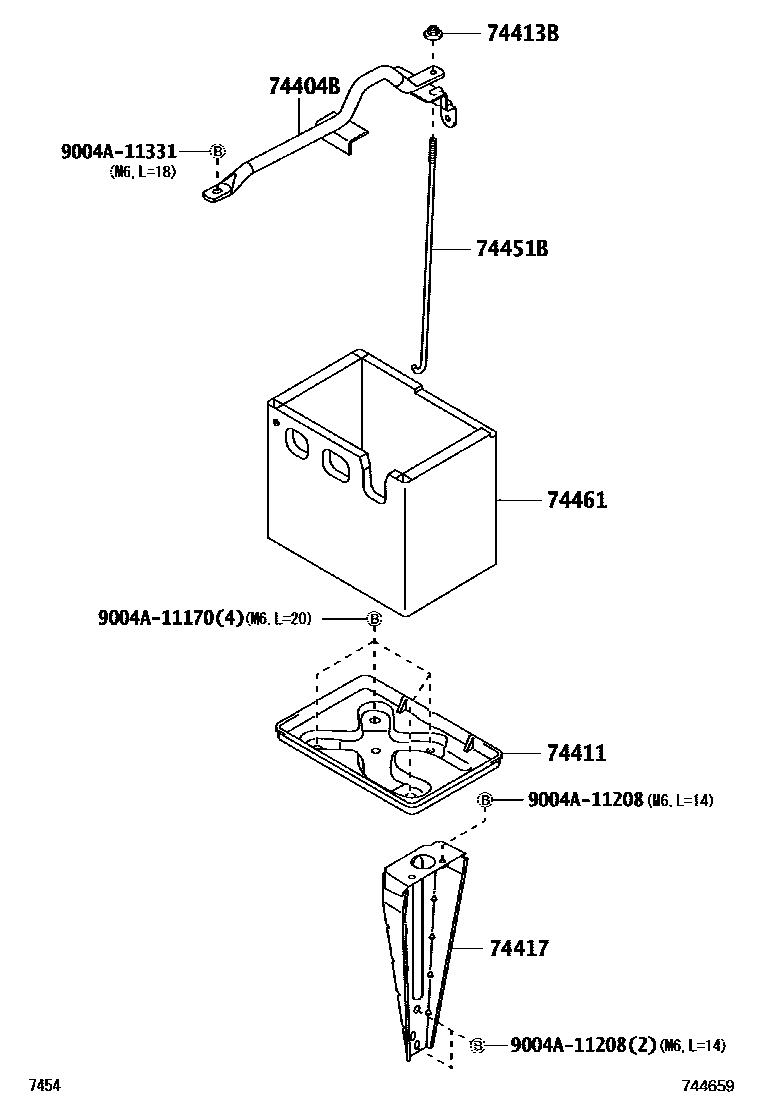

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-BZ100iF800..MID..PH201712-202305

74411CARRIER, BATTERY

main74411-BZ090iF800..MID..PH201712-202305

74413BNUT, WING (FOR BATTERY CLAMP BOLT)

main90041-79111iF800..MID..PH201712-202305

74417BRACKET, BATTERY CARRIER

main74417-BZ070iF800..MID..PH201712-202305

74451BBOLT, BATTERY CLAMP

main74451-BZ070iF800..MID..PH201712-202305

74461COVER, BATTERY

main74405-BZ080iF800..MID..PH201712-202305

9004A11170

main9004A-11170

9004A11208

main9004A-11208

9004A11331

main9004A-11331

9 parts on this diagram · 1 diagram in section
