ARMREST & VISOR

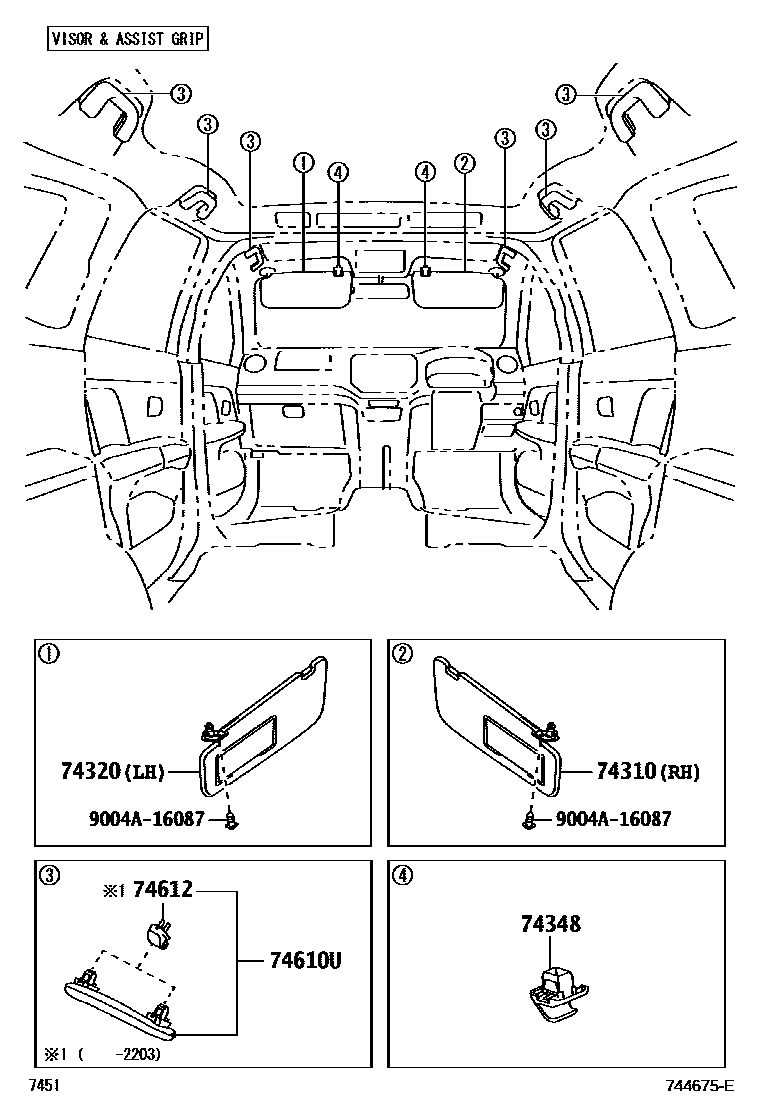

0001 1VISOR & ASSIST GRIP 0002 1ARMREST 0003 1EXTINGUISHER 0004 1EXTINGUISHER

74310VISOR ASSY, RH

main74310-BZ730-B0iF800..RHD..HI201712-202110

LT.GRAY,TRIM1#

main74310-BZ730-B1iF800..RHD..HI202110-202403

LT.GRAY,TRIM1#

main74310-BZ730-B1iF800..RHD..HI202403

LT.GRAY,TRIM10

main74310-BZ730-C0iF800..RHD..HI202403

BLACK,TRIM11

main74310-BZ770-B0iF800..LHD201804-202110

LT.GRAY,TRIM1#

main74310-BZ770-B1iF800..LHD202110

LT.GRAY,TRIM1#

main74310-BZ880-B0iF800..RHD..MID201712-202110

LT.GRAY,TRIM1#

main74310-BZ880-B1iF800..RHD..MID202110

LT.GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-BZ670-B0iF800..RHD201712-202110

LT.GRAY,TRIM1#

main74320-BZ670-B1iF800..RHD..HI202403

LT.GRAY,TRIM10

main74320-BZ670-B1iF800..RHD..HI202110-202403

LT.GRAY,TRIM1#

main74320-BZ670-C0iF800..RHD..HI202403

BLACK,TRIM11

main74320-BZ790-B0iF800..LHD..HI201804-202110

LT.GRAY,TRIM1#

main74320-BZ790-B1iF800..LHD..HI202110

LT.GRAY,TRIM1#

main74320-BZ800-B0iF800..LHD..MID201804-202110

LT.GRAY,TRIM1#

main74320-BZ800-B1iF800..LHD..MID202110

LT.GRAY,TRIM1#

74348HOLDER, VISOR

main74348-BZ060-B0iF800..MID;F800..LHD..HI202110-202403

LT.GRAY,TRIM1#

main74348-BZ060-B0iF800..RHD..HI202403

LT.GRAY,TRIM10

main74348-BZ060-B1iF800201712-202110

LT.GRAY,TRIM1#

main74348-BZ060-C0iF800..RHD..HI202403

BLACK,TRIM11

74610UGRIP ASSY, ASSIST

main74610-B2030-B3iF800..MID..PH201712-202202

LT.GRAY,TRIM1#

sub74610-B2030

main74610-BZ050-B1iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main74610-BZ050-B1iF800..E4AT..HI..GCC;F800..5F..HI..(GCC,VN);F800..MID..(GCC,GEN,PH,VN)202203-202403

LT.GRAY,TRIM1#

main74610-BZ050-B1iF800..LHD..GEN202203

ECUADOR,LT.GRAY,TRIM1#

main74610-BZ050-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

74612COVER, ASSIST GRIP

main74612-B2070-B3iF800..MID..PH201712-202203

LT.GRAY,TRIM1#

sub74612-B2070

9004A16087

main9004A-16087

6 parts on this diagram · 4 diagrams in section
