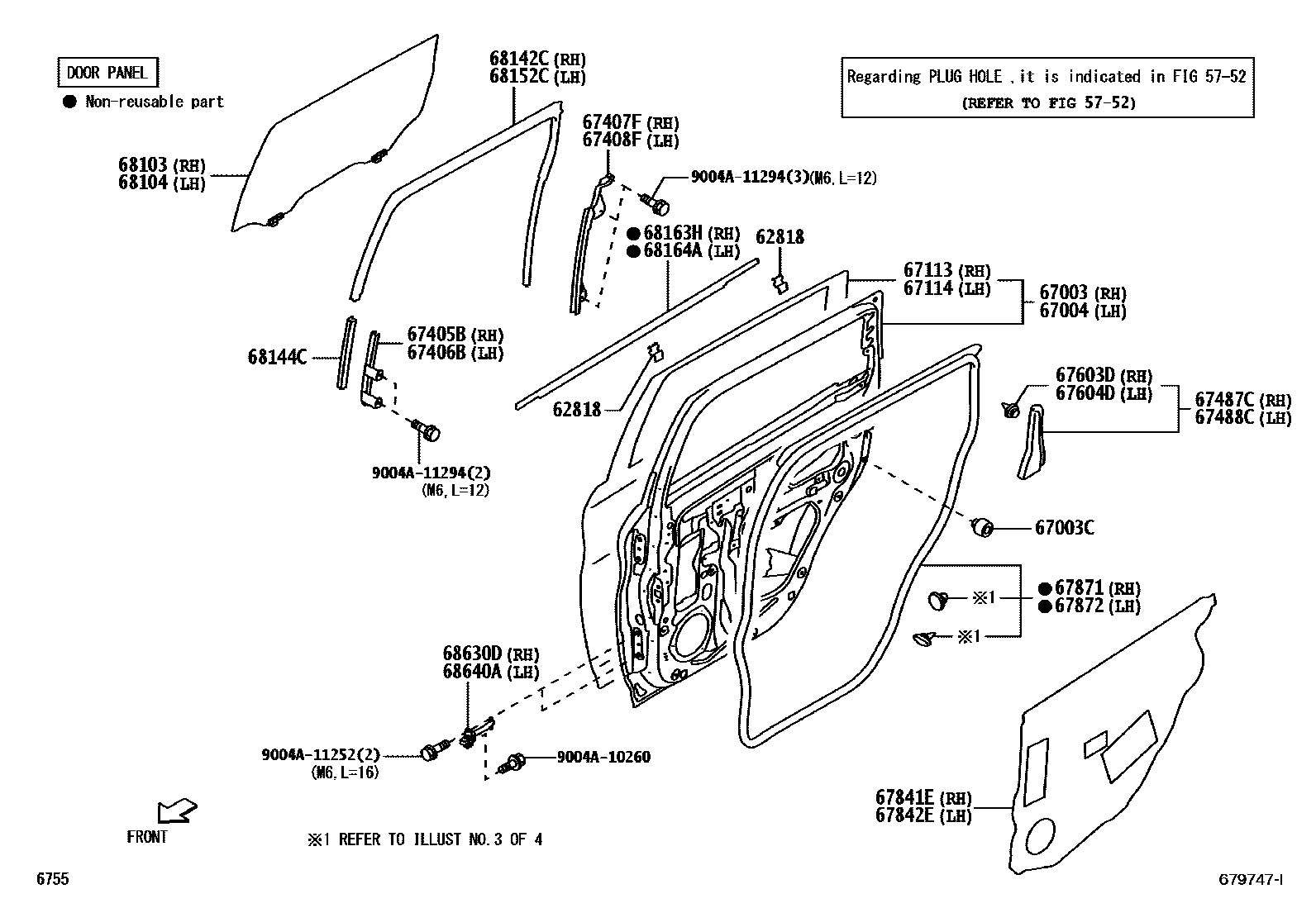

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WEATHERSTRIP RETAINER & CLIP 0004 1BLACK OUT TAPE

5752

62818STOPPER, REAR WINDOW GLASS

main67216-BZ140×4iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ660iF800..MID..PH201712-202305

main67003-BZ680iF800..GCC201804-202401

67003CCUSHION, REAR DOOR PANEL

main90541-09069×2iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ660iF800..MID..PH201712-202305

main67004-BZ680iF800..GCC201804-202401

67113PANEL, REAR DOOR, OUTER RH

main67113-BZ410iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67114PANEL, REAR DOOR, OUTER LH

main67114-BZ410iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-BZ060iF800..MID..PH201712-202305

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-BZ060iF800..MID..PH201712-202305

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-BZ180iF800..MID..PH201712-202305

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-BZ180iF800..MID..PH201712-202305

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-BZ070iF800..MID..PH201712-202305

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-BZ070iF800..MID..PH201712-202305

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-BZ640-C1iF800..HI;F800..MID..IDN201712-201910

-,TRIM1#

main67630-BZ660-C2iF800..MID..(GCC,GEN,PH,VN)201804

-,TRIM1#

main67630-BZ720-C0iF800..HI..IDN202403

BLACK,TRIM1#

main67630-BZ780-C0iF800..HI..IDN201910-202403

BLACK,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-B2010×3iF800..MID..PH201712-202305

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-BZ640-C1iF800..HI;F800..MID..IDN201712-201910

-,TRIM1#

main67640-BZ660-C2iF800..MID..(GCC,GEN,PH,VN)201804

-,TRIM1#

main67640-BZ720-C0iF800..HI..IDN202403

BLACK,TRIM1#

main67640-BZ780-C0iF800..MID..IDN;F800..HI..(GCC,GEN,PH,VN)201910

BLACK,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-B2010×3iF800..MID..PH201712-202305

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ410iF800..MID..PH201712-202305

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-BZ090iF800..MID..PH201712-202305

67871WEATHERSTRIP, REAR DOOR, RH

main67871-BZ210iF800..MID..PH201712-202305

67872WEATHERSTRIP, REAR DOOR, LH

main67872-BZ200iF800..MID..PH201712-202305

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-BZ410iF800201712-201812

L/IDN MARK

main68103-BZ411iF800..MID..PH201812-202305

W/IDN MARK

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-BZ410iF800201712-201812

L/IDN MARK

main68104-BZ411iF800..MID..PH201812-202305

W/IDN MARK

68142CRUN, REAR DOOR GLASS, RH

main68142-BZ190iF800..MID..PH201712-202305

68144CRUN, REAR DOOR GLASS, LOWER FRONT

main68144-BZ090×2iF800..MID..PH201712-202305

68152CRUN, REAR DOOR GLASS, LH

main68152-BZ190iF800..MID..PH201712-202305

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-BZ191iF800..MID..PH201712-202305

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-BZ181iF800..MID..PH201712-202305

68630DCHECK ASSY, REAR DOOR, RH

main68630-BZ150iF800..MID..PH201712-202305

68640ACHECK ASSY, REAR DOOR, LH

main68630-BZ150iF800..MID..PH201712-202305

9004A10260

main9004A-10260

9004A11252

main9004A-11252

9004A11294

main9004A-11294

33 parts on this diagram · 4 diagrams in section
