INSIDE TRIM BOARD

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-BZ060iF800..MID..PH201712-202305

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ160-C0iF800..LHD201804

BLACK,TRIM1#

main62111-BZ220-C0iF800..RHD201712

BLACK,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ160-C0iF800..LHD201804

BLACK,TRIM1#

main62112-BZ220-C0iF800..RHD201712

BLACK,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main9004A-46131-B0iF800201712-201804

DK.GRAY,TRIM1#

main9004A-46131-C1iF800201804

BLACK,TRIM1#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main9004A-46132-B0iF800201712-201804

DK.GRAY,TRIM1#

main9004A-46132-C0iF800201804

BLACK,TRIM1#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-B0010iF800..MID..PH201712-202305

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-B0010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712-202305

62211GARNISH, FRONT PILLAR, RH

main62210-BZ030-B0iF800..E4AT..HI..GCC;F800..5F..HI..(GCC,VN);F800..MID..(GCC,GEN,PH,VN)201712-202403

LT.GRAY,TRIM1#

main62210-BZ030-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62210-BZ030-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main9004A-46338iF800201910

main90467-10161iF800201712-201910

62212GARNISH, FRONT PILLAR, LH

main62220-BZ040-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201712-202403

LT.GRAY,TRIM1#

main62220-BZ040-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62220-BZ040-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

62217GCLIP, FRONT PILLAR GARNISH

main62217-20010iF800201712

62225AGARNISH, FRONT PILLAR, LOWER RH

main62211-BZ290-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201712-202403

LT.GRAY,TRIM1#

main62211-BZ290-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62211-BZ290-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

62226GARNISH, FRONT PILLAR, LOWER LH

main62212-BZ280-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201712-202403

LT.GRAY,TRIM1#

main62212-BZ280-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62212-BZ280-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

62313DTRIM, FRONT DOOR OPENING, RH

main62313-BZ210iF800..MID..PH201712-202305

62314DTRIM, FRONT DOOR OPENING, LH

main62314-BZ150iF800..MID..PH201712-202305

62333ATRIM, REAR DOOR OPENING, RH

main62333-BZ250iF800201712

62334ATRIM, REAR DOOR OPENING, LH

main62334-BZ110iF800..MID..PH201712-202305

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main9004A-46338iF800201910

main90467-10161iF800201712-201910

62411GARNISH, CENTER PILLAR, RH

main62411-BZ210-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201712-202403

LT.GRAY,TRIM1#

main62411-BZ210-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62411-BZ210-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-BZ210-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201712-202403

LT.GRAY,TRIM1#

main62412-BZ210-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62412-BZ210-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-BZ220-C0iF800201712

BLACK,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-BZ220-C0iF800201712

BLACK,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-BZ380-B0iF800..E4AT..HI..GCC;F800..5F..HI..(GCC,VN);F800..MID..(GCC,GEN,VN)201712-202403

LT.GRAY,TRIM1#

main62471-BZ380-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62471-BZ380-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

main62471-BZ400-B0iF800..MID..PH201804-202011

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-BZ380-B0iF800..HI;F800..MID..IDN202403

LT.GRAY,TRIM10

main62472-BZ380-B0iF800..MID..IDN;F800..E4AT..HI..VN;F800..HI..(GEN,IDN,PH)201712-202403

LT.GRAY,TRIM1#

main62472-BZ380-C0iF800..HI;F800..MID..IDN202403

BLACK,TRIM11

main62472-BZ400-B0iF800..MID..PH201804-202011

LT.GRAY,TRIM1#

62551GCLIP

main9004A-46302iF800201712

62581FCLIP (FOR QUARTER PILLAR GARNISH)

main9004A-46338iF800201910

main90467-10161iF800201712-201910

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-BZ280-C0iF800..HI201712

BLACK,TRIM1#

main64730-BZ290-C0iF800..MID..(GCC,GEN,IDN,VN)201712

BLACK,TRIM1#

main64730-BZ320-C0iF800..MID..PH201804-202011

BLACK,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-BZ260-C0iF800..HI201712

BLACK,TRIM1#

main64740-BZ290-C0iF800..MID..(GCC,GEN,IDN,VN)201712

BLACK,TRIM1#

main64740-BZ320-C0iF800..MID..PH201804-202011

BLACK,TRIM1#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main9004A-46338iF800201910

main90467-10161iF800201712-201910

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-BZ170-C0iF800201712

BLACK,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-BZ170-C0iF800201712

BLACK,TRIM1#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-BZ220-C0iF800201712

BLACK,TRIM1#

67918DPLATE, REAR DOOR SCUFF, LH

main67918-BZ220-C0iF800201712

BLACK,TRIM1#

75577CBRACKET, ROOF SIDE GARNISH

main61719-BZ050iF800..MID..PH201712-202305

61719BZ060

main61719-BZ060

61729BZ070REINFORCEMENT, QUARTER PANEL, FRONT LH

main61729-BZ070

9004A11383

main9004A-11383

9167380616

main91673-80616

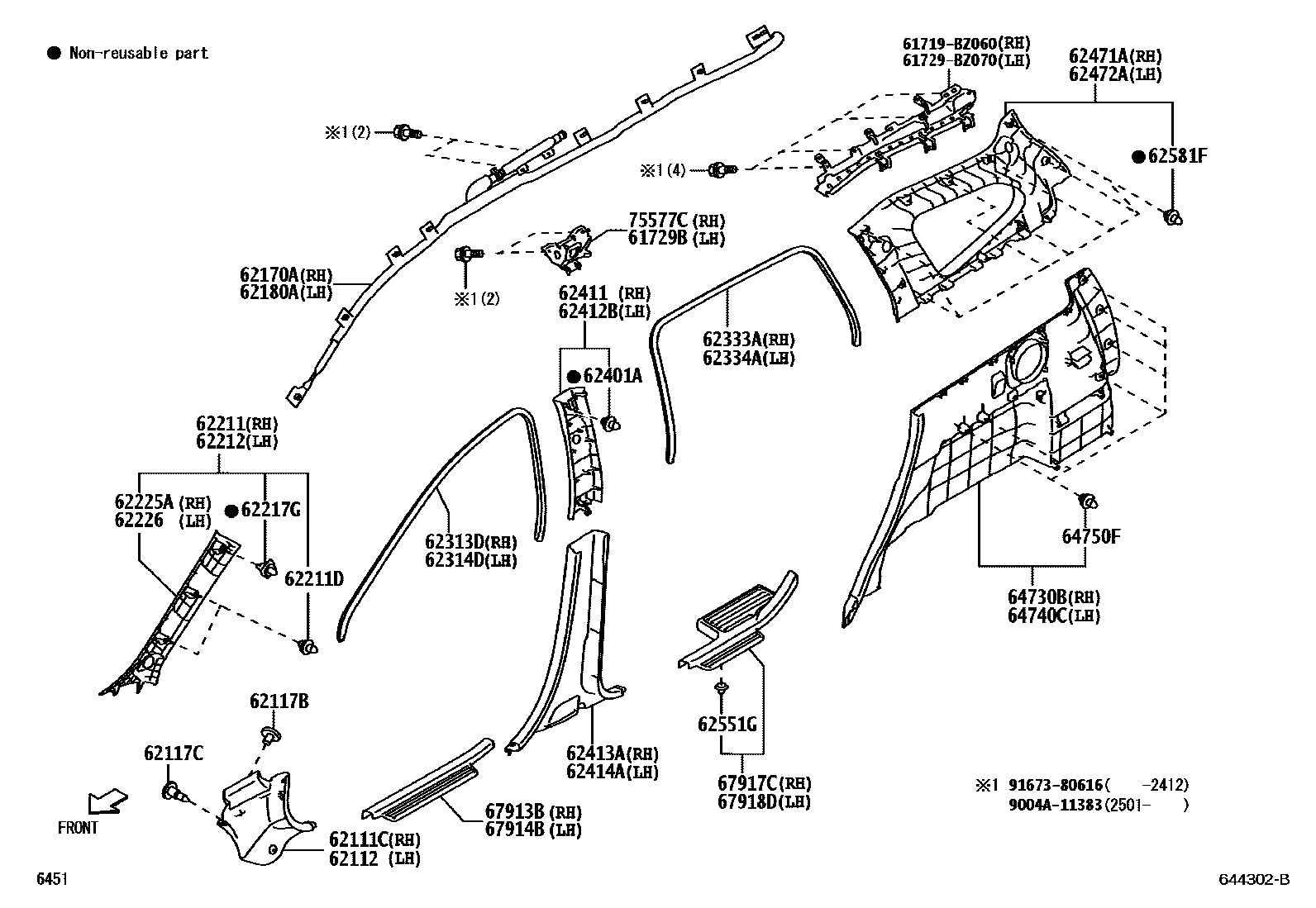

38 parts on this diagram · 1 diagram in section
