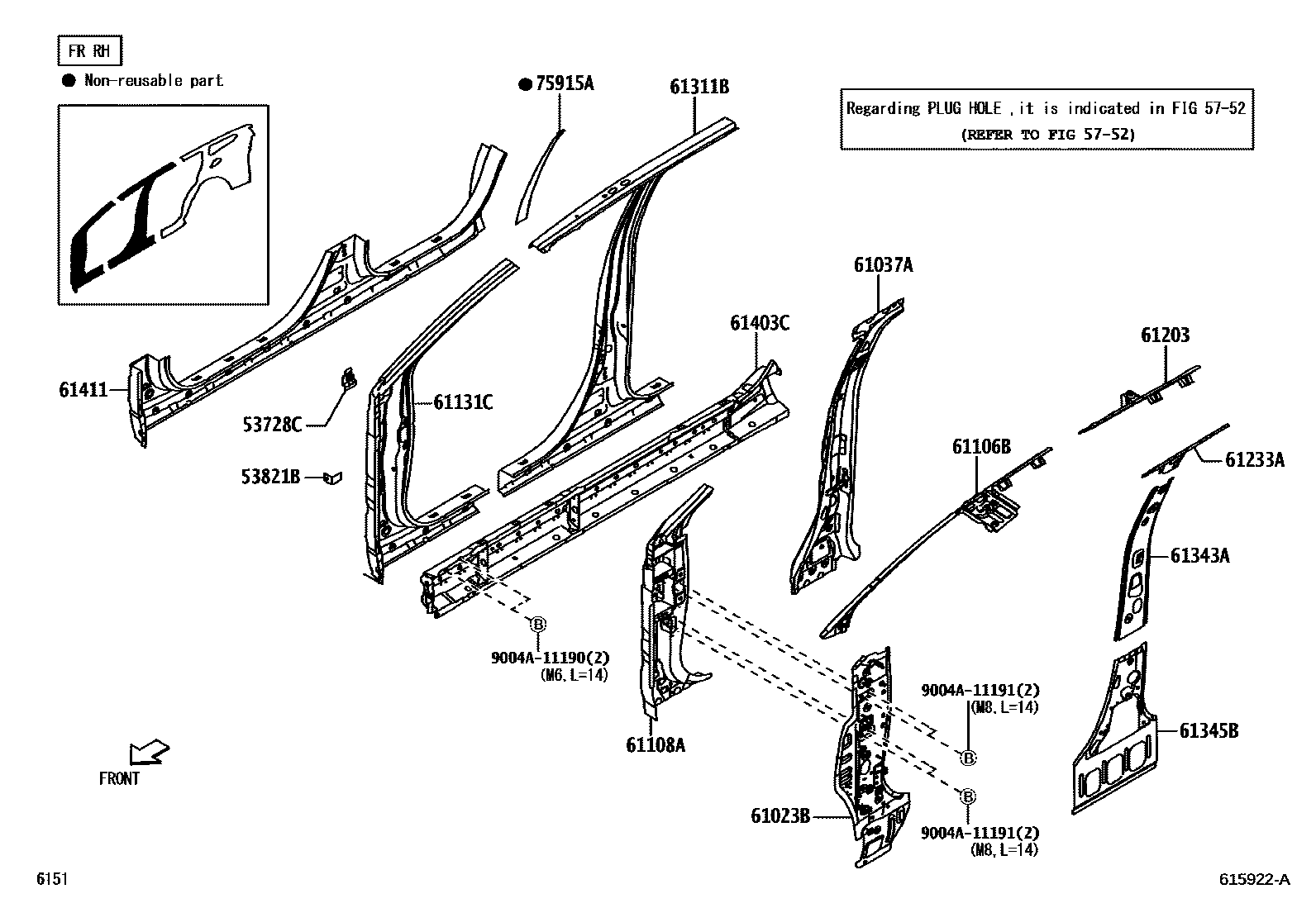

SIDE MEMBER

0001 1FR RH 0002 1RR RH 0003 1RR RH 0004 1FR LH 0005 1RR LH 0006 1RR LH 0007 1

53728CBRACKET, FENDER APRON, RH

main53728-BZ110iF800..HI..PH;F800..GCC,GEN,IDN,VN201712-202305

53821BBRACKET, FRONT FENDER, REAR RH

main58139-BZ070iF800..MID..PH201712-202305

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ390iF800..RHD201712

main61023-BZ410iF800..MID..PH201804-202305

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ300iF800..MID..PH201712-202305

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-BZ070iF800..MID..PH201712-202305

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-BZ230iF800..MID..PH201712-202305

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ480iF800..MID..PH201712-202305

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-BZ120iF800..MID..PH201712-202305

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-BZ100iF800..HI..PH;F800..GCC,GEN,IDN,VN201712-202305

61311BPILLAR, CENTER BODY, OUTER RH

main61311-BZ330iF800..HI..PH;F800..GCC,GEN,IDN,VN201712-201905

W/HOLE FOR NAMEPLATE

sub61311-BZ370

main61311-BZ340iF800..MID..PH201804-201905

W/HOLE FOR NAMEPLATE

sub61311-BZ380

main61311-BZ370iF800..HI..PH;F800..GCC,GEN,IDN,VN201905

L/HOLE FOR NAMEPLATE

main61311-BZ380iF800..MID..PH201905-202305

L/HOLE FOR NAMEPLATE

61343APILLAR, CENTER BODY, INNER RH

main61343-BZ200iF800..MID..PH201712-202305

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-BZ150iF800..MID..PH201712-202305

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-BZ150iF800..MID..PH201712-202305

61411PANEL, ROCKER, OUTER RH

main61411-BZ340iF800201712-201905

W/HOLE FOR NAMEPLATE

sub61411-BZ400

main61411-BZ400iF800..MID..PH201905-202305

L/HOLE FOR NAMEPLATE

75915ATAPE, BLACK OUT CENTER PILLAR, RH

main75915-BZ060-C0iF800..MID..PH201712-202305

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,4T3 ,R54 ,W09

9004A11190

main9004A-11190

9004A11191

main9004A-11191

18 parts on this diagram · 7 diagrams in section
