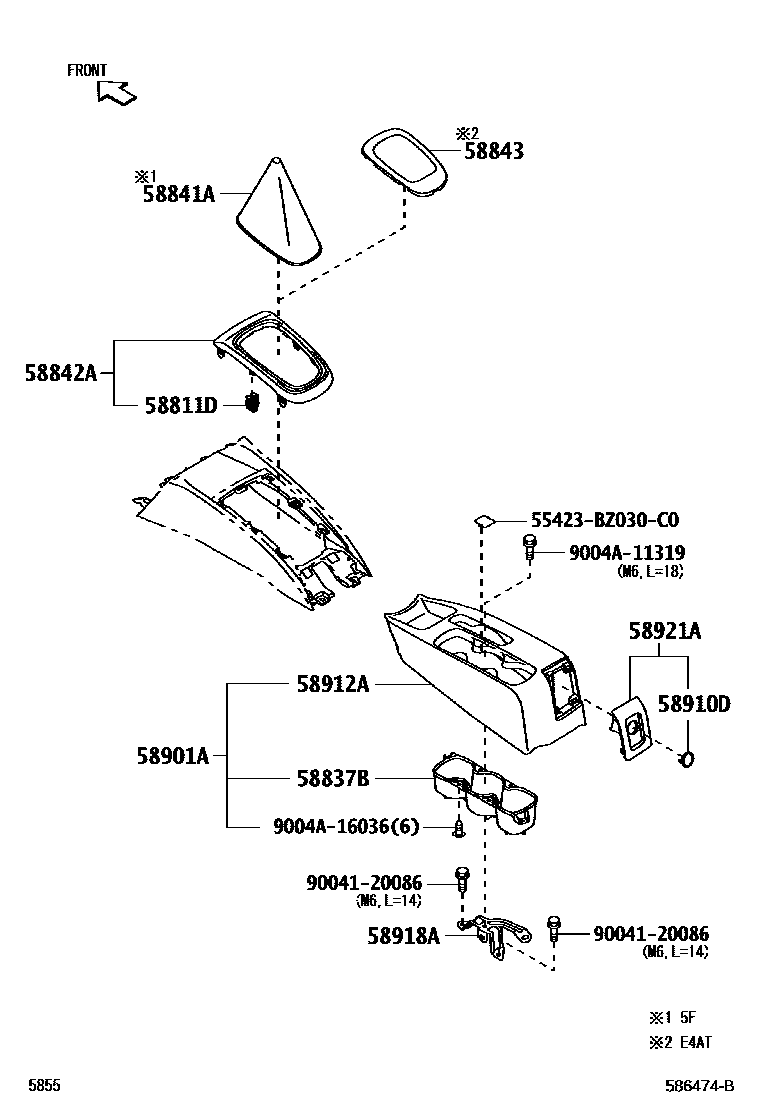

CONSOLE BOX & BRACKET

58811DCLIP(FOR CONSOLE BOX)

main90467-05171iF800201712

FOR FRONT

58837BBOX, CONSOLE CUP HOLDER

main58837-BZ010-C0iF800201712

BLACK,TRIM1#

58841ACOVER, SHIFTING HOLE

main58841-BZ170-C1iF800..5F201712

SILVER,TRIM1#

58842AFRAME, SHIFTING HOLE

main58842-BZ150-B0iF800201712

SILVER,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-BZ090-C1iF800..E4AT201712

BLACK,TRIM1#

sub58843-BZ090

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-BZ040-C0iF800201712

BLACK,TRIM1#

58910DCLIP(FOR CONSOLE BOX)

main90467-05171iF800201712

FOR REAR

58912ABOX, REAR CONSOLE

main58911-BZ140-C0iF800201712

BLACK,TRIM1#

58918ABRACKET, BOX SUPPORT

main58918-BZ020iF800201712

58921APANEL, REAR CONSOLE, UPPER

main58921-BZ050-C0iF800201712

BLACK,TRIM1#

55423BZ030C0PANEL, STEREO PLAYER FINISH

main55423-BZ030C0

9004120086

main90041-20086

9004A11319

main9004A-11319

9004A16036

main9004A-16036

14 parts on this diagram · 1 diagram in section
