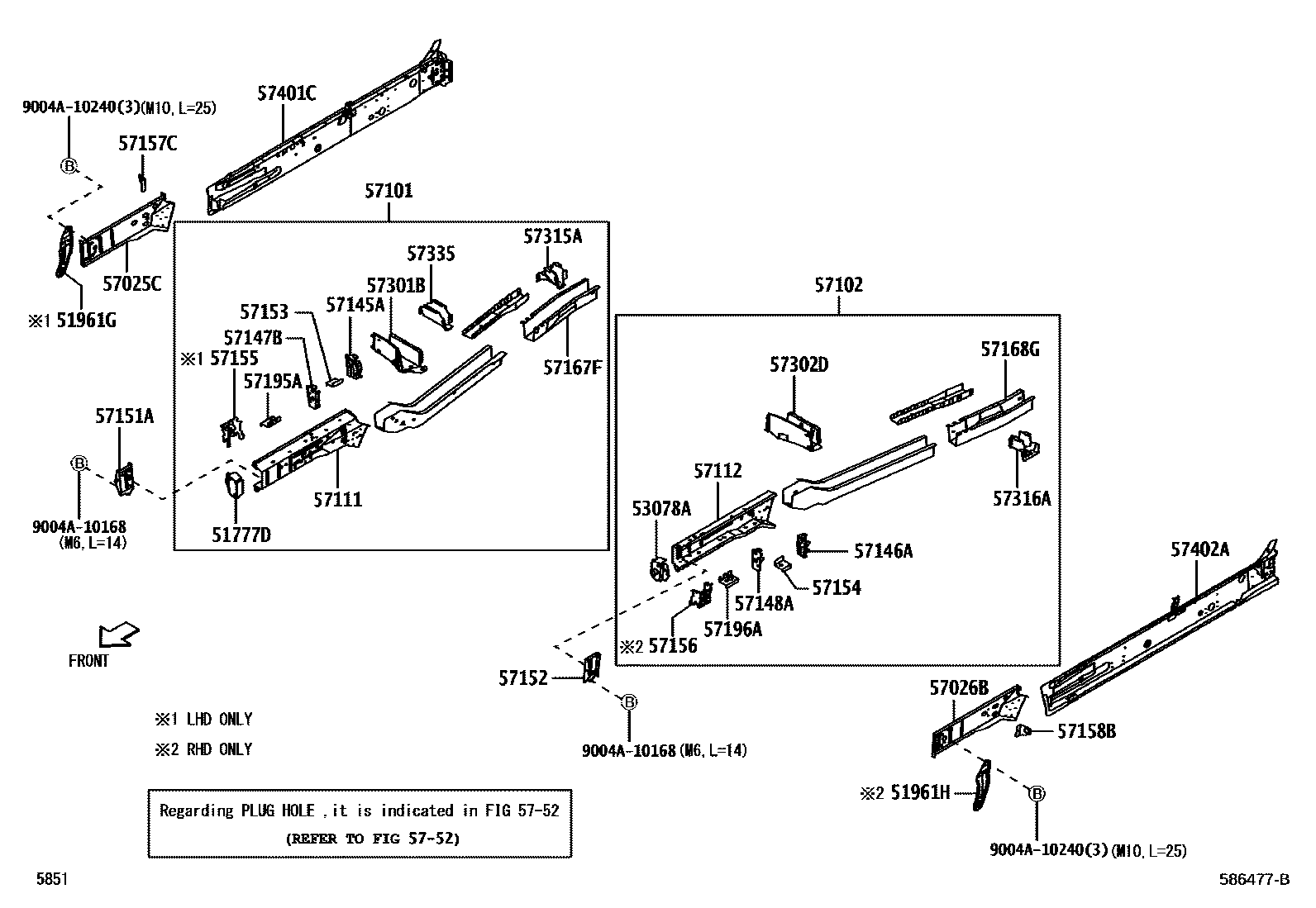

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FR SIDE MEMBER 0002 1FR FLOOR PAN

51777DARM, FRONT STEP, RH

main52141-BZ060iF800..RHD201712

51961GHOOK, FRONT RH

main51961-BZ200iF800..MID..PH201804-202305

51961HHOOK, FRONT LH

main51962-BZ060iF800..RHD201712

53078AEXTENSION SUB-ASSY, FRONT FENDER APRON, LH

main53078-BZ090iF800..MID..PH201712-202305

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57113-BZ020iF800201712

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57114-BZ030iF800201712

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ580iF800..RHD201712

main57101-BZ590iF800..MID..PH201804-202305

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ660iF800..RHD201712

main57102-BZ670iF800..5F..HI..PH;F800..LHD..5F..(GCC,GEN,VN)201804

main57102-BZ680iF800..E4AT..HI..PH;F800..LHD..E4AT..(GCC,GEN,VN)201804

57111MEMBER, FRONT SIDE, RH

main57111-BZ211iF800..MID..PH201712-202305

57112MEMBER, FRONT SIDE, LH

main57112-BZ231iF800..MID..PH201712-202305

57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main51501-BZ060iF800..MID..PH201712-202305

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main51502-BZ070iF800..MID..PH201712-202305

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-BZ010iF800..MID..PH201712-202305

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-BZ010iF800..MID..PH201712-202305

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-BZ110iF800..MID..PH201712-202305

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-BZ130iF800..MID..PH201712-202305

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-BZ020iF800..MID..PH201712-202305

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-BZ070iF800..MID..PH201712-202305

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57156-BZ020iF800..MID..PH201804-202305

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-BZ020iF800..RHD201712

57157CBRACKET, FLEXIBLE HOSE, FRONT RH

main57157-BZ010iF800201712

57158BBRACKET, FLEXIBLE HOSE, FRONT LH

main57158-BZ010iF800201712

57167FREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH

main57167-BZ011iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

57168GMEMBER, FRONT FLOOR, LH

main57168-BZ110iF800..MID..PH201712-202305

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-BZ050iF800..MID..PH201712-202305

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-BZ030iF800..MID..PH201712-202305

57301BOUTRIGGER SUB-ASSY, NO.1 RH

main57301-BZ090iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

57302DOUTRIGGER SUB-ASSY, NO.1 LH

main57302-BZ090iF800..5F..MID..PH201712-202305

main57302-BZ110iF800..E4AT..MID..PH201804-202305

57315AOUTRIGGER SUB-ASSY, NO.3 RH

main57307-BZ010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

57316AOUTRIGGER SUB-ASSY, NO.3 LH

main57308-BZ010iF800..MID..PH201712-202305

57335OUTRIGGER, NO.2 FRONT RH

main57335-BZ040iF800..MID..PH201712-202305

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-BZ370iF800..RHD201712

main57401-BZ380iF800..HI..PH;F800..LHD..(GCC,GEN,VN)201804

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-BZ370iF800..RHD201712

main57402-BZ380iF800..MID..PH201804-202305

5752

9004A10168

main9004A-10168

9004A10240

main9004A-10240

36 parts on this diagram · 2 diagrams in section
