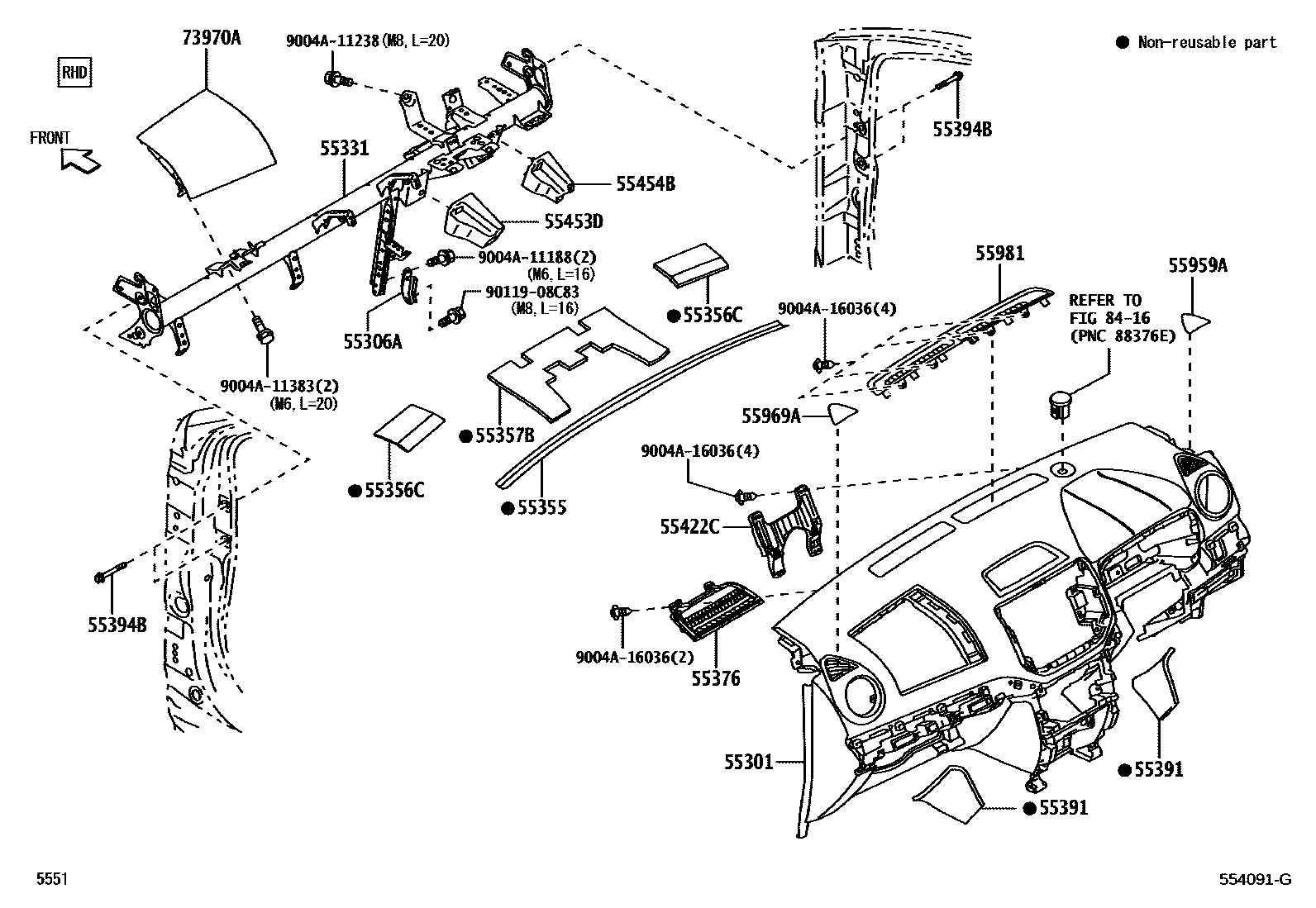

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ660-C0iF800..IDN201712

BLACK,TRIM1#

main55311-BZ670-C0iF800..PH201804

BLACK,TRIM1#

main55311-BZ680-C0iF800..LHD..(GCC,GEN,VN)201804

BLACK,TRIM1#

main55311-BZ720-C0iF800..RHD..GEN201804

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-BZ110iF800..RHD201712

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZ870iF800..RHD201712

main55305-BZ880iF800..5F..MID..PH201804-202305

main55305-BZ890iF800..E4AT..MID..PH201804-202305

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-BZ140iF800..MID..PH202008-202305

main55355-BZ100iF800201712-202007

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-BZ150iF800..MID..PH201712-202305

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-BZ120iF800..HI..PH;F800..GCC,GEN,IDN,VN201712-202305

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-BZ280iF800201712

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-BZ020iF800201712

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020iF800..MID..PH201712-202305

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-BZ070-C0iF800201712

BLACK,TRIM1#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ100iF800..MID..PH201712-202305

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ020iF800..RHD201712

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-BZ050-C0iF800..IDN,PH201712

BLACK,TRIM1#

55969ACOVER, DEFROSTER NOZZLE OPENING, NO.2

main55969-BZ030-C0iF800..IDN,PH201712

BLACK,TRIM1#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-BZ040-C0iF800..GCC,GEN,VN201804

BLACK,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ240-C0iF800..RHD201712

BLACK,TRIM1#

main73970-BZ250-C0iF800..LHD201804

BLACK,TRIM1#

8416

9004A11188

main9004A-11188

9004A11238

main9004A-11238

9004A11383

main9004A-11383

9004A16036

main9004A-16036

9011908C83

main90119-08C83

22 parts on this diagram · 6 diagrams in section
