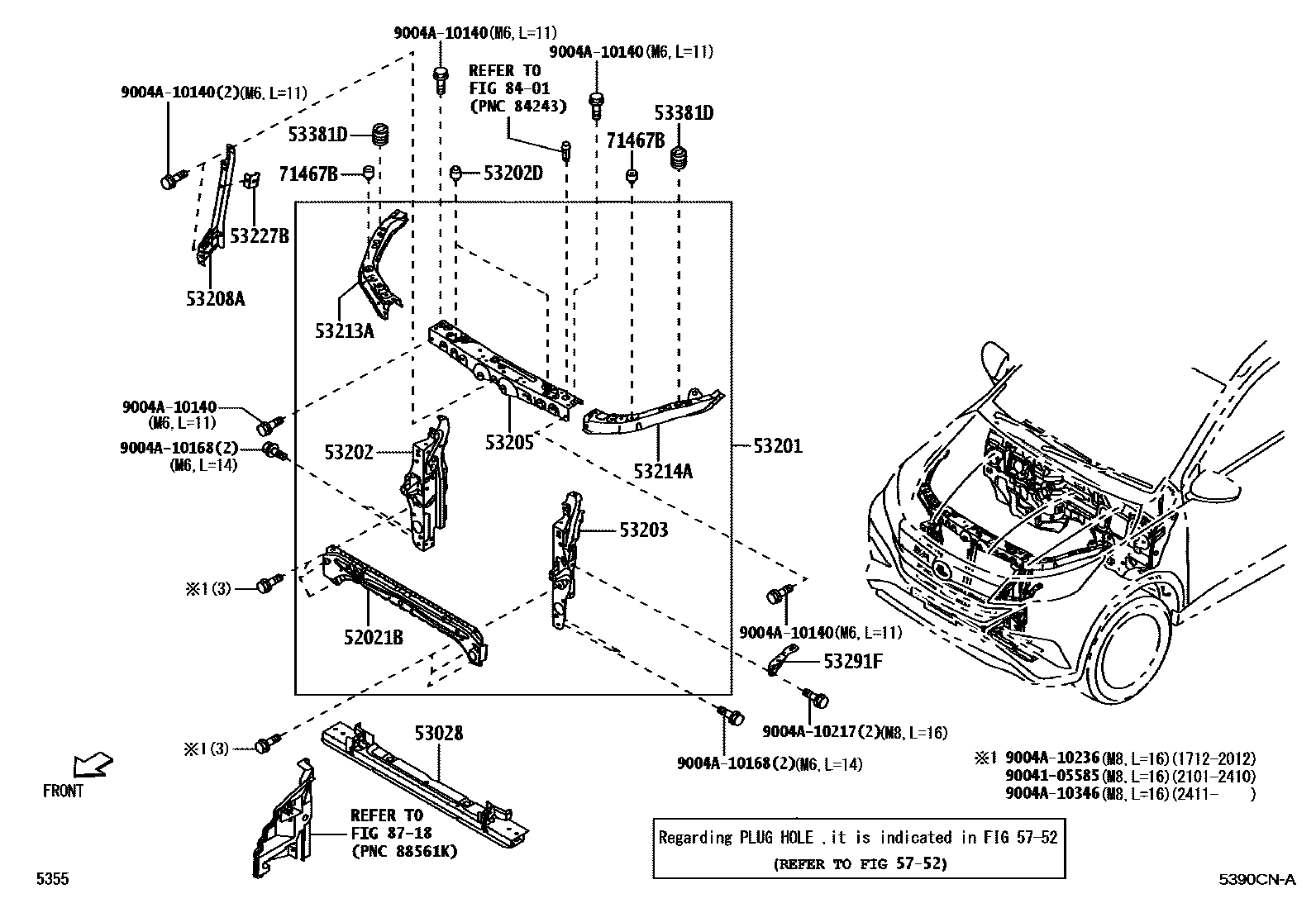

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-BZ190iF800201712

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ180iF800201712

53201SUPPORT SUB-ASSY, RADIATOR

main53201-BZ300iF800201712

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-BZ110iF800201712-201801

sub53202-BZ111

main53202-BZ111iF800201802

53202DCUSHION, RADIATOR SUPPORT

main9004A-54015iF800201712

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-BZ190iF800201712

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ190iF800201712

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-BZ120iF800201712

53213ASUPPORT, RADIATOR, UPPER RH

main53213-BZ090iF800201712

53214ASUPPORT, RADIATOR, UPPER LH

main53220-BZ030iF800201712

53227BPLATE, HOOD LOCK SUPPORT

main53227-BZ020iF800201712

53291FPLATE, RADIATOR SUPPORT

main53291-BZ040iF800201712

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-BZ010iF800201712

5752

71467BCUSHION, RADIATOR COVER TO HOOD

main9004A-54028iF800201712

8401

8718

9004105585

main90041-05585

9004A10140

main9004A-10140

9004A10168

main9004A-10168

9004A10217

main9004A-10217

9004A10236

main9004A-10236

9004A10346

main9004A-10346

23 parts on this diagram · 3 diagrams in section
