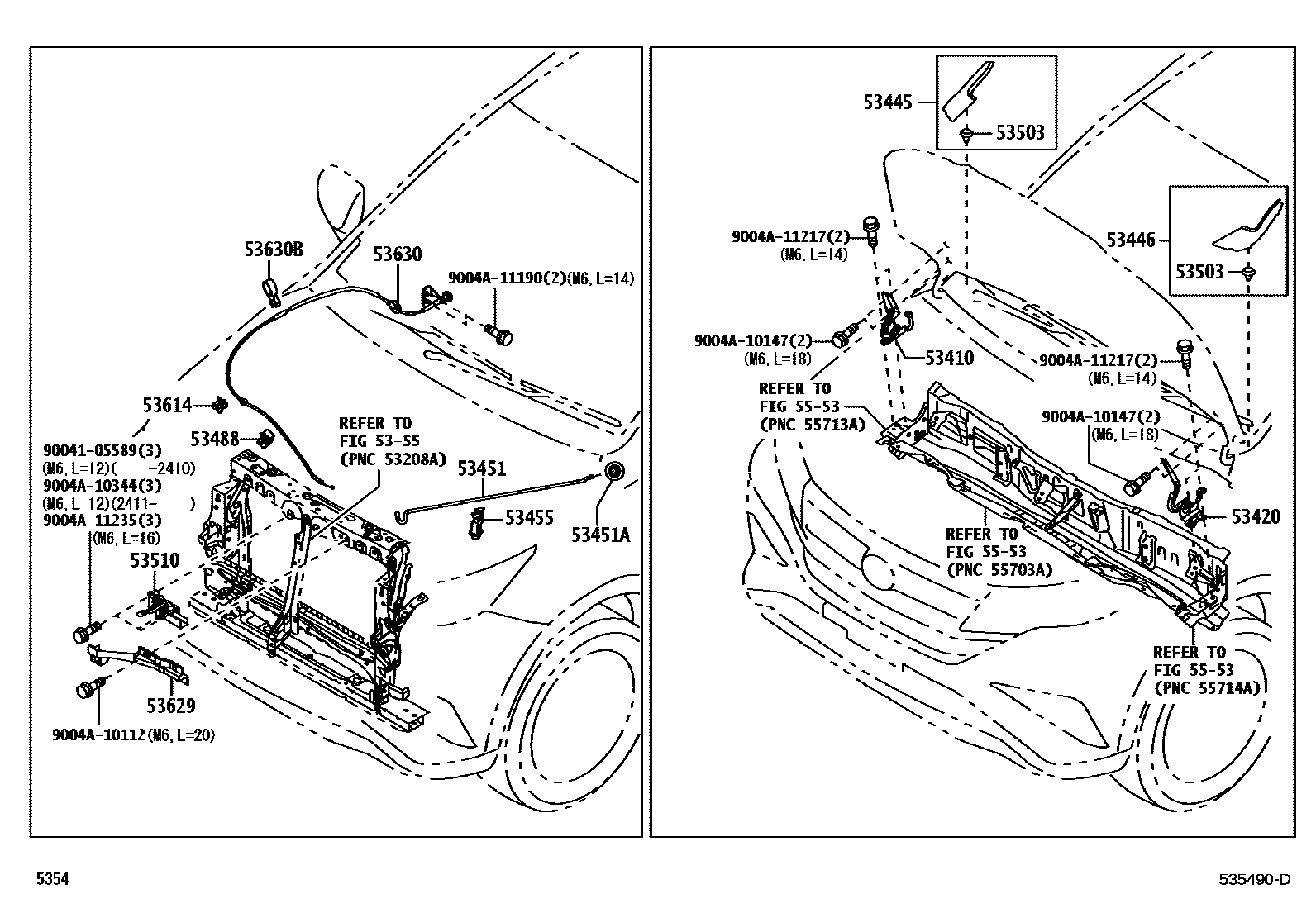

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-BZ070iF800..MID..PH201712-202305

53420HINGE ASSY, HOOD, LH

main53420-BZ070iF800..MID..PH201712-202305

53445COVER, HOOD HINGE, RH

main53445-BZ040iF800..MID..PH201804-202305

53446COVER, HOOD HINGE, LH

main53446-BZ040iF800..MID..PH201712-202305

53451ROD, HOOD SUPPORT

main53451-BZ210iF800..MID..PH201712-202305

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90044-80667iF800..MID..PH201712-202305

53455CLAMP, HOOD SUPPORT ROD

main53455-BZ220iF800..MID..PH201712-202305

53488CLIP, HOOD SUPPORT PIN

main90467-09043iF800..MID..PH201712-202305

53503RETAINER SUB-ASSY, HOOD LOCK DOWEL

main67771-BZ140×2iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

53510LOCK ASSY, HOOD

main53510-BZ060iF800..RHD201712

main53510-BZ340iF800..MID..PH201804-202305

5355

53614CLAMP, HOOD LOCK CONTROL CABLE

main90044-64659iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

53629COVER, HOOD LOCK CONTROL CABLE

main53639-BZ050iF800..GCC201804-202401

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ330iF800..RHD201712

main53630-BZ350iF800..MID..PH201804-202305

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main9004A-46333iF800..MID..PH201712-202305

5553

9004105589

main90041-05589

9004A10112

main9004A-10112

9004A10147

main9004A-10147

9004A10344

main9004A-10344

9004A11190

main9004A-11190

9004A11217

main9004A-11217

9004A11235

main9004A-11235

23 parts on this diagram · 1 diagram in section
