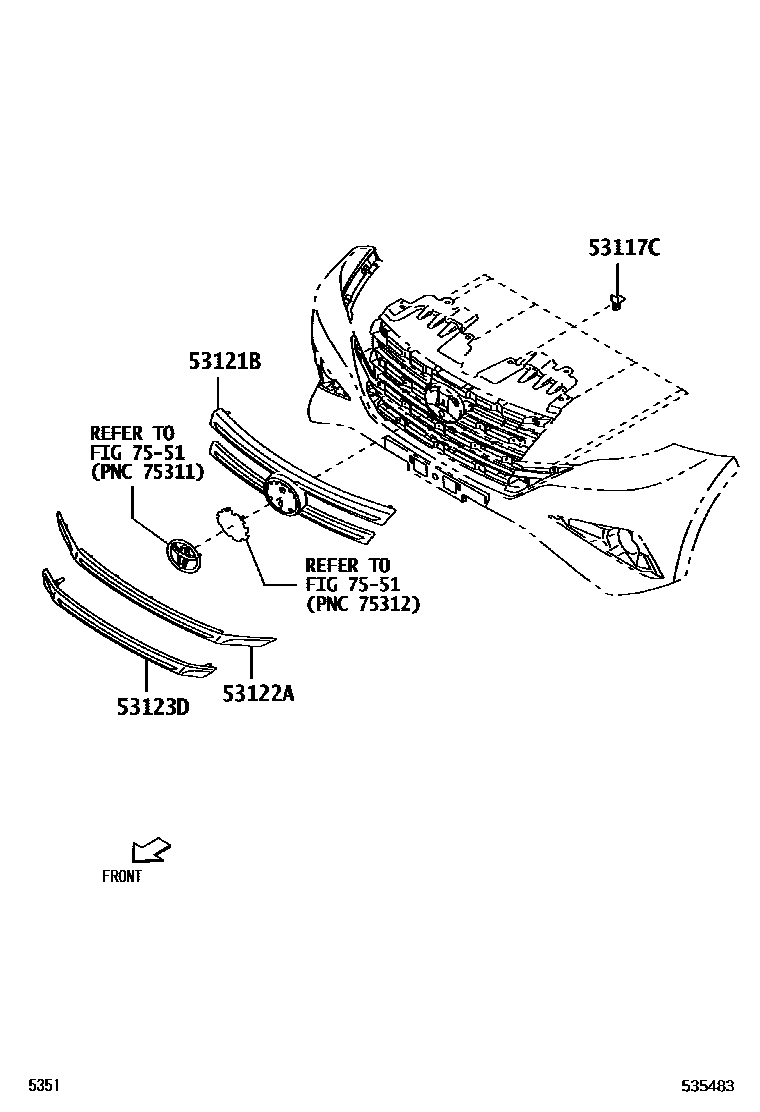

RADIATOR GRILLE

53117CRETAINER, RADIATOR GRILLE, NO.1

main76854-BZ010iF800..MID..PH201712-202305

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-BZ460iF800..MID..PH201804-202305

main53121-BZ470iF800..HI;F800..MID..IDN201712

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-BZ170iF800..MID..PH201804-202305

main53122-BZ180iF800..HI;F800..MID..IDN201712

53123DMOULDING, RADIATOR GRILLE, LOWER

main53123-BZ190iF800..MID..(GCC,GEN,VN)201804-202305

main53123-BZ200iF800..HI;F800..MID..IDN201712

7551

5 parts on this diagram · 1 diagram in section
