SPARE WHEEL CARRIER

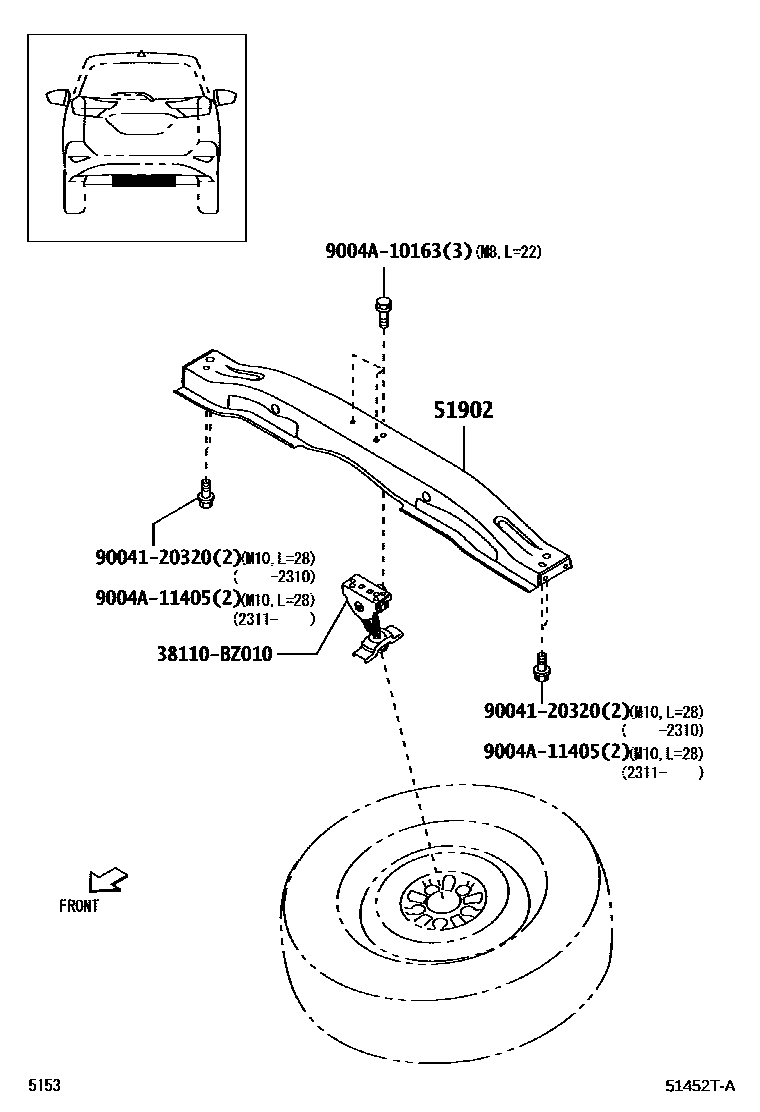

Parts diagram

51902CARRIER SUB-ASSY, SPARE WHEEL

main51903-BZ170i201712

38110BZ010WINCH ASSY

main38110-BZ010

9004120320

main90041-20320

9004A10163

main9004A-10163

9004A11405

main9004A-11405

5 parts on this diagram · 1 diagram in section
