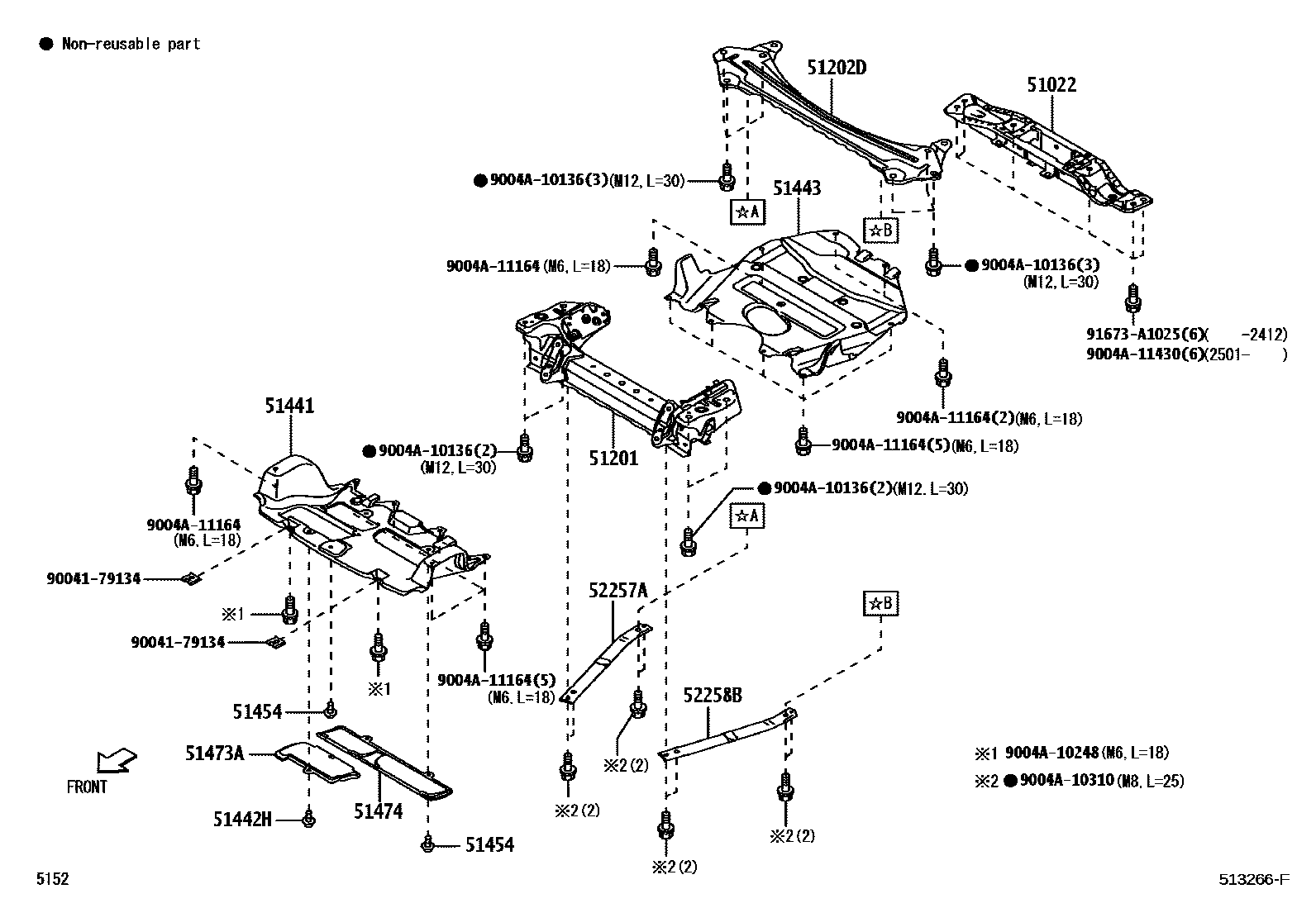

SUSPENSION CROSSMEMBER & UNDER COVER

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-BZ030iF800..MID..PH201712-202305

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-BZ140iF800201712-201808

sub51210-BZ142

main51210-BZ142iF800..MID..PH201809-202305

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-BZ140iF800..MID..PH201712-202305

51441COVER, ENGINE UNDER, NO.1

main51441-BZ240iF800..MID..PH201712-202305

51442HCLIP, ENGINE UNDER COVER, NO.2

main9004A-46323iF800..MID..PH201712-202305

51443COVER, ENGINE UNDER, REAR RH

main51443-BZ080iF800..MID..PH201712-202305

51454CLIP

main9004A-46323iF800..MID..PH201712-202305

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-BZ020iF800..MID..PH201712-202305

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-BZ030iF800..MID..PH201712-202305

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-BZ050iF800..MID..PH201712-202305

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-BZ050iF800..MID..PH201712-202305

9004179134

main90041-79134

9004A10136

main9004A-10136

9004A10248

main9004A-10248

9004A10310

main9004A-10310

9004A11164

main9004A-11164

9004A11430

main9004A-11430

91673A1025

main91673-A1025

18 parts on this diagram · 1 diagram in section
