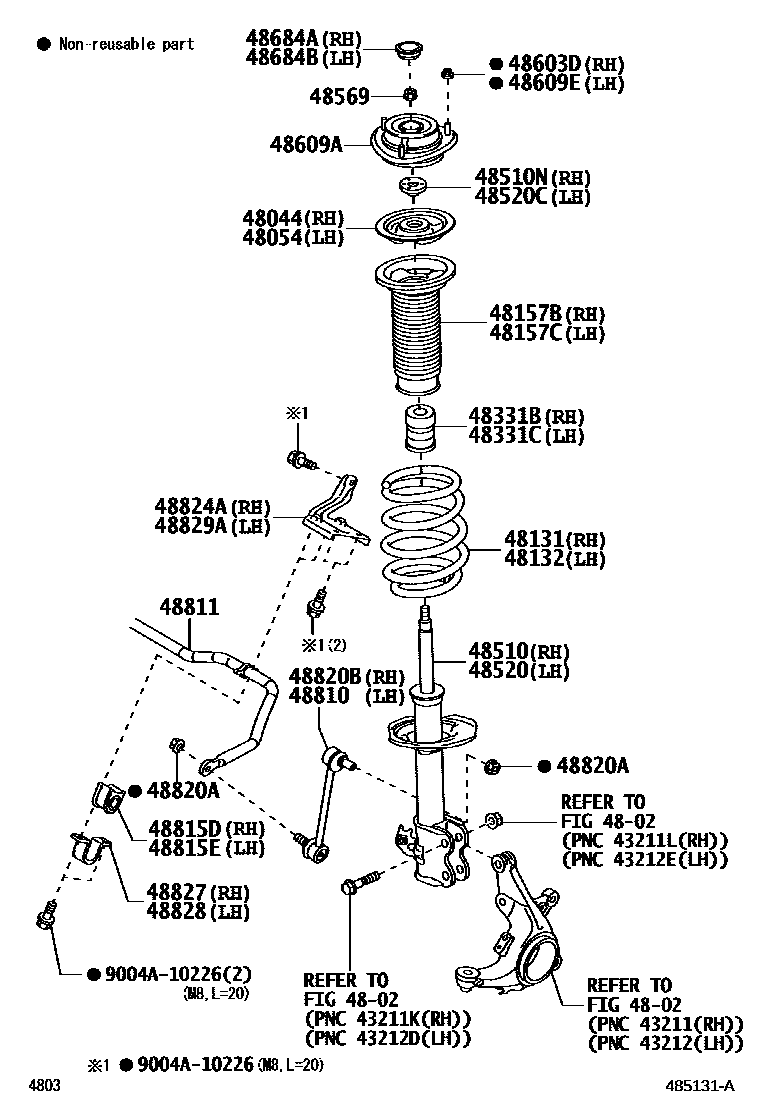

FRONT SPRING & SHOCK ABSORBER
4802
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
RH
48054SEAT SUB-ASSY, FRONT SPRING, NO.2
LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-BZD00
MARK 48510-BZF40
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-BZ840
MARK 48520-BZB50
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48569NUT, SHOCK ABSORBER PISTON
JAPAN SOURCED PARTS
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9004A10226
main9004A-10226
30 parts on this diagram · 1 diagram in section
