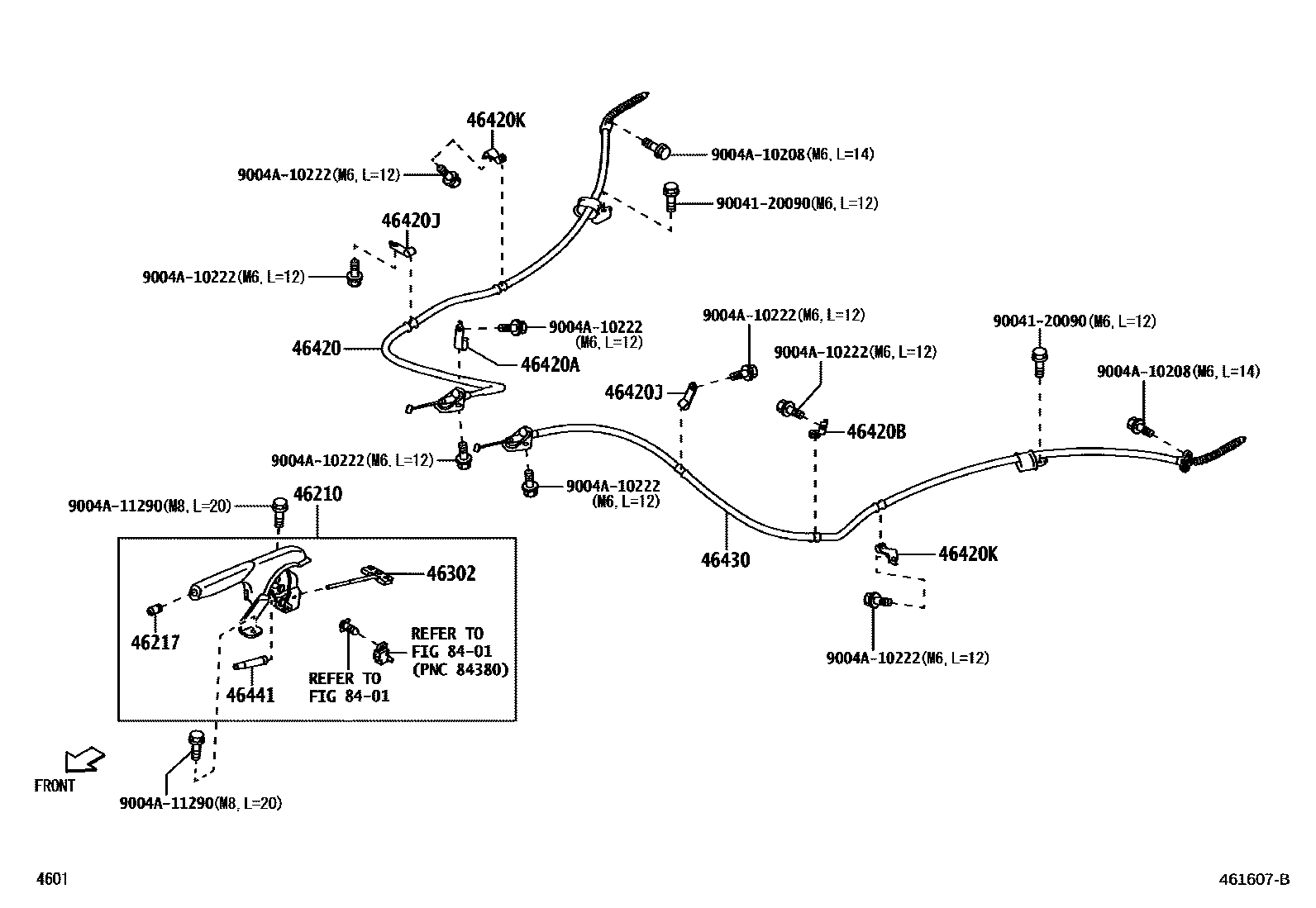

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-BZ150-C1iF800201712

BLACK,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-BZ010iF800201712

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-87Z03iF800201712

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ230iF800..MID..PH201712-202305

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46467-BZ010iF800..MID..PH201712-202305

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main9004A-46126iF800..MID..PH201712-202305

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main9004A-46133iF800..MID..PH201712-202305

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main9004A-46289iF800..MID..PH201712-202305

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ230iF800..MID..PH201712-202305

46441NUT, WIRE ADJUSTING, NO.1

main46441-87Z04iF800201712

8401

9004120090

main90041-20090¥60

9004A10208

main9004A-10208¥110

9004A10222

main9004A-10222

9004A11290

main9004A-11290

15 parts on this diagram · 1 diagram in section
