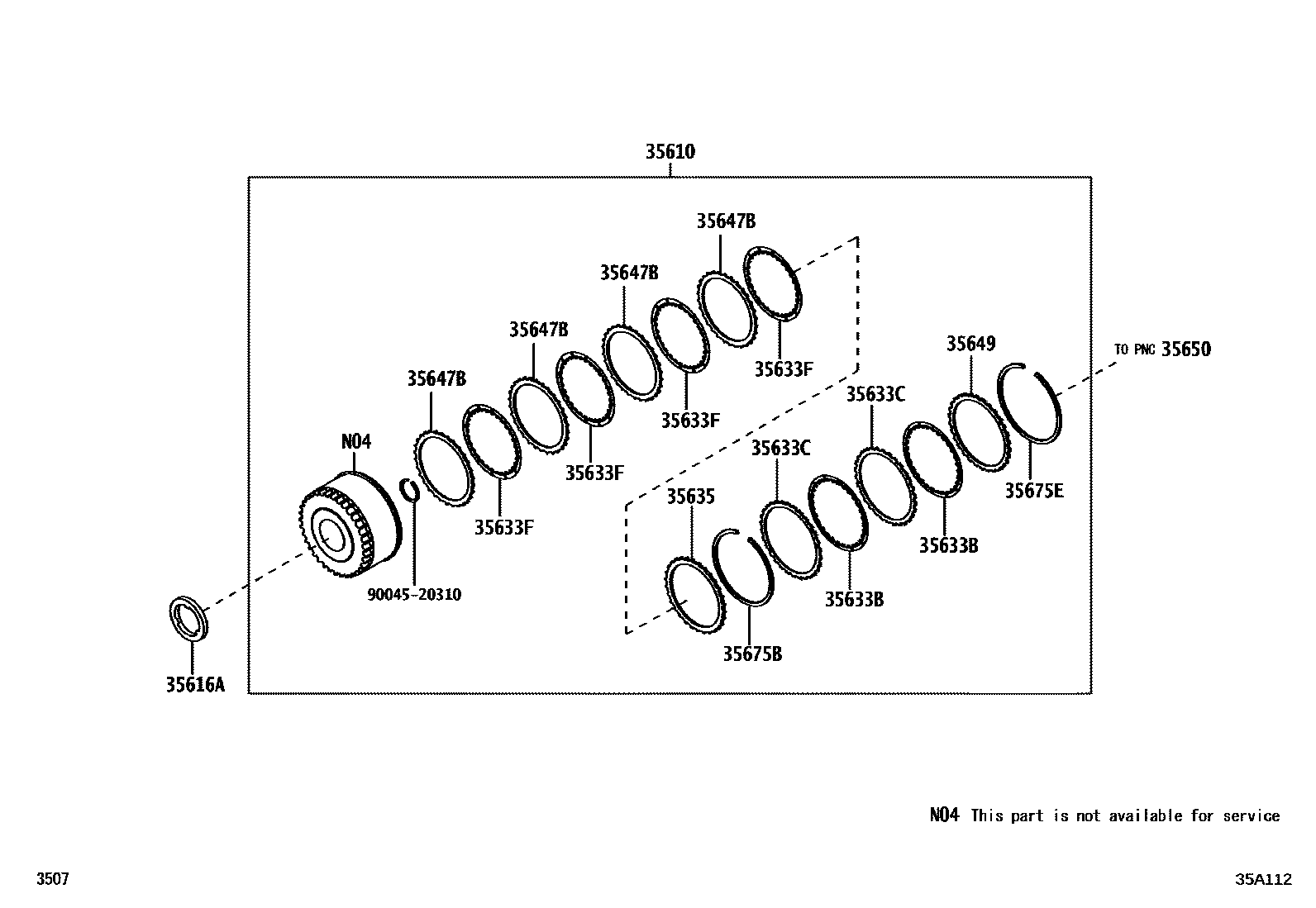

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0002 1

35610CLUTCH ASSY, FRONT MULTIPLE DISC

main35610-B1030iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

35616ABEARING, FRONT CLUTCH THRUST

main90043-74043iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

T=3.81

main90043-74044iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

T=3.41

main90043-74045iF800..E4AT..MID..PH201712-202305

T=4.21

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-B1010×2iF800..E4AT..MID..PH201712-202305

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-97206×2iF800..E4AT..MID..PH201712-202305

35633FDISC, CLUTCH (FOR FRONT CLUTCH)

main35667-97206×4iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

35635FLANGE, FORWARD CLUTCH

main35635-97201iF800..E4AT..MID..PH201712-202305

T=3.0

35647BPLATE, CLUTCH, NO.2

main35647-97204×4iF800..E4AT..MID..PH201712-202305

35649FLANGE, REVERSE CLUTCH

main35675-97201iF800..E4AT..MID..PH201712-202305

T=3.0

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-B1020iF800..E4AT..MID..PH201712-202305

35675FLANGE, REAR CLUTCH

main35689-B1010×2iF800..E4AT..MID..PH201712-202305

T=3.0

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90045-21164iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

T=1.5

main90045-21166iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

T=1.75

main90045-21167iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

T=2.0

main90045-21168iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712

T=2.25

main90045-21169iF800..E4AT..MID..PH201712-202305

T=2.5

35675ERING, HOLE SNAP (FOR REAR CLUTCH FLANGE)

main90045-21165iF800..E4AT..MID..PH201712-202305

9004520310

main90045-20310

13 parts on this diagram · 2 diagrams in section
