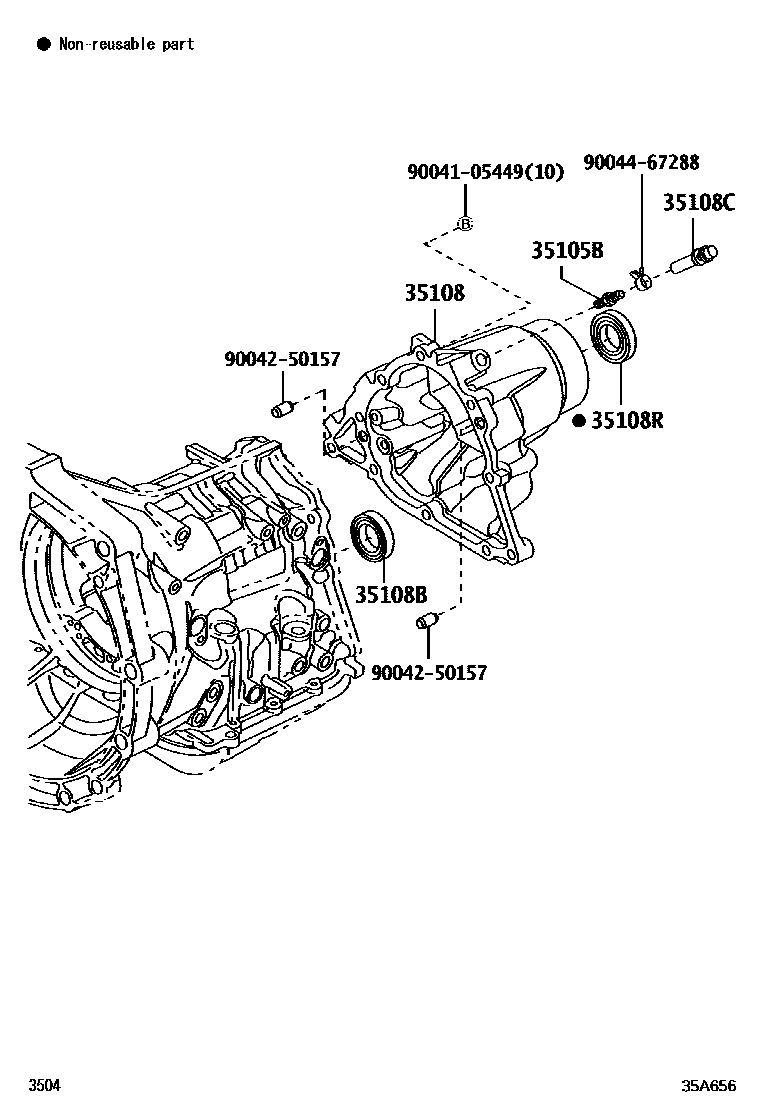

EXTENSION HOUSING (ATM)

35105BPLUG, BREATHER

main90049-15054iF800..E4AT..MID..PH201712-202305

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-B1010iF800..E4AT..MID..PH201712-202305

35108BBEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90043-63277iF800..E4AT..MID..PH201712-202305

35108CPLUG (FOR AUTOMATIC EXTENSION HOUSING)

main35120-B0020iF800..E4AT..MID..PH201712-202305

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90043-11285iF800..E4AT..MID..PH201712-202305

9004105449

main90041-05449

9004250157

main90042-50157

9004467288

main90044-67288

8 parts on this diagram · 1 diagram in section
